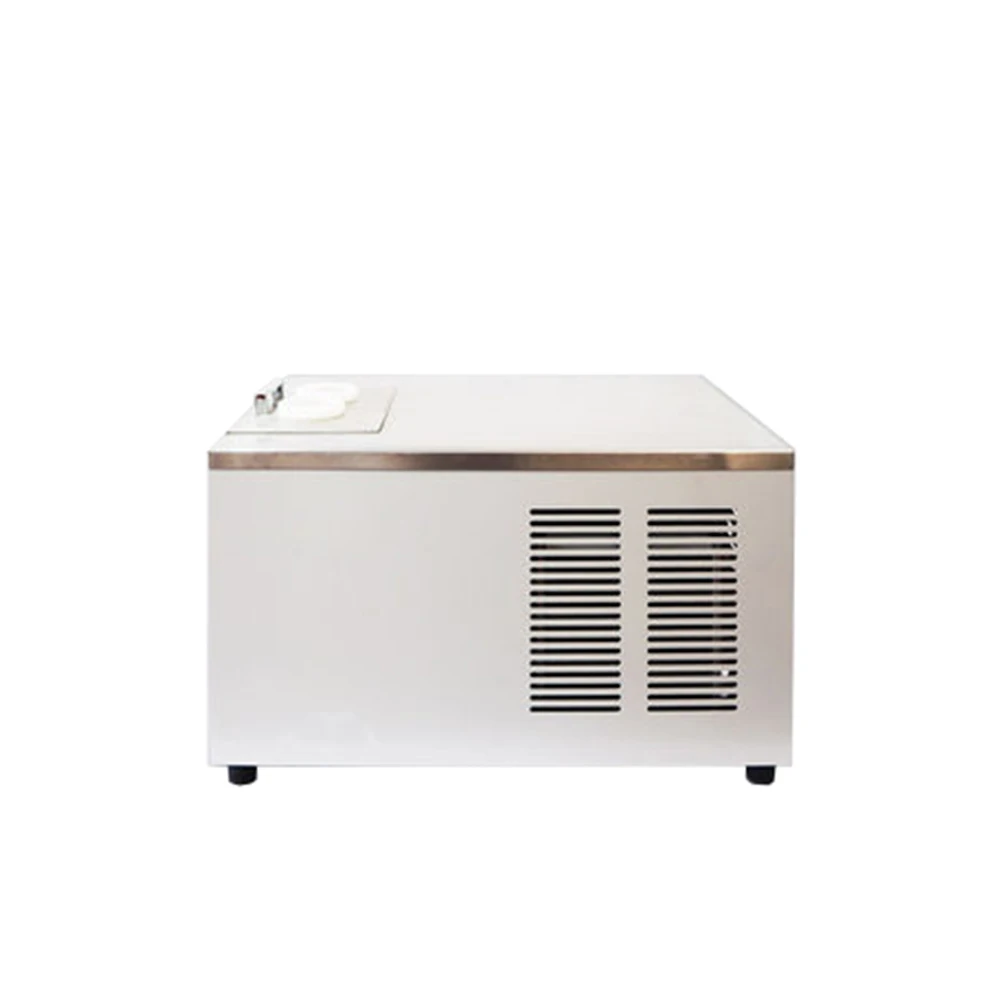

NADE SYD-510G Laboratory Semi-automatic Low Temperature Solidifying Point Tester of petroleum products

  • Zhejiang, China
  • NADE
  • AC(220±10%)V, 50Hz
  • Two baths in one chamber
  • Ambient to -70℃
  • ±0.5℃
  • New-type refrigeration compressor
  • ≤30℃
  • ≤85%
  • 1000W
  • 620mm*460mm*355mm

Product Description

Product Description

The instrument is designed and made as per standard of People's Republic of China GB/T510 Standard Test Method for Solidifying Point of Petroleum Oils. This instrument adopts a new type compressor, advanced temperature controller and special refrigeration bath.The cooling effect is good and temperature control accuracy is high. The temperature in bath is uniform. It is suitable to determine solidifying point of petroleum products. It is widely used in oil exploitation companies, petroleum manufacturers, petroleum users, colleges and scientific research institutes.

Feature

1. The material of workbench is stainless steel. It has two cold bats in one chamber. The cold baths are equal in temperature.

2. It adopts special technology. It is no need to use coolant liquid in cold chamber. The cooling rate is fast and efficiency is high. The temperature in cold bath is uniform and it can reach -70℃.The accuracy can reach ±0.5℃.

3. The instrument adopts desk type structure. The design is simple and easy to use. Operator can do solidifying point test as long as buying this instrument.

Specification

Model

SYD-510G

Power supply

AC(220±10%)V,50Hz

Working chamber

Two baths in one chamber. The temperatures are the same.

Temperature range

Ambient to -70℃

Temperature control accuracy

±0.5℃

Refrigeration

New-type refrigeration compressor

Ambient temperature

≤30

Relative humidity

≤85%

Maximum power consumption

1000W

Dimension

620mm×460mm×355mm

NADE SYD-510G Laboratory Semi-automatic Low Temperature Solidifying Point Tester of petroleum products NADE SYD-510G Laboratory Semi-automatic Low Temperature Solidifying Point Tester of petroleum products NADE SYD-510G Laboratory Semi-automatic Low Temperature Solidifying Point Tester of petroleum products NADE SYD-510G Laboratory Semi-automatic Low Temperature Solidifying Point Tester of petroleum products NADE SYD-510G Laboratory Semi-automatic Low Temperature Solidifying Point Tester of petroleum products

Optional accessories

NADE SYD-510G Laboratory Semi-automatic Low Temperature Solidifying Point Tester of petroleum products LC-2 Cold Filter Plugging Point Filter(2006 Standard)

Notes:

1. The reagent and equipments for installing the instrument are supplied by end-users themselves.

2. The thermometer needs to be purchased by the end user. Parameter: (-80~60)℃ scale mark 1℃,1 piece.

3. The usage,management and saving of poisonous and harmful reagent,pls operate according to the relative principle.

4. PLS read the operation manual and industry standard before using the instrument.

Other models:

NADE SYD-510G Laboratory Semi-automatic Low Temperature Solidifying Point Tester of petroleum products NADE SYD-510G Laboratory Semi-automatic Low Temperature Solidifying Point Tester of petroleum products

SYD-510-1 SYD-510Z-1

NADE SYD-510G Laboratory Semi-automatic Low Temperature Solidifying Point Tester of petroleum products NADE SYD-510G Laboratory Semi-automatic Low Temperature Solidifying Point Tester of petroleum products

SYD-2430A SYD-3535Z

Packaging & Shipping

NADE SYD-510G Laboratory Semi-automatic Low Temperature Solidifying Point Tester of petroleum products NADE SYD-510G Laboratory Semi-automatic Low Temperature Solidifying Point Tester of petroleum products

Company Information

NADE SYD-510G Laboratory Semi-automatic Low Temperature Solidifying Point Tester of petroleum products

NADE SYD-510G Laboratory Semi-automatic Low Temperature Solidifying Point Tester of petroleum products

Our Services

NADE SYD-510G Laboratory Semi-automatic Low Temperature Solidifying Point Tester of petroleum products

FAQ
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.

Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.

Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.

Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
