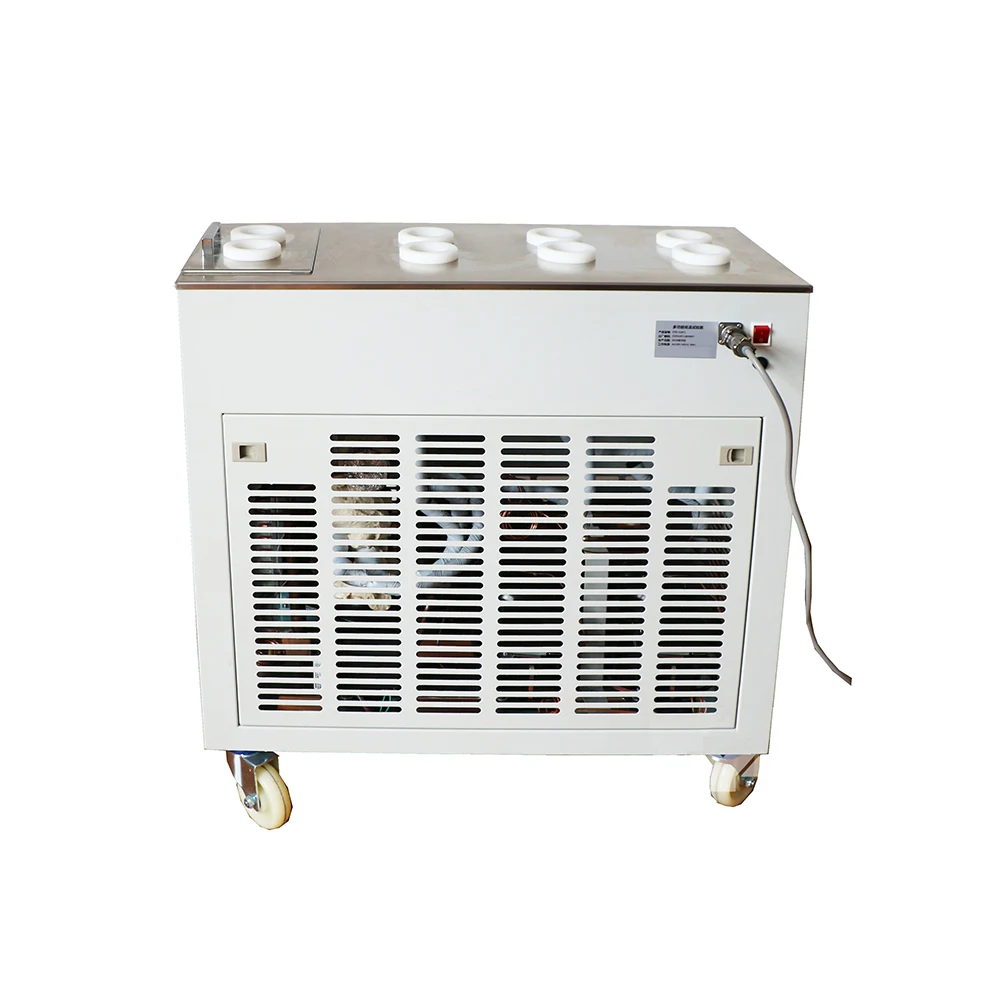

NADE SYD-510F1 Laboratory Multifunctional Low-temperature Tester(Touch screen)/Solidifying Point Tester of petroleum products

  • Zhejiang, China

  • NADE

  • AC(220±10%)V, 50Hz

  • 0 ℃, ±0.5 ℃, two cold baths are the same

  • 0 ℃, -17 ℃, ±0.5 ℃, two cooling baths are the same.

  • -17 ℃, -34 ℃, ±0.5 ℃,two cooling baths are the same

  • Ambient to -70 ℃, ±0.5 ℃, two cooling baths are the same

  • New-type refrigeration compressor

  • ≤30℃

  • ≤85%

  • 1700W

Product Description

Product Description

SYD-510F1 Multifunctional Low-temperature Tester is designed and made as per test standards GB/T 510,GB/T 3535,GB/T 6986 and SH/T 0248 of People’s Republic of China. It is suitable to make determinations of pour point, cloud point, solidifying point and cold filter plugging point of petroleum products. This instrument can also be used to do these tests according to ASTM D97 and ASTM D2500.

Feature

1. It is a multifunctional instrument which can be used to determine pour point, cloud point, solidifying point and cold filter plugging point of petroleum products.

2. Floor model. It is equipped with four-place wheels at bottom. Convenient to move.

3. Four chambers. Each chamber has two cooling baths. The temperature of the two baths in the one chamber are the same.The minimum temperature can reach –70℃. The temperature control precision is ±0.5℃.

4. It adopts special technology to make it no need to use cooling liquid in the chambers. The cooling speed is rapid. Easy to use and high efficiency.

5. It is equipped with LCD screen. The control panel is easy to operate.

Specification

Model

SYD-510F1

Power supply

AC(220±10%)V,50Hz

Temperature control of chamber

Chamber I

0 ℃, ±0.5 ℃, temperatures in two cold baths are the same.

Chamber II

0 ℃, -17 ℃, ±0.5 ℃, temperatures in two cooling baths are the same.

Chamber III

-17 ℃, -34 ℃, ±0.5 ℃,temperatures in two cooling baths are the same.

Chamber IV

Ambient to -70 ℃, ±0.5 ℃, temperatures in two cooling baths are the same.

Refrigeration

New-type refrigeration compressor

Ambient temperature

≤30

Relative humidity

≤85%

Maximum power consumption

1700W

NADE SYD-510F1 Laboratory Multifunctional Low-temperature Tester(Touch screen)/Solidifying Point Tester of petroleum products NADE SYD-510F1 Laboratory Multifunctional Low-temperature Tester(Touch screen)/Solidifying Point Tester of petroleum products NADE SYD-510F1 Laboratory Multifunctional Low-temperature Tester(Touch screen)/Solidifying Point Tester of petroleum products NADE SYD-510F1 Laboratory Multifunctional Low-temperature Tester(Touch screen)/Solidifying Point Tester of petroleum products

Notes:

1. The reagent and equipments for installing the instrument are supplied by end-users themselves.

2.The thermometer needs to be purchased by the end user. Parameter: :(-80~60)℃ scale mark 1℃,1 piece.

3. The usage,management and saving of poisonous and harmful reagent,pls operate according to the relative principle.

4. PLS read the operation manual and industry standard before using the instrument.
