NADE LC-2 Laboratory Cold Filter Plugging Point Filter (2006 Standard) Accessories for Solidifying Flash Point Tester

  • Zhejiang, China
  • NADE
  • - 56℃
  • 1961 Pa (200 mm H2O)
  • -10~+35℃
  • ≤85%
  • 150W
  • 250mm*150mm*380mm(Vacuum bottles are not included)

Product Description

Product Description

The instrument is designed and made as per the Industry Standard of People’s Republic of China SH/T 0248-2006 Standard Diesel and Domestic Heating Fuels - Determination of Cold Filter Plugging Point. Being equipped with refrigeration bath and other accessories, it can be used to determine cold filter plugging point of distillate fuels, including fuels containing fluidity improver or other additive, and used for diesel engines and domestic heating devices.

Feature

1. It adopts integral structure. Easy to use and good-looing.

2. It adopts light-touch and digital display technology. The data set is easy and the timing shows strikingly. It stops automatically after the timing is over.

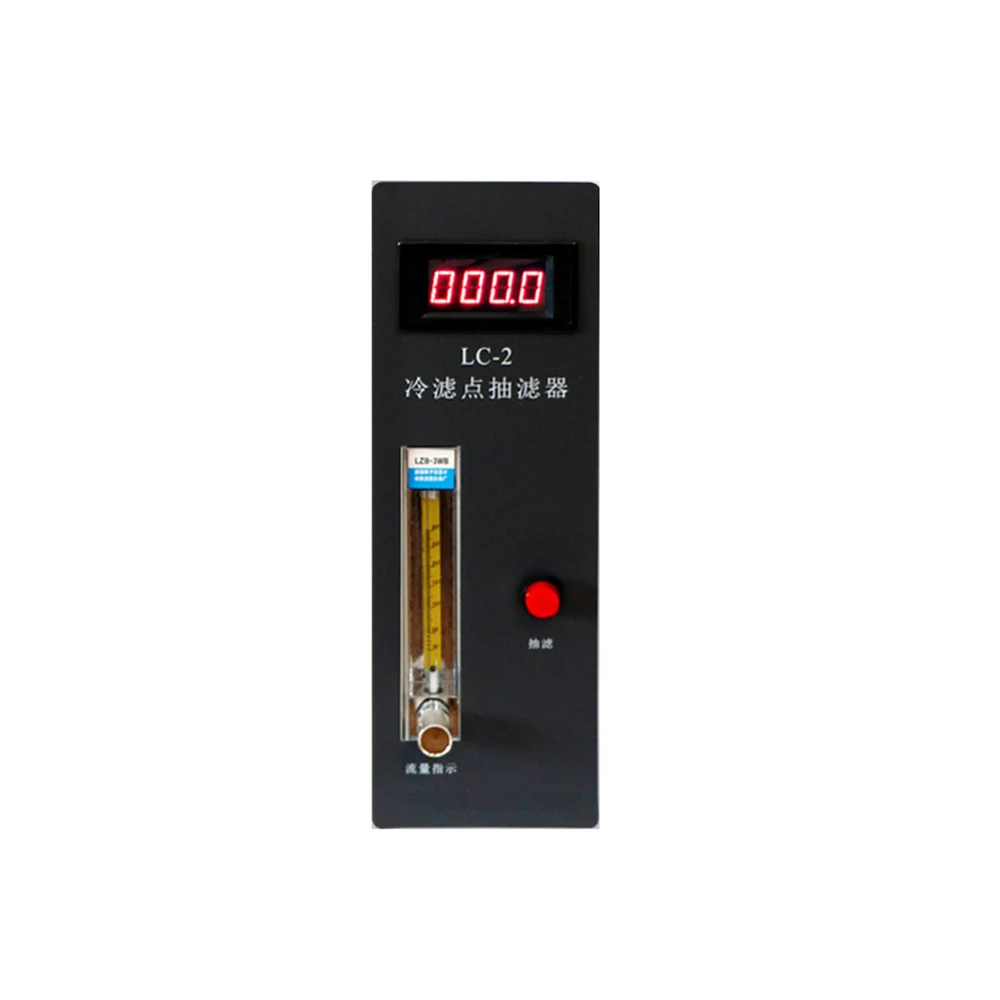

3. It equips a flowmeter to control and show the flow rate of air suction.

4. The accessories are fully equipped. It equips two vacuum bottles to control the air suction. It can meet standard SH/T 0248-2006.

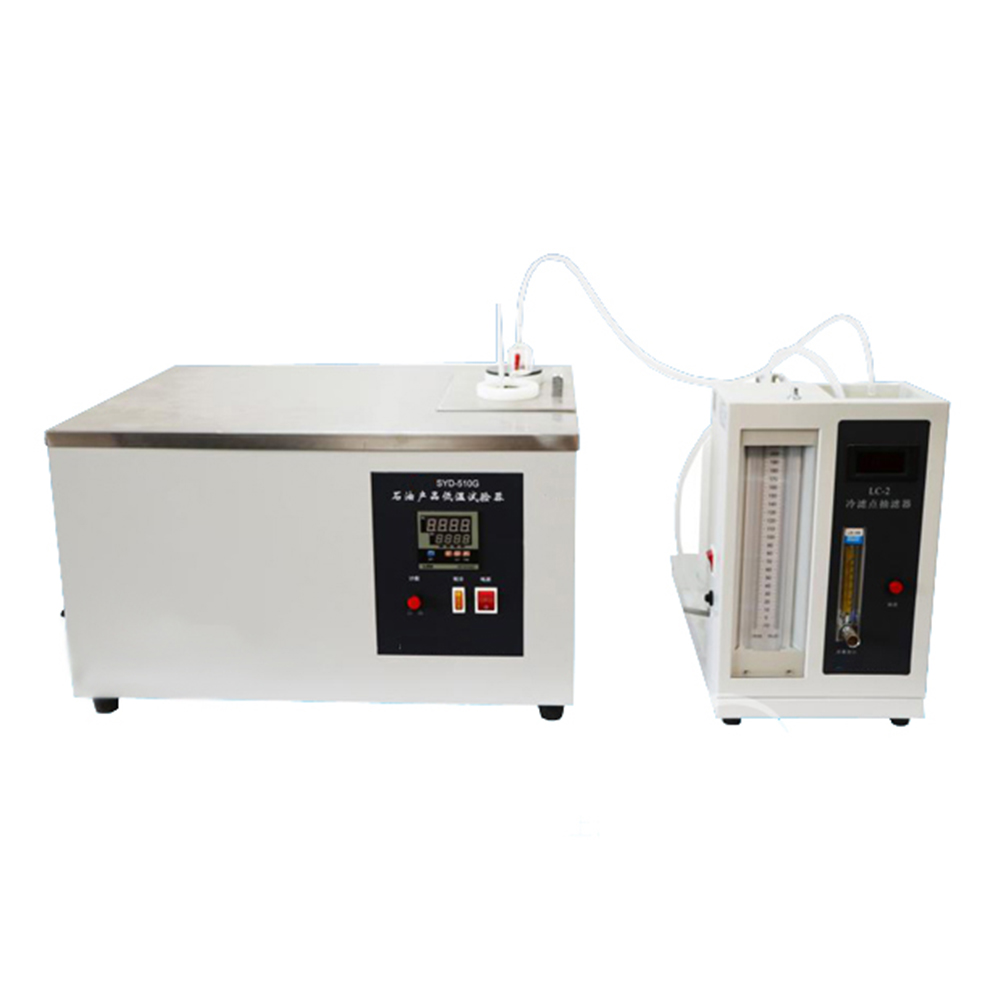

5. The instrument can be singly used to do CFPP determination equipping with suitable cooling bath. It can also be used to do CFPP determination equipping with suitable low temperature tester.

Specification

Model

LC-2

Power supply

AC220V±10%,50Hz

Pumping pressure

1961 Pa (200 mm H2O)

Test cup

Glass, flat bottom, circular type; inner diameter 31.0~32.0 mm; Thickness 1.0~1.5mm; Height 115~125mm

There is a mark line at 45 ml of the cup.

Filter assembly

It is made of cooper; Size of hole on the filter sieve is 45 um (330 meshes)

Working environment

Ambient temperature

-10~+35℃

Relative humidity

≤85%

Maximum power consumption

150W

Dimension

250mm×150mm×380mm(Vacuum bottles are not included)
