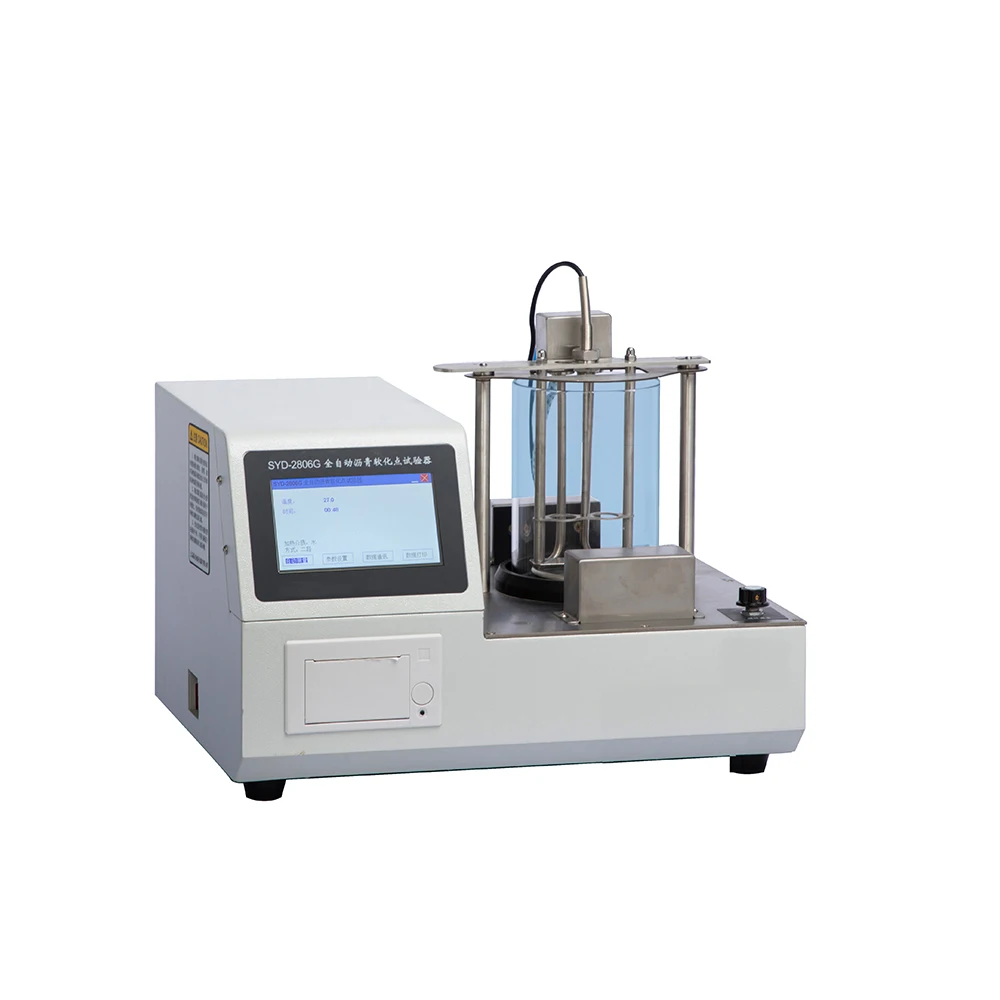

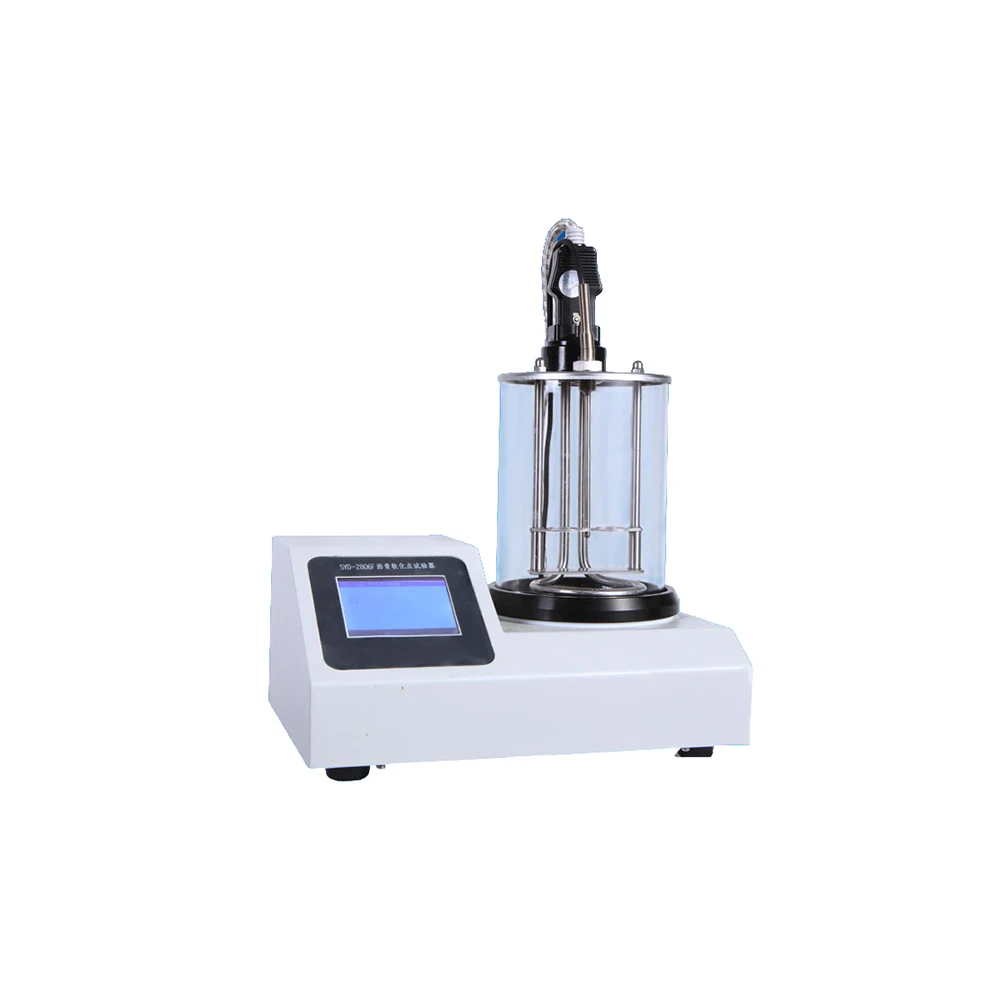

NADE SYD-2806F Automatic Asphalt/Bitumen Softening Point Tester/Apparatus

  • China
  • NADE
  • AC 220V (-5%~+10%), 50 Hz
  • 32 ℃~160 ℃
  • 0.1 ℃
  • adjusted to 5.0±0.5 ℃/ min automatically after three minutes
  • 800 W
  • glycerin
  • 1000 ml
  • ≤ 85%
  • ≤ 850 W
  • 210mm*350mm*400mm(L*W*H)

Product Description

Product Description

The instrument is designed and made as per GB/T4507 and ASTM D36 Test Methods for Softening Point of Petroleum Asphalt of national standard of People’s Republic of China , T0608 Asphalt Softening Point Test (Ring-and-Ball Apparatus) in the Industrial Standard of People’s Republic of China JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. It is suitable to determine softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt, and various asphalts. It can be widely used for asphalt manufacturing companies, highway and bridge construction companies, relative colleges and universities, and scientific research institutes.

Feature

1. Small desktop structure. Controlled by micro-computer. Linear heating and automatic stir. It shows the reliable test result.

2. The beaker is made of high-temperature resistant glass. The rings and balls all meet requirements of standard test methods..

3. An automatic stirrer is equipped in the bath. LED shows time and temperature. It can test two samples at a time. Easy to use.

Specification

Model

SYD-2806F

Power supply

AC 220V (-5%~+10%), 50 Hz

Measurement range

32 ℃~160 ℃

(1) Heating medium

5℃ to 80℃ distilled water(softening point under 80 ℃)

(2) Heating medium

32 ℃ to 160℃ glycerin (softening point over 80 ℃)

Temperature resolution

0.1 ℃

Heating rate

It will be adjusted to 5.0±0.5 ℃/ min automatically after three minutes

Stirrer

The stirring speed can be continuously adjusted

Heating power

800 W

Heating medium

glycerin

Beaker cubage

1000 ml

Relative humidity

≤ 85%

Total power consumption

≤ 850 W

Outline dimension

210mm*350mm*400mm(L*W*H)

NADE SYD-2806F Automatic Asphalt/Bitumen Softening Point Tester/Apparatus

Other models:

NADE SYD-2806F Automatic Asphalt/Bitumen Softening Point Tester/Apparatus NADE SYD-2806F Automatic Asphalt/Bitumen Softening Point Tester/Apparatus NADE SYD-2806F Automatic Asphalt/Bitumen Softening Point Tester/Apparatus

SYD-2806A SYD-2806G SYD-2806H

Packaging & Shipping

NADE SYD-2806F Automatic Asphalt/Bitumen Softening Point Tester/Apparatus NADE SYD-2806F Automatic Asphalt/Bitumen Softening Point Tester/Apparatus

Company Information

NADE SYD-2806F Automatic Asphalt/Bitumen Softening Point Tester/Apparatus

NADE SYD-2806F Automatic Asphalt/Bitumen Softening Point Tester/Apparatus

Our Services

NADE SYD-2806F Automatic Asphalt/Bitumen Softening Point Tester/Apparatus

FAQ
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.

Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.

Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.

Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
