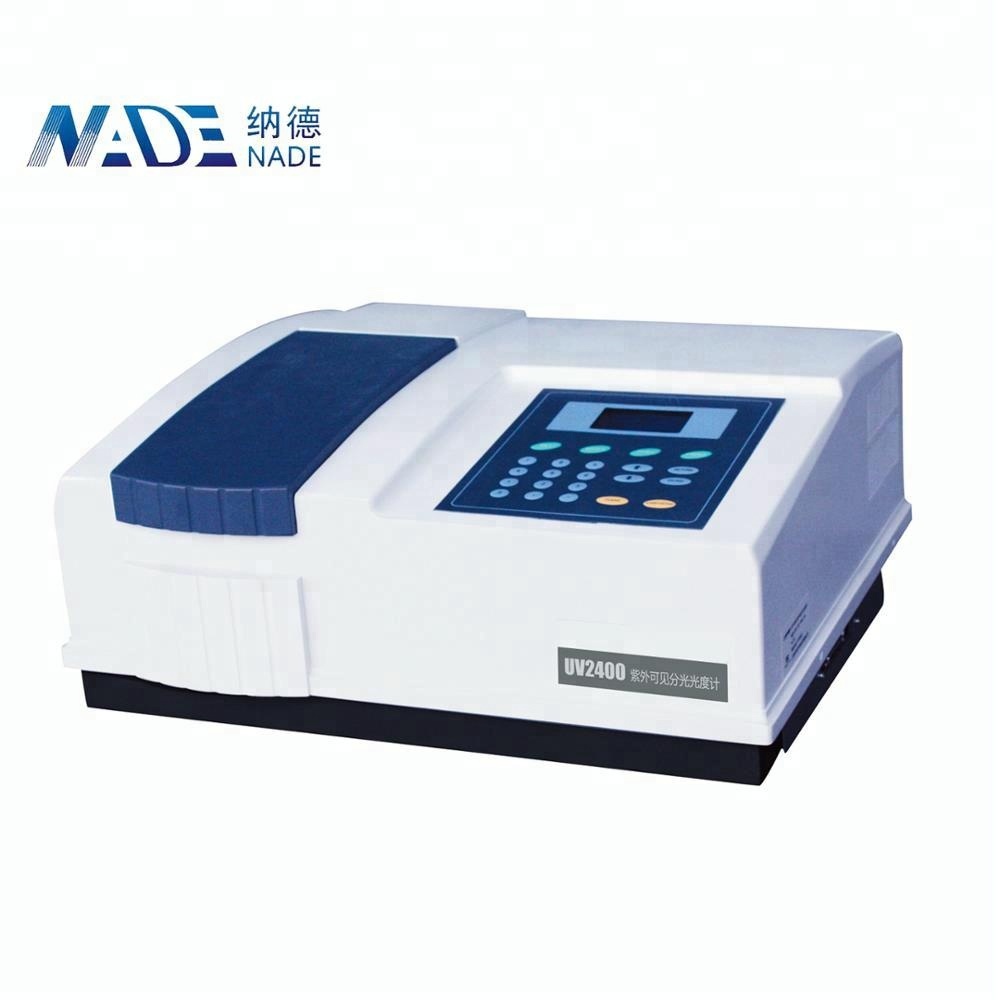

NADE Dual Split-beam UV-VIS Spectrophotometer UV2400

  • 1 year

  • other

  • China

  • NADE

  • UV2400

  • 540*445*230mm

  • 20kg

  • no

  • 190 to 1100nm, 190 - 1100nm

  • Proportion monitor double beam

  • 1.8nm

  • +/- 0.5 nm

  • 0.2 nm

  • 128*64 LCD

Product Description

Introduction

UV2400 is dual split-beam UV-VIS spectrophotometer. New optical system and circuit system make the instrument have high-resolution, low stray light, lasting stability, high-SNR. This instrument can meet the multi-level analysis application requirements of users. The computer application system of UV-VIS Spectrophotometer can achieve more powerful function for your instrument.

Applications

Measurement of quantities of some certain material in both visible and ultraviolet region. It could be applied vary among different fields, such as factories, schools, metallurgy, agriculture, food industry, biochemistry, environment protection, petrochemical industry, medical and health and scientific research institutes or labs.

Photometric measurement
Spectrum scan
Quantitative determination
Multi-wavelength test
Dynamics measurement (time scanning)
DNA/Protein concentration measurement

Features

Lasting Stability
Ultra-low stray light
Can be easily replaced light source
Easily upgraded

Specification
Model
UV2400
Optical System
Proportion monitor double beam
Spectral Bandwidth
1.8nm
Wavelength Range
190~1100nm
Wavelength Accuracy
±0.5nm
Wavelength Repeatability
0.2nm
Photometric Range
T:0~200.00%T A:-0.301~4.0000Abs
Photometric Accuracy
±0.3%T
Photometric Repeatability
0.1%T
Stray Light
≤0.05%T(220nm, 340nm)
Baseline linearity
±0.002A
Baseline drift
0.001A/h(500nm)
Noise
100%(T)line noise≤0.1%(T)
0%(T) line noise ≤0.05%(T)
Monitor
128*64 LCD
Dimensions
540×445×230mm
Accessories

We also provide cuvette for spectrophotometer, glass/quartz/plastic(disposible) at different size.
