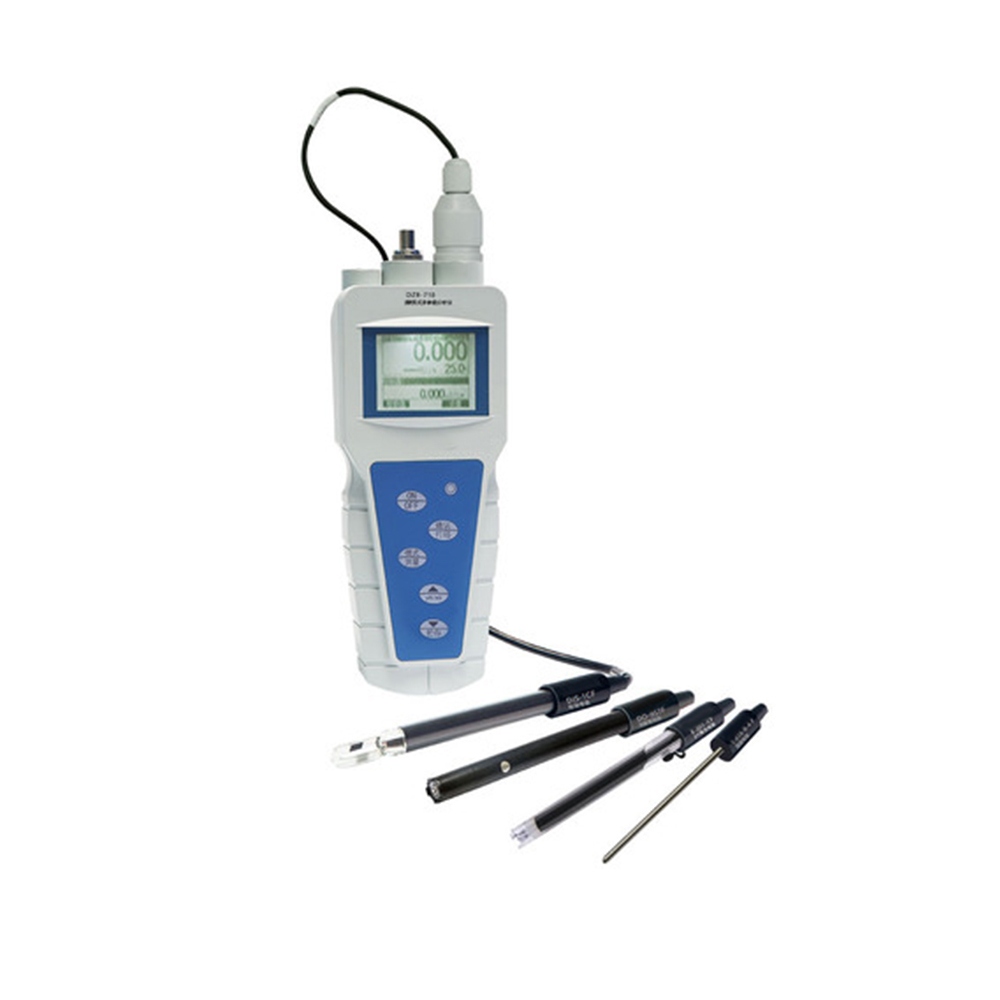

NADE DZB-718 Portable Multifunctional Water Quality Tester Multi-parameter analyzer

  • China
  • NADE
  • -2.000~19.999 pH/pX
  • ±0.002pX±1 bit
  • 0.000μS/cm~199.9mS/cm
  • +/- 5%FS
  • pH/pX, ORP, Conductivity, Resistivity, TDS, Salinity, DO, Ion

Product Description

Instrument functions:

  1. Several parameters can be shown on the same screen. It can simultaneously measure pX/pH, mV, conductivity, TDS, salinity, resistivity, dissolved oxygen, saturation and temperature.
  2. It provides many common ion modes such as H+. Ag+. Na+. K+. NH4+. Cl-. F-. NO3-. BF4-. CN-,Cu2+. Pb2+. Ca2+
  3. It follows GLP practice and can store 2200 sets of measuring data.
  4. It provides zero oxygen and full scale calibration.
  5. It provides three measuring modes: continuous measuring, timing measuring and balance measuring mode.
  6. It has USB ports. If matched with communication software, it can be connected with PC.
  7. It is small size and low-energy designed. The protection level is IP65 for portable work and field measurement.

Specifications:

Model

DZB-718

Measuring range

pH/pX:(-2.000~19.999) pH/pX

O R P:(-1999.99~1999.99)mVConductivity: 0.000μS/cm~199.9mS/cm

Resistivity: 0.00Ω.cm~20.00MΩ.cm

T D S:0.000 mg/L~100g/L

Salinity: (0.00~8.00)%

Dissolved oxygen: (0.00~19.99)mg/L

Dissolved oxygen saturation: (0.0~199.9)%

Ion concentration:(0~19990),unit:ug/L. mg/L. g/L. mol/L. mmol/LTemp:(-5.0~135.0)°C

Resolution

pH/pX:0.01. 0.001pH

O R P:0.1/0.01 mV

Conductivity: 0.001μS/cm

Resistivity: 0.01 Ω.cm

T D S:0.001 mg/L

Salinity: 0.1 %

Dissolved oxygen:0.01mg/L

Saturation: 0.10%

Temperature:0.1°C

Accuracy

pH/pX:±0.002pX±1 bit

ORP:±0.03%FS

Conductivity: ±0.5%FS

Resistivity::±0.5%FS

T D S:± 0.5%FS

Salinity: ±0.1%

Ion concentration:±0.5%±1 bit

Dissolved oxygen: ±0.30mg/L

Dissolved oxygen saturation:±10.0%

Temp:±0.3°C±1 bit

Input impedance

>3×1012Ω

Dissolved oxygen response time

<=45s(90% respond at 20°C

Automatic temperature compensation range

pH:(0.0~100.0)°C

Conductivity:(0.0~100.0)°C

Dissolved oxygen: (0.0~40.0)°C

Power

4 alkaline batteries of model 5

Dimension(mm)

210×100×45

Net Weight

0.5Kg

Package Size

500X380X220mm

Gross Weight

3.5kg
