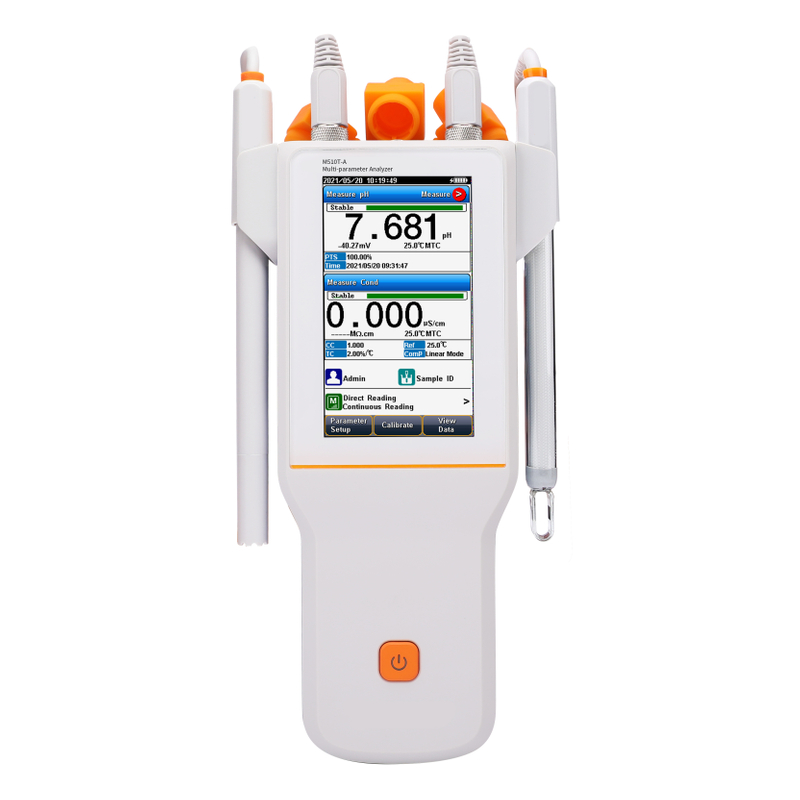

M510T-A Multi-parameter Analyzer

pH Range: -2.000 to 20.000 pH
mV/ORP Range: -2000.00 to 2000.00 mV
pX Range: -2.000 to 20.000 pX
ISE Range: 1E-9 to 9.999E9
Availability:
  • M510T-A
  • Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output
  • 1
  • 1 year
  • China

Product Description

GENERAL FEATURES

● Color High contrast LCD touchscreen, 4.3 inches.

● Intelligent operation system provides features including user management, calibration management, electrode management, method management, data management, Log Management and etc.

● Multi-reading feature allows auto-read, timed-read and continuous-read.

● Automatic/Manual temperature compensation ensures accurate results.

● Auto-hold feature senses and locks the measurement endpoint.

● Data Storage 1000 sets for each parameter (GLP-compliant).

● Data analysis feature helps user review, compare and recalculate results.

● Support for USB communication.

● Auto-power off feature effectively extends the battery service life.

● Reset feature automatically resumes all settings back to factory default options.

● IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.

 Large color touch screen

Large color touch screen

Easy operation and comfortable experience

Method management

Method management

Various methods are built-in, available for methods customization

Support for Bluetooth

Support for Bluetooth

Assortment of accessories

Assortment of accessories


pH

● 1-8 points calibration with Standard Recognition.

● Selectable pH buffer groups, including USA, NIST, DIN, GB, MERK, JIS.

● User-defined pH buffer or buffer group is supported.

● Automatic electrode diagnosis with pH slope and offset display.



Ion

● 1-6 points calibration.

● Selectable measurement unit, including μg/L, mg/L, g/L, mmol/L, pX, ppm, etc.

● Multi-measurement modes are supported, including Direct Reading mode, Standard Addition mode, Sample Addition mode and GRAN mode.

● Over 10 methods are built-in, including F- , Cl- , Br- , I- , NO3 - , BF4 - , NH4 + , K+ , Na+ , Ca2+, Cu2+, Pb2+, Ag+ and etc., user-defined method is supported.



Conductivity

● 1-5 points calibration automatically recognizes the standard solutions.

● Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor.

● Temperature compensation type (none, linear, pure water).


Specification

Model

M510T-A

Parameters

pH/EC/ISE/Temp. (mV/ORP/pX/Resistivity/TDS/Sal.)

               pH

Range

-2.000 to 20.000 pH

Resolution

0.1, 0.01, 0.001pH


Accuracy

± 0.002 pH

Calibration Points

Up to 8

Standard Customization

Yes


Calibration Reminder

Yes


Standard Recognition

USANIST, MERK, JIS, GB and DIN buffers

Slope Limit

Yes

          mV/ORP

Range

-2000.00 to 2000.00 mV

Resolution

0.1, 0.01 mV


Accuracy

± 0. 1 mV or ± 0.03%

EH ORP Mode

Yes


ORP Calibration Points

1 custom point (relative mV)

             pX

Range

-2.000 to 20.000 pX

Resolution

0.1, 0.01, 0.001 pX


Accuracy

± 0.002 pX

Calibration Points

Up to 6

             ISE

Range

1E-9 to 9.999E9

Units

mol/L, mmol/L, g/L, mg/L, μ g/L

Resolution

Up to 4 significant digits

Accuracy

± 0.3%

Calibration Points

Up to 8

       Conductivity

Range

0.000 μ S/cm to 3000 mS/cm

Resolution

0.001 μ S/cm minimum,

various with range selection


Accuracy

± 0.5% FS

Reference Temperature

5, 10, 15, 18, 20, 25 ºC


Calibration Points

Up to 5

Calibration Reminder

Yes


Standard Recognition

10 μ S/cm, 84 μ S/cm, 500 μ S/cm, 1413 μ S/cm, 12.88mS/cm

Resistivity

Range

5.00 Ω ·cm~100.00 M Ω ·cm

Resolution

0.01 Ω ·cm minimum

Accuracy

± 0.5% FS

TDS

Range0.000mg/L~1000g/L

Resolution

0.001mg/L minimum, changed with range

Accuracy

± 0.5%

Salinity

Range

(0.00~8.00)%


Resolution

0.01%


Accuracy

± 0. 1%

       Temperature

Range

- 10 to 135 ºC, 14 to 275 ºF

Unit

ºC, ºF


Resolution

0.1


Relative Accuracy

± 0. 1

Measurement

Reading Mode

Auto Read (Fast, Medium, Slow), Timed, Continuous

Reading Prompts

Reading, Stable, Locked


Temp. Compensation

ATC, MTC

Data management

Data Storage

1000 Groups


GLP Features

Yes

Inputs

pH Electrode

BNC(Q9)


DO with Temp. Probe

4-pin aviation connector


Conductivity with Temp. Probe

5-pin aviation connector

Outputs

USB

USB 2.0 flash memory device, PC, scanner

Bluetooth

printer

  Display options

Backlight

Yes


Auto Shutdown

300, 600, 1200, 1800, 3600 sec., off

IP Rating

IP65


Date and Time

Yes

        General

Power

Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output

Dimensions

90 × 255 × 40 mm


Weight

500g (1. 1 lb)


Configuration

E-301-QC 3 in 1 pH Composite  Electrode

DJS-1VTC  Conductivity electrode

NIST pH Standard Solution (4.01, 7.00, 10.01) one bottle each (50ml/bottle)

1413μS/cm Conductivity Standards one bottle (50ml/bottle)

Electrode Hanger

Protective Cover

Wrist Strap Assembly

Touch Screen Pen

Portable Protective Case

3 in 1 pH Composite Electrode E-301-QCDJS-1VTC EC ElectrodeStandard pH Buffer Solution and Conductivity Standards
