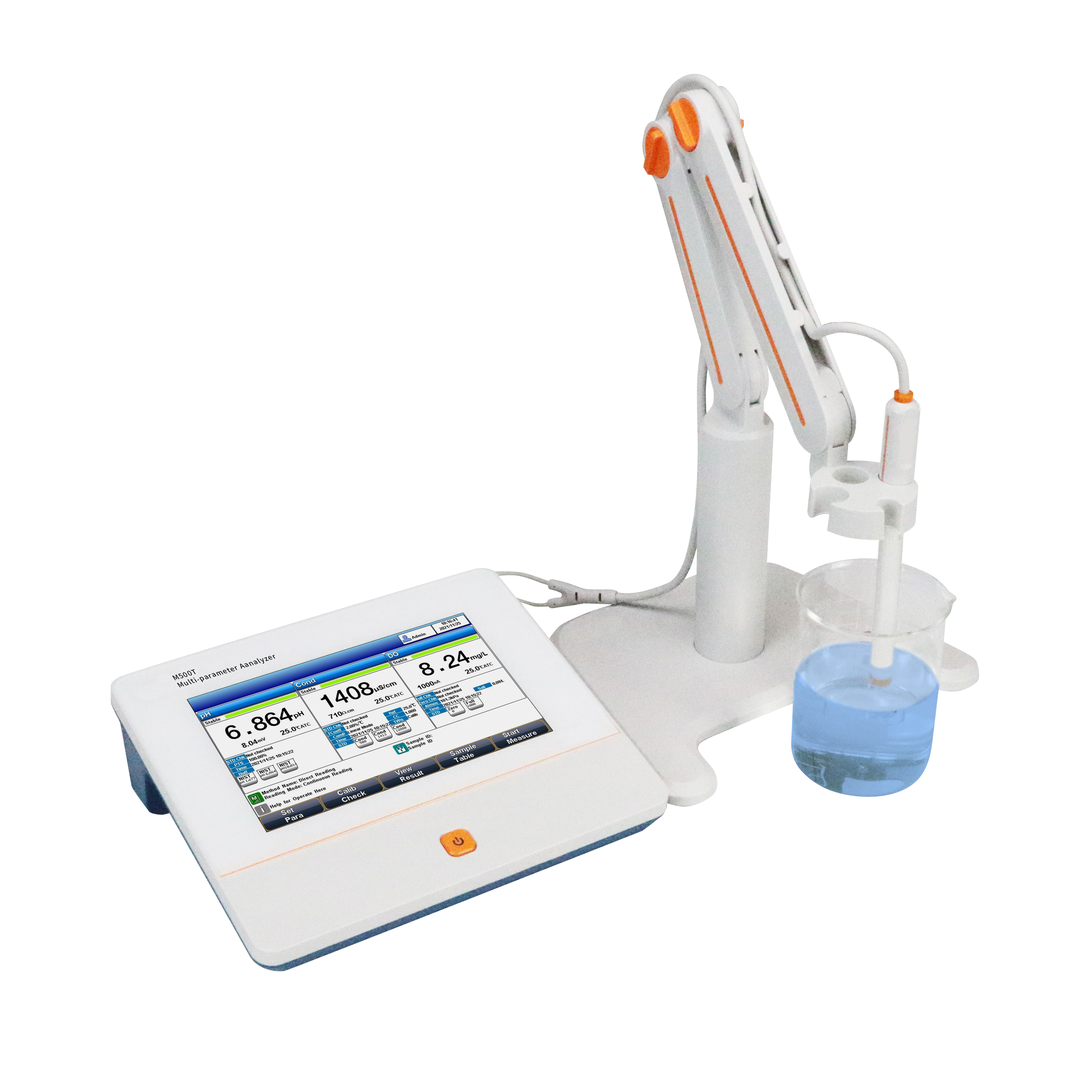

M500T Multi-parameter Analyzer

pH Range: -2.000 to 20.000 pH
mV/ORP Range: -2000.00 to 2000.00 mV
pX Range: -2.000 to 20.000 pX
DOC Polarographic Range: 0.00 to 99.99 mg/L
Availability:
  • M500T
  • AC Adapter, 100-240V AC input, DC24V output
  • 1
  • 1 year
  • China

Product Description


M500T

GENERAL FEATURES

● Color High contrast LCD touchscreen, 7.0 inches.

● Intelligent operation system provides features including user management, calibration management, method management, data management and etc.

● Multi-reading feature allows auto-read, timed-read and continuous-read.

● Automatic/Manual temperature compensation ensures accurate results.

● Data Storage 1000 sets for each parameter (GLP-compliant).

● Data analysis feature helps user review, compare and recalculate results.

● Support for USB or RS-232 communication.

● Reset feature automatically resumes all settings back to factory default options.

● IP54 waterproof.

Large color touch screen

Large color touch screen

Easy operation and comfortable experience

Autosampler available

Autosampler available

Make measurement more  efficient

User management system

User management system

Multiple external devices available

Multiple external devices available

PC, autosampler, printer, scanning  gun, USB flash disk, etc


pH

● 1-6 points calibration with Standard Recognition.

● Selectable pH buffer groups, including DIN, NIST, USA, MERK, JIS, GB.

● Support for pH standard group customization.

● Automatic electrode diagnosis with pH slope and offset display.



Ion

● 1-6 points calibration

● Selectable measurement unit, including μg/L, mg/L, g/L, mmol/L, pX, ppm, etc.

● Multi-measurement modes are supported, including Direct Reading mode, Standard Addition mode, Sample Addition mode and GRAN mode.

● Over 10 methods are built-in, including F- , Cl- , Br- , I- , NO3 - , BF4 - , NH4 + , K+ , Na+ , Ca2+, Cu2+, Pb2+, Ag+ and etc., user-defined method is supported.



Conductivity

● 1-5 points calibration with Standard Recognition.

● Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor.

● Temperature compensation type (none, linear, pure water).



DO

● Support for air-saturated water or zero oxygen calibration.

● Auto barometric pressure compensation.

● Manual Salinity Factor Correction.

● Selectable pressure unit, including kPa, mbar, Torr, Atm.


Specification

Model

M500T


Parameters

pH/EC/ISE/DO/Temp. (mV/ORP/pX/Resistivity/TDS/Sal./DO Saturation)

              pH

Range

-2 .000 to 20.000 pH

Resolution

0.1, 0.01, 0.001pH

Accuracy

± 0 .002 pH

Calibration Points

Up to 6

Standard Customization

Yes

Calibration Reminder

Yes

Standard Recognition

NIST, GB, DIN, USA, MERK, JIS buffers

Slope Limit

Yes

         mV/ORP

Range-2000 .00 to 2000.00 mV

Resolution

0.1, 0.01 mV

Accuracy

± 0 . 1 mV or ± 0 .03% of reading whichever is greater

EH ORP Mode

Yes

ORP Calibration Points

1 custom point (relative mV)

                pX

Range

-2 .000 to 20.000 pX

Resolution

0.1, 0.01, 0.001 pX

Accuracy

± 0 .002 pX

Calibration Points

Up to 6

           ISE

Range

1E-9 to 9 .999E9

Units

mol/L, mmol/L, g/L, mg/L, μ g/L, ppm

Resolution

Up to 4 significant digits


Accuracy

± 0 .3%

Calibration Points

Up to 6

       Conductivity

Range0.000 μ S/cm to 2000 mS/cm

Resolution

0.001 μ S/cm minimum

various with range selection


Accuracy

± 0 .5% FS

Reference Temperature

5, 10, 15, 18, 20, 25 ºC


Calibration Points

Up to 5

Calibration Reminder

Yes

Standard Recognition

10 μ S/cm, 84 μ S/cm, 500 μ S/cm, 1413 μ S/cm, 12.88 mS/cm

Resistivity

Range

5.00 Ω ·cm~100.00 M Ω ·cm

Resolution

0.01 Ω ·cm minimum

Accuracy

± 0 .5% FS

TDS

Range

0 .000~1000 ppt

Resolution

0.001 ppm minimum, changed with range

Accuracy

± 0 .5%FS



Salinity

Type

NaCl%


Range

(0.00~8.00)%


Resolution

0.01%


Accuracy

± 0 . 1%

 Dissolved Oxygen

Concentration -Polarographic

Range

0.00 to 99.99 mg/L


Resolution

0.01 mg/L


Accuracy

± 0.3mg/L (0.00 to 20.00 mg/L);

± 10% (20.00 to 99.99 mg/L)


Calibration Reminder

Yes


Calibration Points

Air-saturated water or zero point

Barometric Compensation

Yes


Manual Salinity Factor Correction

Yes

% Saturation -Polaro- graphic

Range

(0 .0 to 600)%

Resolution

0.10%


Accuracy

± 2 .0%

         Temperature

Range

- 10 to 135 ºC, 14 to 275 ºF

Unit

ºC, ºF


Resolution

0.1


Accuracy

± 0 . 1

Measurement

Reading Mode

Auto Read (Fast, Medium, Slow), Timed, Continuous

Reading Prompts

Reading, Stable, Locked

Temp. Compensation

ATC, MTC

Data management

Data Storage

1000 Groups


GLP Features

Yes


Log Management

Yes

Inputs

pH Electrode

BNC(Q9)


DO with Temp . Probe

4-pin aviation connector


Conductivity with Temp . Probe

5-pin aviation connector

Outputs

USB

USB 2.0 flash memory device, PC


RS 232

printer, scanner, auto-sampler


Configuration

E-301-QC 3 in 1 pH Composite  Electrode

DJS-1VTC  Conductivity electrode

DO-958-Q Dissolved oxygen electrode

NIST pH Standard Solution (4.01, 7.00, 10.01) one bottle each (50ml/bottle)

1413μS/cm Conductivity Standards one bottle (50ml/bottle)

REX-6 Multifunction Electrode Stand, Touch Screen Pen

3 in 1 pH Composite Electrode E-301-QCDJS-1VTC EC ElectrodeDO-958-Q Polarographic DO electrodeStandard pH Buffer Solution and Conductivity Standards

REX-6 Multifunction Electrode Stand
