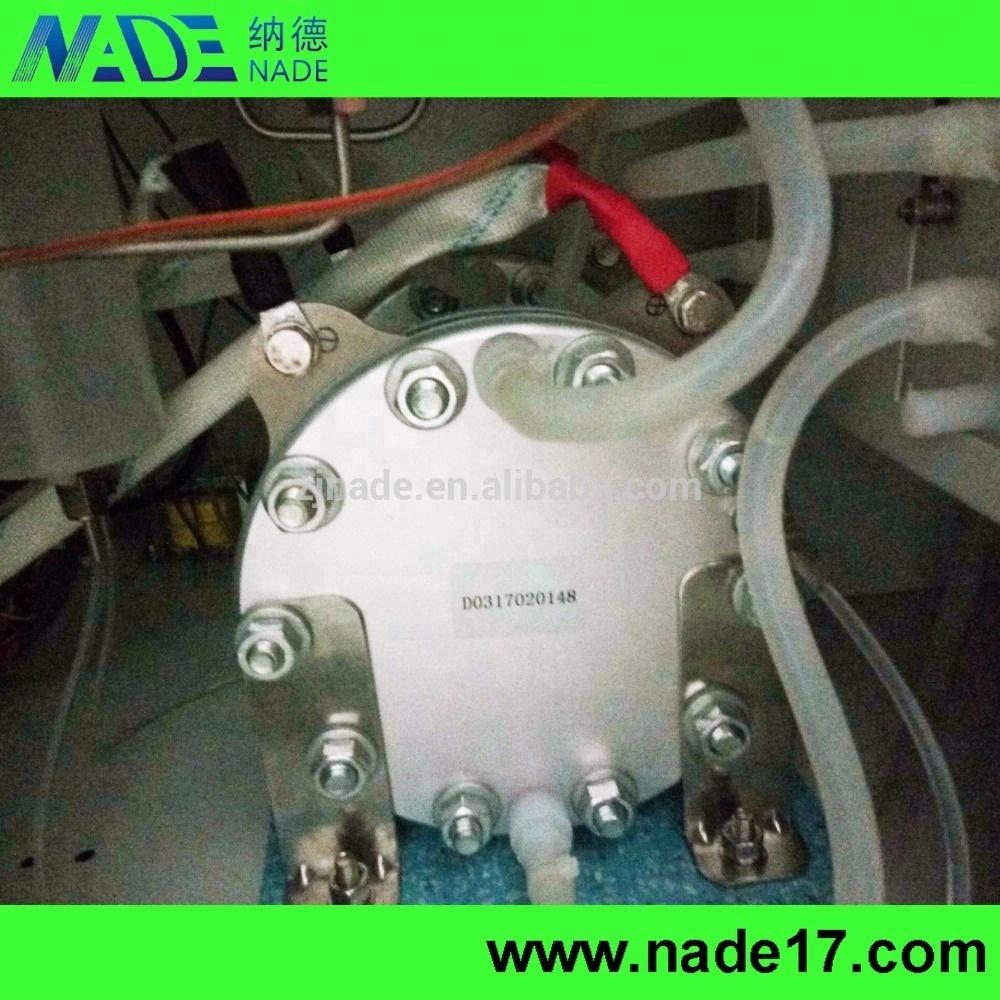

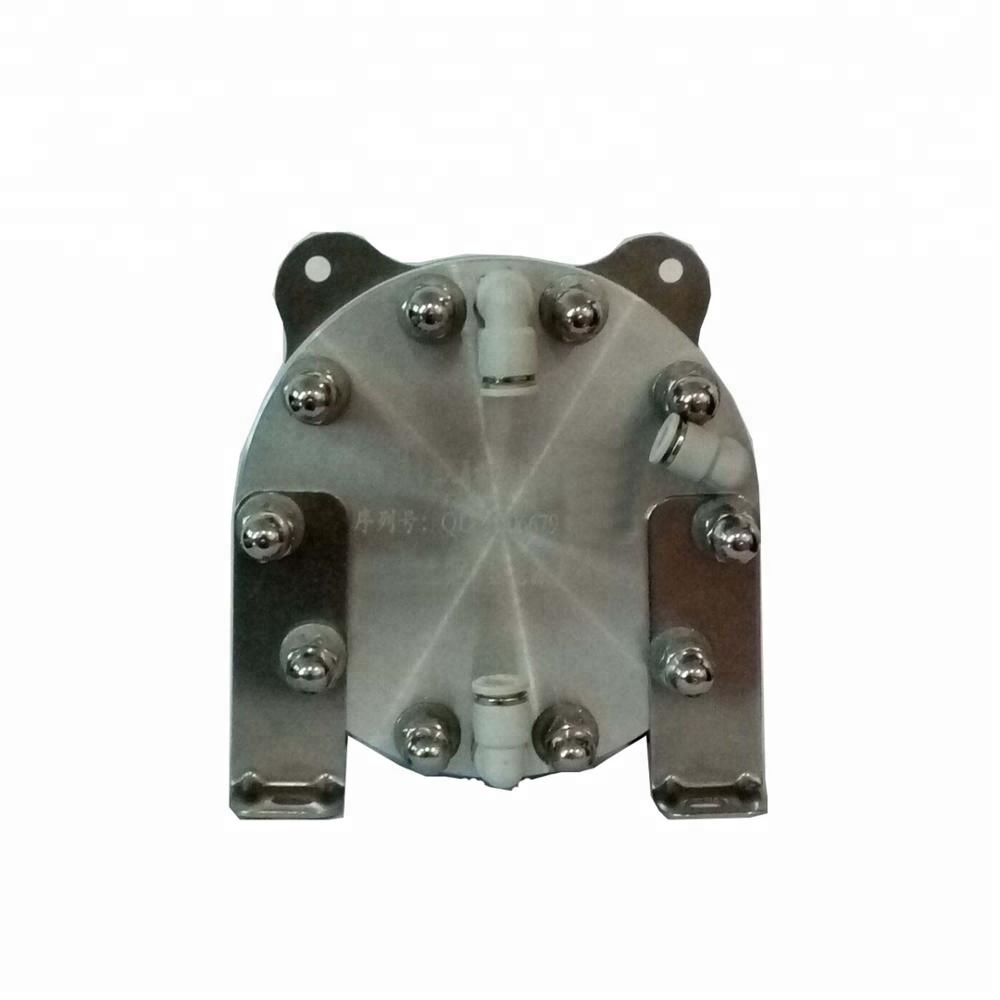

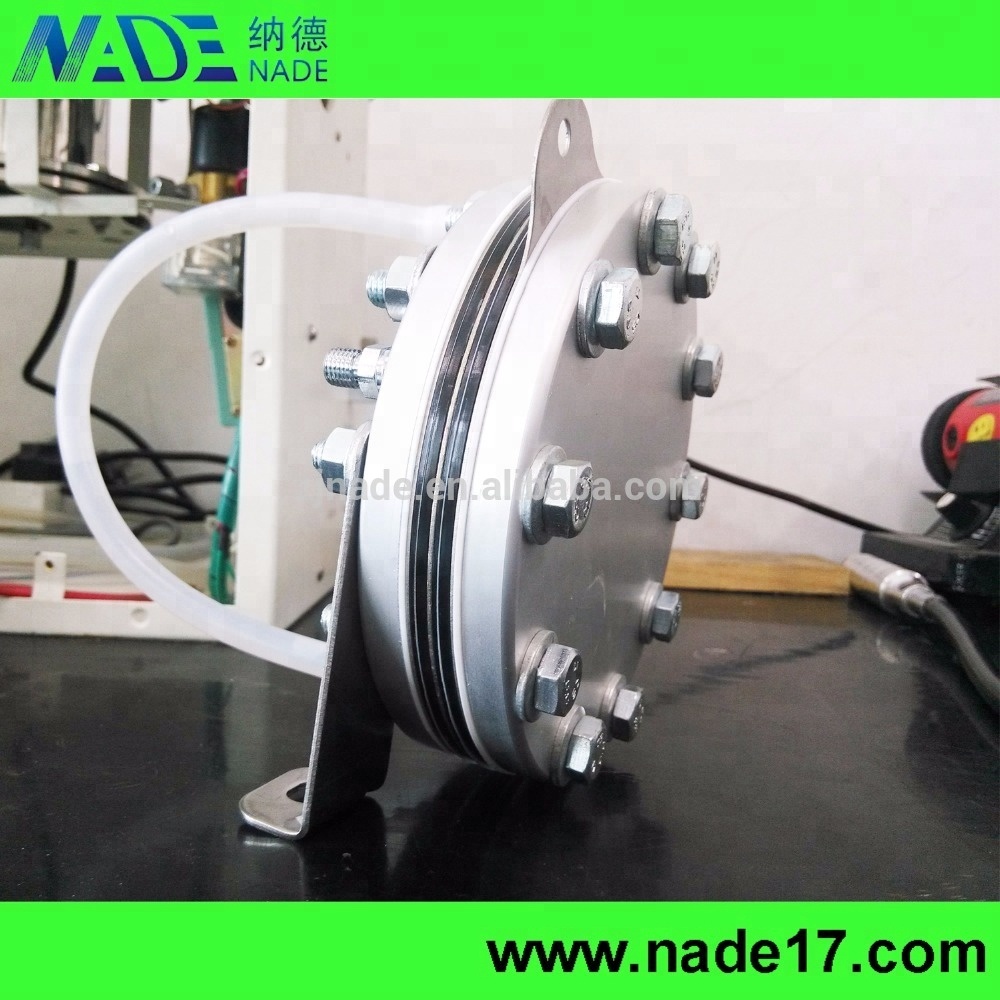

500ml SPE Water Electrolysis Cell for Hydrogen generator

  • laboratory

  • None

  • None

  • New

  • Zhejiang, China

  • NADE

  • HYDROGEN

  • N/M

  • ≤2.35*2V

  • 1kg

  • diameter 138mm

  • ISO9001

  • 6 months

  • Easy to Operate

  • Ordinary Product

  • Not Available

  • Not Available

  • 1 Year

  • other

  • No overseas service provided

  • 0-510ml/min

  • 138mm

  • 85mm

  • 500ml/min at max

  • Titanium

Product Description

We have several model of HHO Electrolysis Cell at different size and gas generator capacity.

For any question, please feel free to contact us.

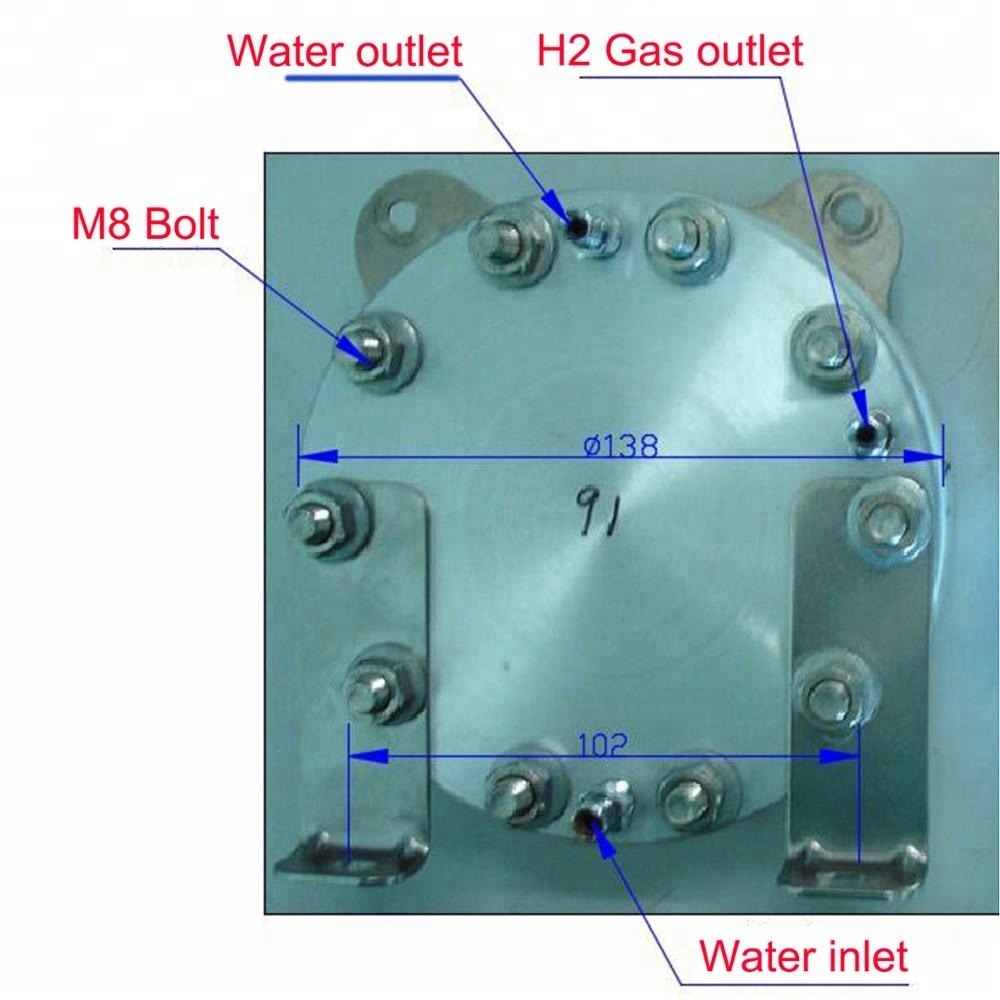

Parameter:

External diameter

φ138mm

Height (incluing base)

140±1mm

Effective Diameter

φ85mm

Voltage of electrolysis

≤2.35*2V

Current

36A

Power

≤300W

Membrane number

2

Electrode material

Titanium

Working Principle:

Electrolytic water meeting the requirements (with electrical resistivity >1MΩ/ cm) , after being put into the anode chamber of electrolytic cell, when power is switched on ,will be decomposed at once at the anode : 2H2O = 4H+ + 2O-2. The decomposed negative oxyanion (O-2) will immediately release electron to form oxygen (O2) gas.The hydrogen proton, in the form of aqua ion (H+.XH2 O), and under the action of electric field force, through SPE ion membrane, will arrive in the cathode to absorb electron to form hydrogen gas.

Related equipment: Hydrogen generator.

500ml SPE Water Electrolysis Cell for Hydrogen generator

Please contact us for more information.

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

500ml SPE Water Electrolysis Cell for Hydrogen generator

Company Information

500ml SPE Water Electrolysis Cell for Hydrogen generator

500ml SPE Water Electrolysis Cell for Hydrogen generator

Packaging & Shipping

Our Packaging Details:

500ml SPE Water Electrolysis Cell for Hydrogen generator

Our Shipping

500ml SPE Water Electrolysis Cell for Hydrogen generator

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
