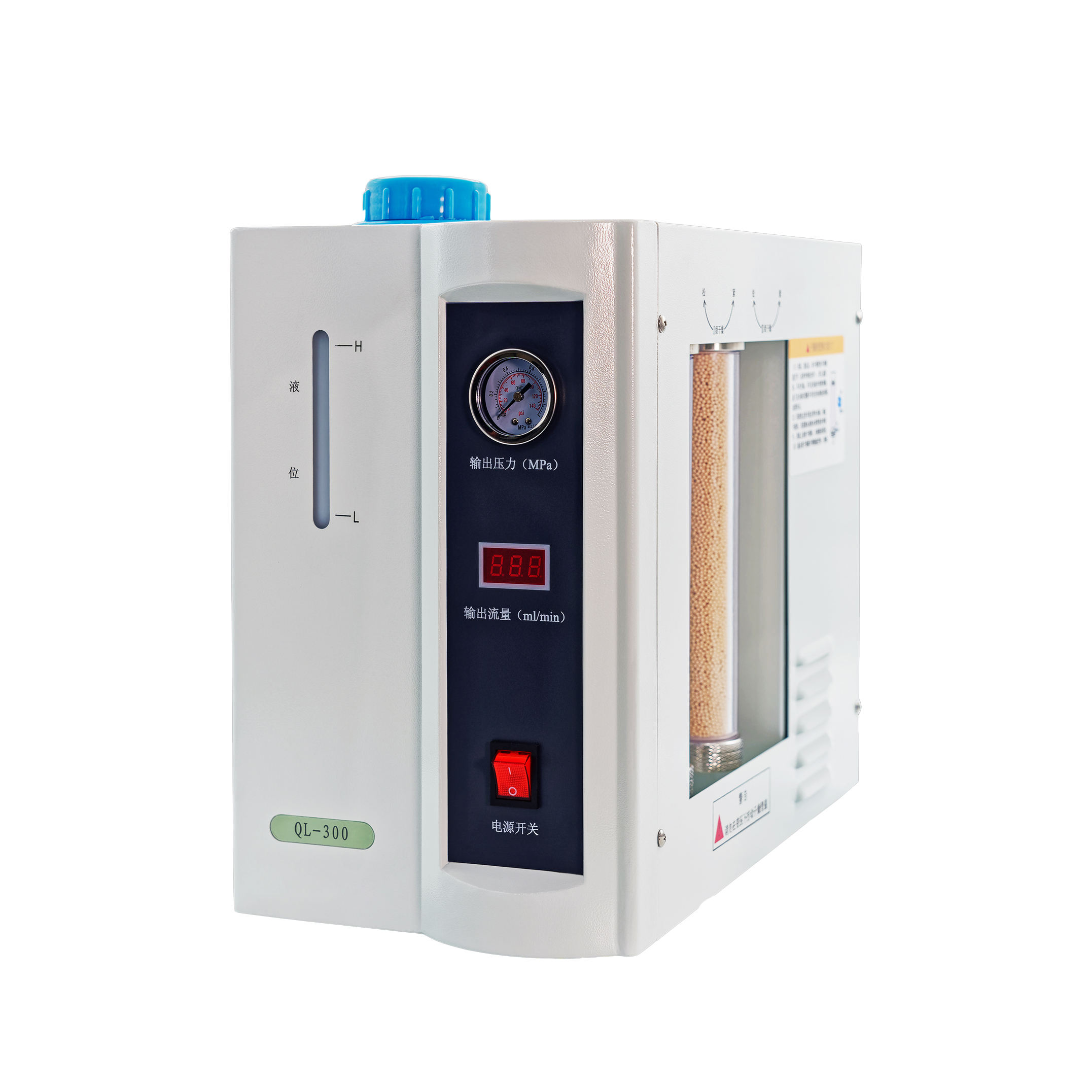

QL-300 PEM Conventional Hydrogen Generator

Output flow (ml/min): 0-310
Output pressure (MPa): 0.02~0.4MPa (conventional)
Hydrogen purity (%): >99.999%
Input power (W): <150
Availability:
Inquire

  • QL-300

  • NADE

  • AC 220V/110V 50~60Hz

  • 1

  • OEM

  • 1 year

  • China

Product Description

QL-300

Products description / Application:
Using PEM technology to produce high purity hydrogen by electrolysis pure water (avoid  adding alkali). QL series hydrogen generator products is a kind of high-tech patented  products with features of light weight, high efficiency, energy saving and environmental  protection.
It can be used as flame gas and carrier gas for GC (gas chromatography), reaction gas for  ELCD (conductivity detector), reaction gas for ED (atomic emission spectrometry  detector).


Features and Advantages:
★ Hydrogen production by world advanced PEM technology which produce hydrogen by  electrolysis pure water, no corrosion and no pollution.
★ Unnecessarily to use the dangerous and expensive hydrogen cylinders.
★ Higher hydrogen purity (99.999% to 99.9999%), stable flow, safe and easy to use, own  several alarms. (over pressure alarm, water shortage alarm, water accumulated alarm).
★ Easy to operate, safe and reliable, produce hydrogen by electrolyzing pure water,  switch on the power to produce hydrogen .(can be used for multiple sets of gas  chromatography)
★ High electrolysis efficiency, long-term use, purity and flow rate do not decay.
★ High reliability, simple daily use and maintenance.
★ Can meet requirements of all kinds of GC.


Specification

Model

QL-150

QL-200

QL-300

QL-500

QL-1000

QL-2000

QL-3000

Output flow (ml/min)

0 - 160

0-210

0~310

0~510

0~1020

0~2020

0~3050

Output pressure (MPa)

0.02~0.4MPa (conventional) / 0.02~0.7MPa (high pressure) stable pressure output

Hydrogen purity (%)

>99.999%

Input power (W)

<100

<100

<150

<200

<500

<1000

<2000

Power voltage (V)

AC 220V/110V 50~60Hz

Dimension (LxWxH)mm

420×227×352

485×368×352

485×390×370

530×396×700

Water quality requirement

Water resistivity >1MΩ.cm

Machine weight (kg)

<15

<25

<30

<50
