QLS-3000T
NADE
220V, 50-60Hz
1
OEM
1 year
China
Product Description
Product Introduction:

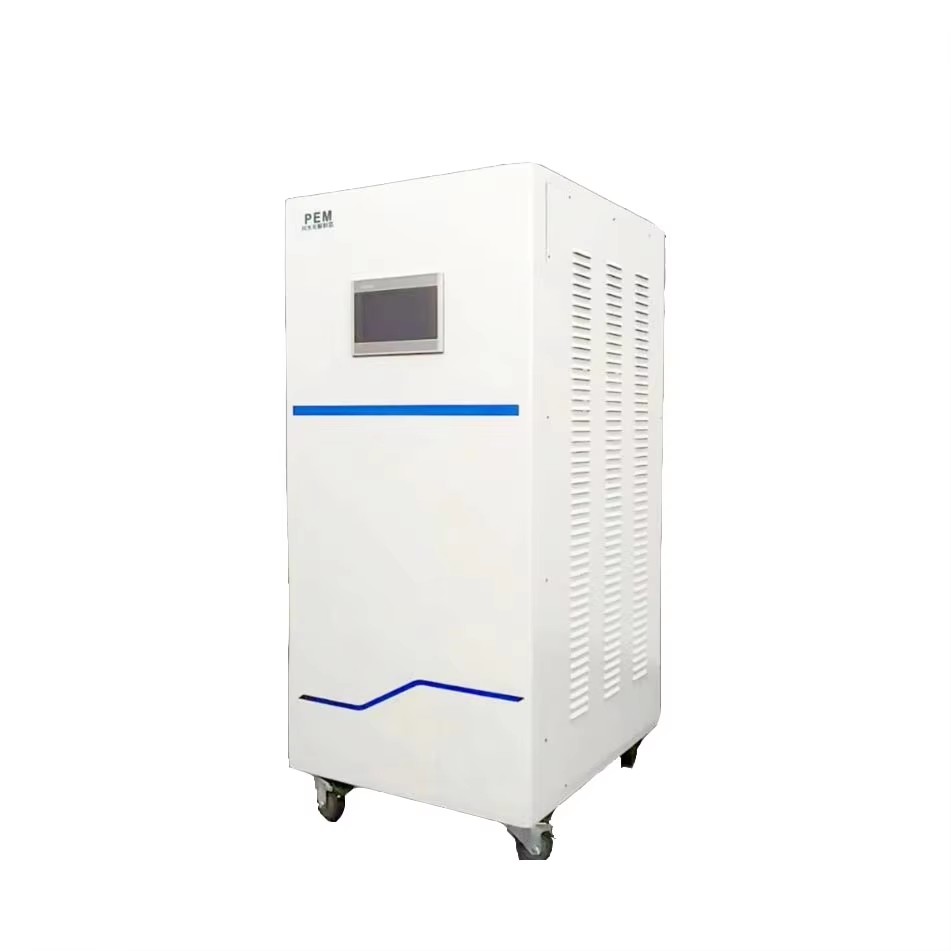

QLS-3000T/5000T hydrogen generator, is a class of high efficiency, energy saving, environmental protection high-tech patented products of PEM technology by electrolyzing pure water into high purity hydrogen (eliminate alkali). The core PEM electrode of the equipment is a highly active zero-pole distance catalytic electrode formed by the combination of a composite catalyst and a proton exchange membrane, which has high electrolytic efficiency. The whole machine has advanced design, reliable quality, integration of advanced electrolytic process and perfect electrical control system, high degree of automation, high purity of hydrogen produced, is the ideal equipment for all kinds of GC, thin layer chromatography gas distribution. This product can completely replace hydrogen cylinders, and it is safe and convenient to use.
Application:
It can also be used in chemical hydrogenation process, reduction gas protection in electronics industry, semiconductor material purification, metal welding, heavy metal smelting purification, metal surface protection, space vehicle, submarine water decomposition, synthesis, atomic energy industry heavy hydrogen concentration and other aspects.
Features and advantages:
★ PEM technology, no corrosion, no pollution, high purity.
★ The unit tank with low voltage, electrolytic cell internal resistance is small with no heat.
★ TSA variable temperature adsorption purification, maintenance free.
★ Low power consumption, sufficient gas production, fast pressure boost (3~5 minutes).
★ Steady voltage, steady flow output, and with the load gas consumption changes automatically tracking, automatic protection technology is complete and reliable.
★ With overpressure/water excessive/water shortage/underpressure/water quality/temperature/dev point/water flow alarm function, the machine automatically stops electrolyzing; Can realize remote start and stop; With S485 signal output.
★ Low noise.
The internal gas circuit part of the machine is sealed with full card sleeve, which has good sealing performance and is safe and reliable.
Specification
Model | QLS-3000T | QLS-5000T |
Hydrogen Flow (ml/min) | 0-3000 | 0-5000 |
Output Pressure (MPa) | ||
Purity (%) | >99.9995 | |
Overpressure Protection (MPa) | 2.0 | |
Voltage(V) | 220V，50-60Hz | |
Power (W) | <2000 | <3000 |
Alarm | Over/under pressure alarm;Water accumulation/shortage alarm; | |
Control System | 7 inch touch screen PLC One-click start | |
Purification method | TSA variable temperature adsorption | |
Water addition method | Connect pure water machine,automatic water supply | |
Dew point temperature (℃) | -70 | |
Net weight (kg) | about 100 | |
Dimension (L*W*H mm) | 650*550*1200 | |
environmental temperature (℃) | 1-40 | |
Relative humidity (%) | <85 | |
