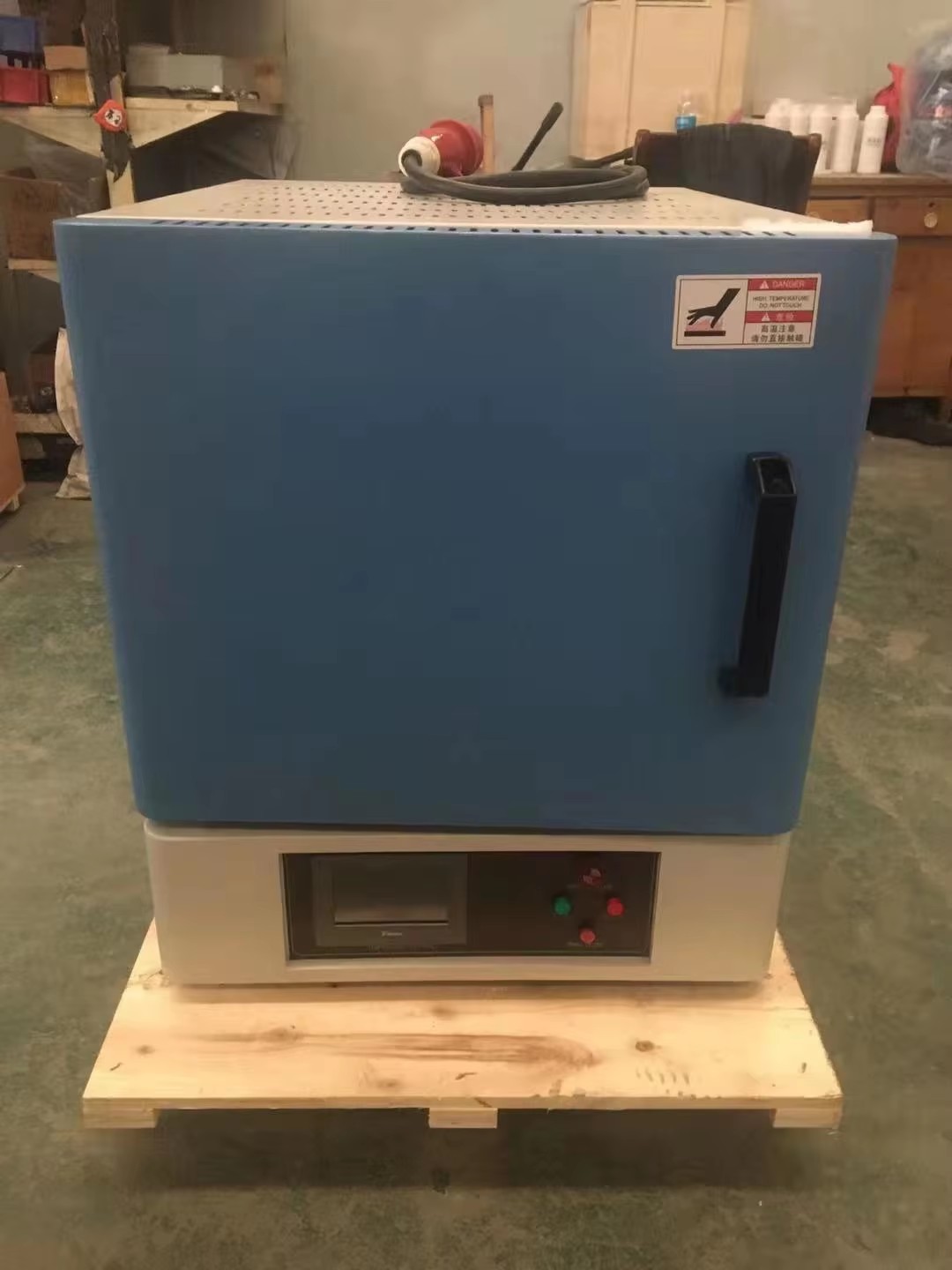

SGM.M30-12
NADE
380 volt
1
1 year
China
Product Description
Model | SGM.M30-12 | |
Basic parameters | furnace size (mm) | 300 (width) * 500 (depth) * 200 (height) (30L) |
maximum temperature | 1200 ℃ | |
temperature stability | ±1 ℃ | |
heating speed | set freely from 0℃/minute to 30 ℃/minute | |
furnace material | alumina ceramic fiber material (high heating speed and energy saving) | |
Heating control performance | power supply voltage | 380 volt |
heating power | 12kw (empty furnace absorbing power is about 30 %) | |
heating material | electric furnace wire (three - side heating, located on the left, right and top of furnace) | |
control mode | thyristor control, PID parameter self-tuning function, manual / automatic non-interference switching function, over-temperature alarm function, programmable 30 sections, temperature rise curve can be set freely, the instrument has temperature compensation and correction functions | |
display accuracy | ±1 ℃ | |
Flushing temperature value | Between 1 ℃ and 3 ℃ | |
sensor type | S type | |
display window | measure temperature, set temperature screen display, and heat power light column display | |
Other properties | energy-saving performance | light weight, fast temperature rise, more than 50 % energy saving, time saving and labor saving |
control features | modular structure of control system, long life design of key parts of furnace, simple and reliable product manufacturing process, good stability and high precision | |
structure design | integrated structure, with the 'full door' patent design | |
furnace body configuration list | one furnace body (including integrated controller), one sensor, three meters wire, one set of certificate of warranty card in instruction manual, three sets of standby insurance | |
consumables | furnace wire, sensor, safety tube | |
