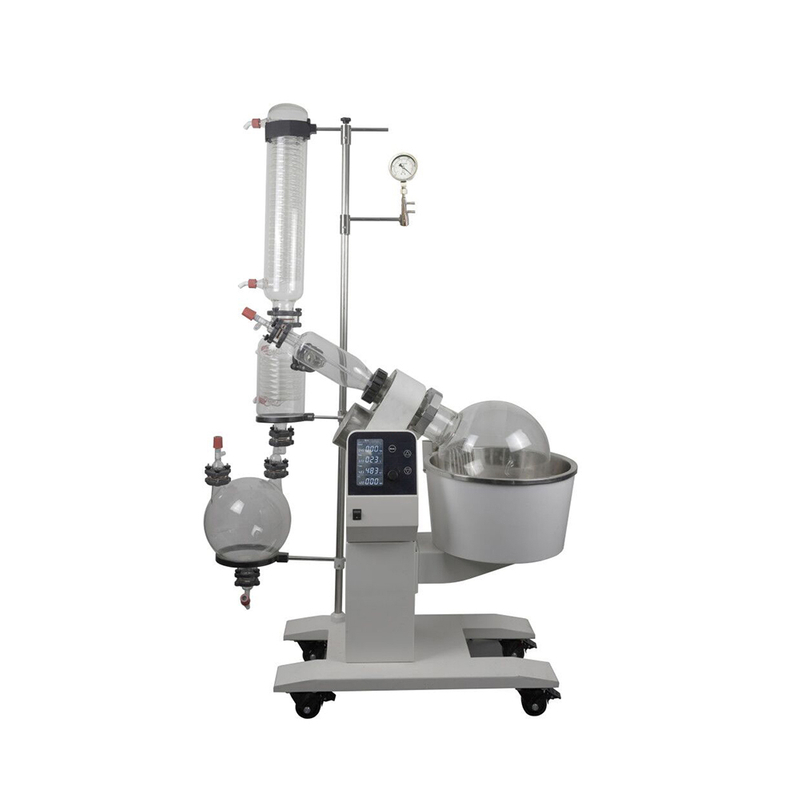

RE200-Pro Digital Rotary Evaporator

Speed Range: 10-150rpm
Heating Temp Range: RT to 180℃
Control Accuracy: water: ±1℃ oil: ±3℃
Display: LCD (temperature/speed/clockwise and Anti-clockwise/time)

Availability:
Inquire

  • RE200-Pro

  • NADE

  • 220V/4600W/50/60Hz

  • 1

  • 1 year

  • China

Product Description

Large Scale LCD Digital evaporator is mainly used for continuous distillation of a large number of volatile solvents under reduced pressure. It offers an excellent distilling solution in a wide range of applications.
NADE Vertical Condenser RE200-Pro 20L Industrial Scale Digital Rotary Evaporator


Feature

• Large LCD digital display with heating temperature, rotation speed, clockwise and Anti-clockwise, time information
• One-click automatic motor lifting (stroke 180mm), smooth and silent
• Water/oil heating bath with wide temperature range from room temp.to 180°C
• Speed range from 10 to 150rpm, and interval operation in clockwise and anticlockwise directions for drying process
• Three-layer high-efficiency condensing tube with large condensation area and strong evaporation capacity, ensuring efficient sample recovery
• Patented connector for evaporating flask easy&quick installation
• PTFE double sealing ring with excellent sealing performance
• A switching valve for continuous collection without compromising the system vacuum and solvent distillation
NADE Vertical Condenser RE200-Pro 20L Industrial Scale Digital Rotary Evaporator
Double-layer high-efficiency condener
large condensation area and strong evaporation capacity, ensuring efficient sample recovery.
NADE Vertical Condenser RE200-Pro 20L Industrial Scale Digital Rotary Evaporator
Switching valve design
A switching valve for continuous collection
without compromising the system vaccum and solvent distillation.
NADE Vertical Condenser RE200-Pro 20L Industrial Scale Digital Rotary Evaporator
Heating bath
• Water&oil bath;
• Enhanced lifetime through exclusive use of corrosion-free stainless-steel;
• The heating bath adopts special heat insulation structure design, so that the surface temperature is far lower than the temperature in the bath, to avoid
personnel burns.



Specification

Specifications

RE200-Pro

Performance


Temperature range

Room temp. ~180oC (both water and oil)

Control Accuracy

Water: ±1o C Oil: ±3oC

Rotation Speed

10~150rpm

Evaporation capacity

Max.4.0L/h (water vapor volume)

Ultimate vacuum

Less 2.6hpa

Function


Temperature control method

Micro processer PID control

Display

LCD (temperature/speed/clockwise and Anti-clockwise/time)

Stroke Displacement

automatic 180mm

Safety features

Motor over-current protection, Residual Current Device,lifting overload protection, Boil-dry protection,over-temperature protection

Constitute


Sample flask

Round flask 20L

Receiving flask

Round flask 10L with drain valve

Condenser

Two-section vertical triple serpentine condenser, cooling surface 1.2m2

Specification


Heating bath size

φ450×240mm

Takeover caliber

Cooling/suction nozzle outer diameter 16mm, vacuum pump nozzle outer diameter 16mm

Voltage/Frequency

1160mm×600mm×1860mm

Power

220V/4600W/50/60Hz
