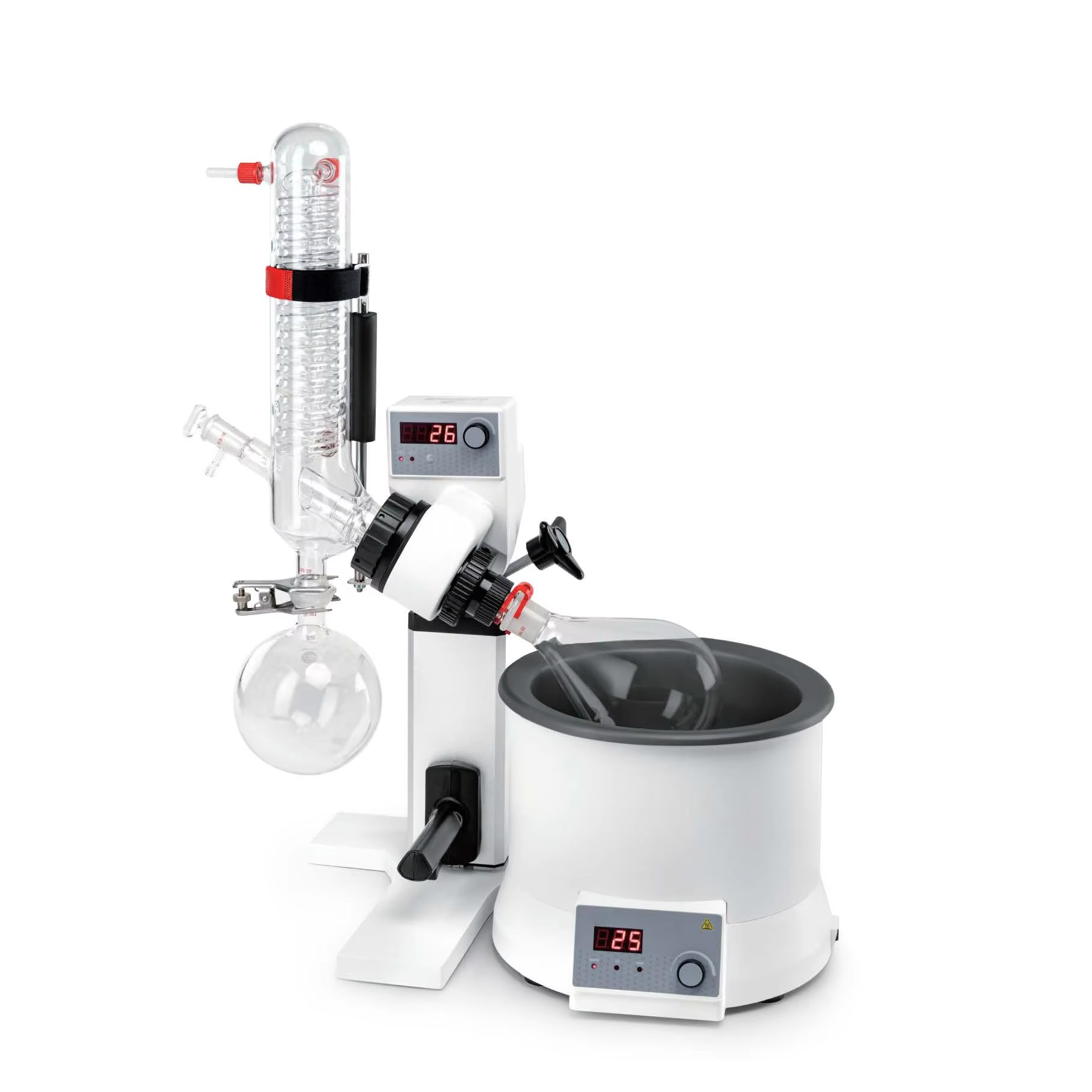

RE100-Pro Digital Rotary Evaporator

Speed Range: 20-280rpm
Heating Temp Range: RT to 180℃
Control Accuracy: water: ±1℃ oil: ±3℃
Display: LCD(speed, temperature, time)
Availability:
Inquire

  • RE100-Pro

  • NADE

  • 100~120/200~240V 50/60 Hz

  • 1

  • 1 year

  • China

Product Description

LCD Digital Rotary Evaporator is an essential instrument   in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It offers an excellent distilling solution in a wide range of applications.


Standard confuguration for RE100-Pro:


NADE Vertical Condenser 2L RE100-Pro Lab Scale Digital Rotary Evaporator


More optional accessories:

if you also need other accessory, such as vacuum pump, vacuum controller, cold water circulator, please inquire us.



Feature

• Digital display of both rotation speed and heating temperature allows for optimal control of all distillation processes

• Automatic motor lift releases the evaporating flask to a safe position in case of power failure
• 5L heating bath with wide temperature range from room temp. to 180°C,Water/oil heating mode can be changed only through a switch
• Overheating protection temperature at 220°C
• Boil-dry protection, automatically power off if heating without water/oil in the heating bath
• Speed range from 20 to 280rpm, and interval operation in clockwise and anticlockwise directions for drying process
• Patented condenser (cooling surface 1700cm²) with excellent cooling effect
• Ejection mechanism ensures easy removal of evaporating flask
• Patented double spring sealing ring made of PTFE provides an excellent sealing performance
• Remote function provides PC control and data transmission
• Optional glassware with explosion proof film available.


Specification

Specifications

RE100-Pro

Motor Type

Brushless DC motor

Speed Range

20-280rpm

Display

LCD(speed, temperature, time)

Clockwise and Anti-clockwise

Yes

Heating Temperature Range

Room temp. to 180℃

Control Accuracy

 water:±1℃ oil: ±3℃

Heating Power

1300 W

Stroke Displacement

automatic 150mm

Interval Time Setting Range

 1~999min

Dimension [D×W×H]

465×457×583mm

Weight

15kg

Permissible Ambient Temperature

 5~40℃

Permissible Relative Humidity

80%RH

Protection Class

 IP20

USB Interface

Yes

Voltage/Frequency

100~120/200~240V 50/60 Hz

Power

1400 W

 NADE Vertical Condenser 2L RE100-Pro Lab Scale Digital Rotary Evaporator
