Nade touch screen USB memory 4 operation modes humidity control system FISH Hybridization System TDH-500

  • 1 year
  • Laboratory Thermostatic Devices
  • other
  • China
  • RT+5°C~99.9°C
  • ±1°C
  • ±1°C
  • 1min~99h59min or 1sec~99min59sec
  • ±0.1°C
  • ≤3 min
  • ≤7 min
  • 30°C ~100°C
  • 12 Slides
  • 5.8kg

Product Description

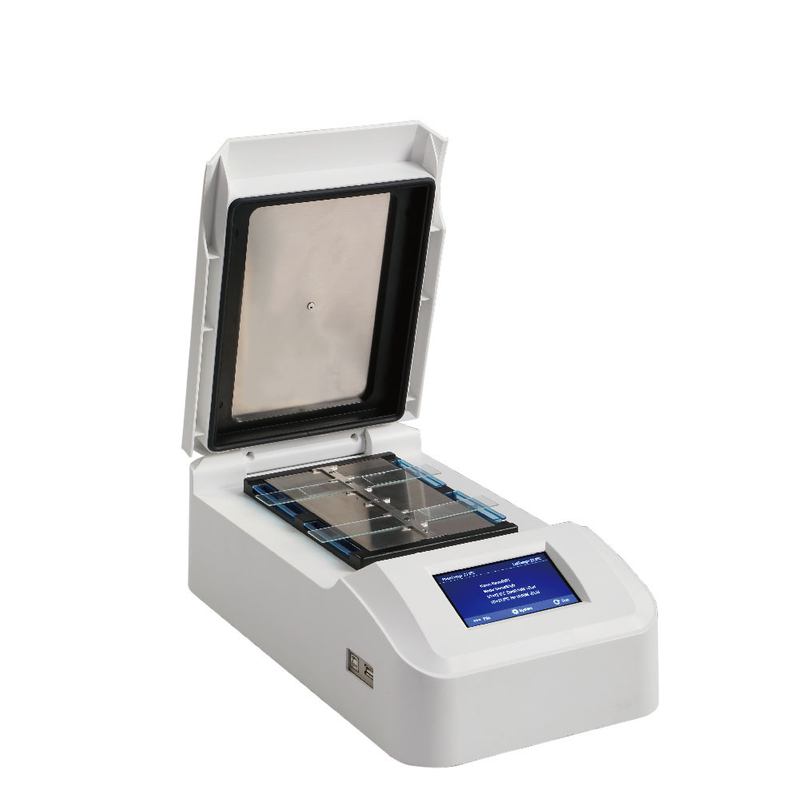

Nade touch screen USB memory 4 operation modes humidity control system FISH Hybridization System TDH-500

Programmable system and humidifying that automates the steps in a slide-based FISH procedure, and provides
walk-away convenience
for clinical and research personnel. Up to 12 slides can be easily be added or removed
with one hand. Two-side heating of slides that
allows achieving exact correspondence of the set and actual
temperature and maintaining uniform temperature across all slide positions.

1. Touch screen diaplay, easy programmable setting
Nade touch screen USB memory 4 operation modes humidity control system FISH Hybridization System TDH-500 Nade touch screen USB memory 4 operation modes humidity control system FISH Hybridization System TDH-500

2. Possibility to expert cycles data

Nade touch screen USB memory 4 operation modes humidity control system FISH Hybridization System TDH-500 Nade touch screen USB memory 4 operation modes humidity control system FISH Hybridization System TDH-500

3. Perfect hummidity control system
Nade touch screen USB memory 4 operation modes humidity control system FISH Hybridization System TDH-500

FEATURES

1. Touch screen allows for easy to read, program and use
2. it can run In-situ PCR experiments
3. Possibility to export cycles data via USB memory
4. Four operation modes: denaturation / hybridization, hybridization fixed temperature, custom, In-situ PCR
5. Can be used as a fixed temperature slide warmer
6. Rapid temperature warmp-up and accuracy of ±1°C
7. Superior temperature uniformity accross all slide positions
8. Perfect humidity control system

TEACHNICAL DATES

MODEL TDH-500
Temperature Control Range RT+5°C~99.9°C
Temperature Accuracy ±1°C
Temperature Uniformity ±1°C
Processing Timer 1min~99h59min or 1sec~99min59sec
Temp. Display Accuracy ±0.1°C
Heating Time ( 37°C to 95°C ) ≤3min
Cooling Time(95°C to 45°C) ≤7min
Temperature Control Programmable 30°C ~100°C
Capacity 12 Slides
Overall Dimensions (L x W x H) 420×225×143mm
Weight 5.8kg




Packaging & Shipping

Our Packaging Details:

Nade touch screen USB memory 4 operation modes humidity control system FISH Hybridization System TDH-500

Our Shipping

Nade touch screen USB memory 4 operation modes humidity control system FISH Hybridization System TDH-500

Nade Company Info

Nade touch screen USB memory 4 operation modes humidity control system FISH Hybridization System TDH-500 Nade touch screen USB memory 4 operation modes humidity control system FISH Hybridization System TDH-500

Our Services

Nade touch screen USB memory 4 operation modes humidity control system FISH Hybridization System TDH-500

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
