Zhejiang, China
NADE
7 inch touch screen (800x480 dots)
Quartz-halogen lamp 6V/10W
340-750nm
3~9nm
0~4.000Abs
0~2.000Abs ≤±1% 2~4.000Abs ≤±2%
0.001Abs
±1% (0-3Abs) ±2% (3-4Abs)
<6s for 96 wells plate
1 Year
Product Description
Nade Elisa Reader AMR-100
The AMR-100 Microplate Reader is a reliable and robust instrument for a wide variety of research and clinical
applications. It reads various kinds of 96-wells plates, and is equipped with shaking function. It can be used
as a stand alone instrument or under PC control with regular or APP software. It is easy-to-use the software.
Filters:
The AMR-100 Microplate Reader comes with four standard absorbance filters:405, 450, 492, and 630nm. We
also supply custom filters at 5~9nm intervals from 340 to 750nm on request.
Software:
AMR-100 keeps with high visual and logical user interface of software, it can be offered a comprehensive inbuilt
calculations, such as blank subtraction, quantitative curve fit, quanlitative classification and kinetic calculations,
as well as the versatile reporting tool and make data reduction.
FEATURES
1. Easy of use with 7 inch touch screen together with 3 external keys
2. A broad wavelength range of 340-750nm
3. Able to use individually or connect with PC and export results or a PAD with Android system
4. Absorbance range: 0.0~4.000Abs
5. 8 positions optical filter wheel, equipped with 4 standard optical filters
6. Fast and accurate measurement of 96-well plates within 6 seconds
7. Convenient built-in shaker
8. Wide-format internal thermal graphical printer
9. Wide applicability for life science and clinical laboratories
TECHNICAL DATES
| Model | AMR-100 |
| Display | 7 inch touch screen (800x480 dots) |
| Light source | Quartz-halogen lamp 6V/10W |
| Wavelength | 340-750nm |
| Half-bandwidth of filters | 3~9nm |
| Read-out range | 0~4.000Abs |
| Linearity (405nm) | 0~2.000Abs ≤±1% 2~4.000Abs ≤±2% |
| Resolution | 0.001Abs |
| Accuracy (405nm) | ±1% (0-3Abs) ±2% (3-4Abs) |
| Precision(405nm) | CV≤0.2% (0-3Abs) CV≤1.0% (3-4 Abs) |
| Test speed | <6s for 96 wells plate |
| Incubator | No |
| Shaking | 3 modes shaking: slow, medium and fast |
| User interface | Integrated software or PC control software |
| Operation | Touch screen, 3 pcs external keys |
| Storage | 200 programs and 100,000 test records |
| Ports | 3 USB ports, for PC, printer and USB-disk |
| Dimensions(W x D x H) | 440 x 295 x 225 mm |
| Weight | 10 kg |
ACCESSORIES
| Code | Description |
| AS-16051-01 | Optical filter 340nm (Matching) |
| AS-16051-02 | Optical filter 405nm (Standard) |
| AS-16051-03 | Optical filter 415nm (First Matching) |
| AS-16051-04 | Optical filter 450nm (Standard) |
| AS-16051-05 | Optical filter 492nm (Standard) |
| AS-16051-06 | Optical filter 540nm (Matching) |
| AS-16051-07 | Optical filter 570nm (First Matching) |
| AS-16051-08 | Optical filter 590nm (First Matching) |
| AS-16051-09 | Optical filter 630nm (Standard) |
| AS-16051-10 | Optical filter 650nm (First Matching) |
| AS-16051-11 | Optical filter 690nm (Matching) |
| AS-16051-12 | Optical filter 380nm (Matching) |
| AS-16051-13 | Optical filter 578nm (Matching) |
| AS-16051-14 | Optical filter 595nm (Matching) |

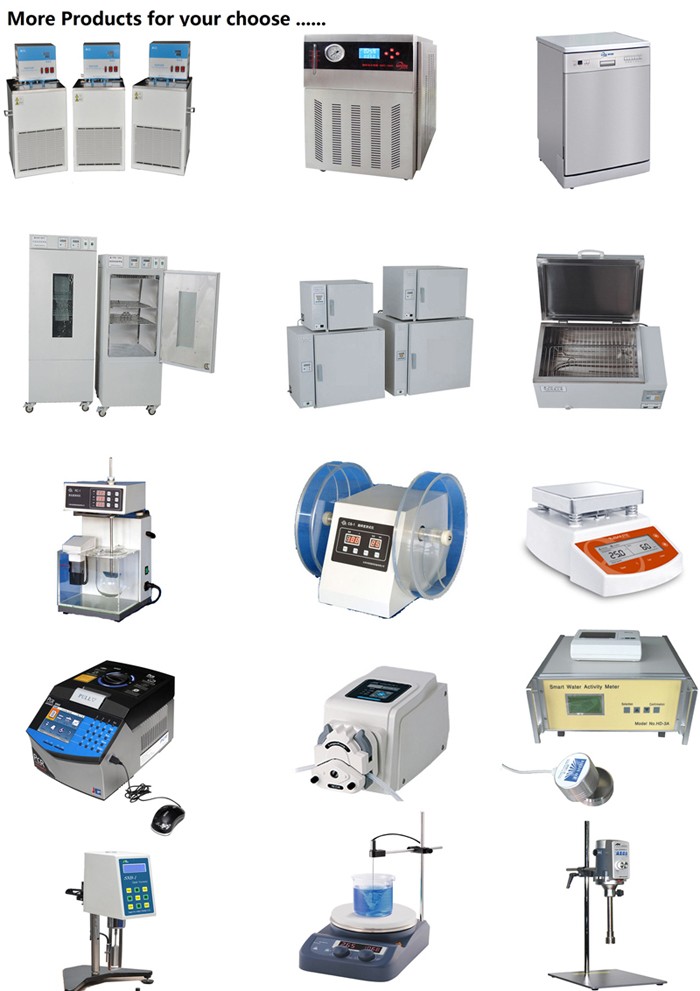

Related Product:
Automated Microplate Washer
ELISA plate 8/12/48/96 well
Our Packaging Details:
Our Shipping
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
Please send your request details to us by clicking "send" at the bottom!
