Nade Vacuum Package Gas Leak Detector Vacuum Leak and Seal Strength Testing Instrument LSSD-01

Product Description

LSSD-01 Leak and Seal Strength Detector is professionally applicable to the quantitative determination of seal performance, seal quality, burst pressure, compression resistance, torsion force and joint/disengaging force of flexible packages, aseptic packages, various plastic pilfer-proof closures, flexible tubes, caps and other materials.

Testing standards:

This test instrument conforms to the following standards:
ISO 11607-1, ISO 11607-2, GB/T 10440, GB 18454, GB 19741, GB 17447, ASTM F1140, ASTM F2054, GB/T 17876, GB/T 10004, BB/T 0025, QB/T 1871, YBB 00252005, YBB 00162002.

Application:

LSSD-01 Leak and Seal Strength Detector is applicable to the determination of:

Basic Applications

· Plastic Composite Bags Test the compression resistance of various plastic films, aluminum films, paper plastic composite films, aluminum plastic composite films and other packaging bags

· Flexible Tubes Including various flexible tubes used in daily chemical products and other industries, e.g. flexible tubes of toothpaste, face cream, cosmetics, pharmaceutics and food

· Creep Test Including various packaging bags and boxes

· Creep to Failure Test Including various packaging bags and boxes

Extended Applications

· Burst Test Of Blister Packs Including various blister packs

· Aerosol Valves Test seal performance of various aerosol valves, e.g. vales of pesticide, hair spray, auto spray paint and medical spray packages

· Three-Sided Sealing Materials Test withstand pressurization stress of packaging bags with three-sided seal and one-sided open

· High Pressure Test The maximum test pressure could reach 1.6MPa

· Pilfer-proof Closures Test seal performance of various pilfer-proof closures, e.g. closures used in packages of Coke, mineral water, beverage, edible oil, sauce (soy, vinegar and cooking wine), three-piece cans (beer and beverage), and paper cans (cylinder shape for potato chips )

Features:

1. Based on the positive pressure method and controlled by micro-computer, with LCD, menu interface and PVC operation panel

2. Dual test methods of restraint distension and unrestraint distension for customer's free choice

3. Different test modes of burst, creep, and creep to failure to meet different test requirements

4. Optional test range, "one key operation" and other intelligent designs support combinations of non-standard test conditions

5. Professional software provides automatic statistics of test data

6. Equipped with micro-printer and standard RS232 port for convenient PC connection and data transfer

7. Supports LystemTM Lab Data Sharing System for uniform and systematic management of test results and test reports

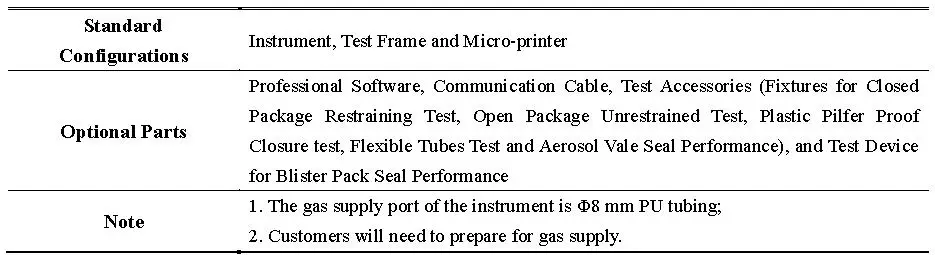

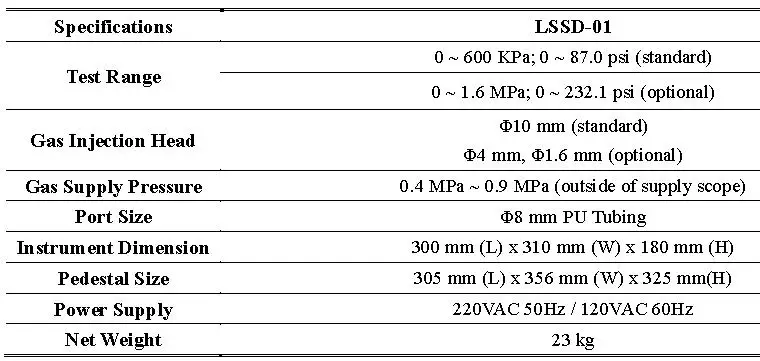

Specification
