1 year, 1 Year
other
Zhejiang, China
Nade
MFY-01
Electronic
Leak Tester
MFY-01
0 ~ -90 KPa
Dia360 mmx 585 mm (H)
Gas Supply Pressure
Dia6 mm PU Tubing
220V 50Hz
Packaging
20kgs
Product Description

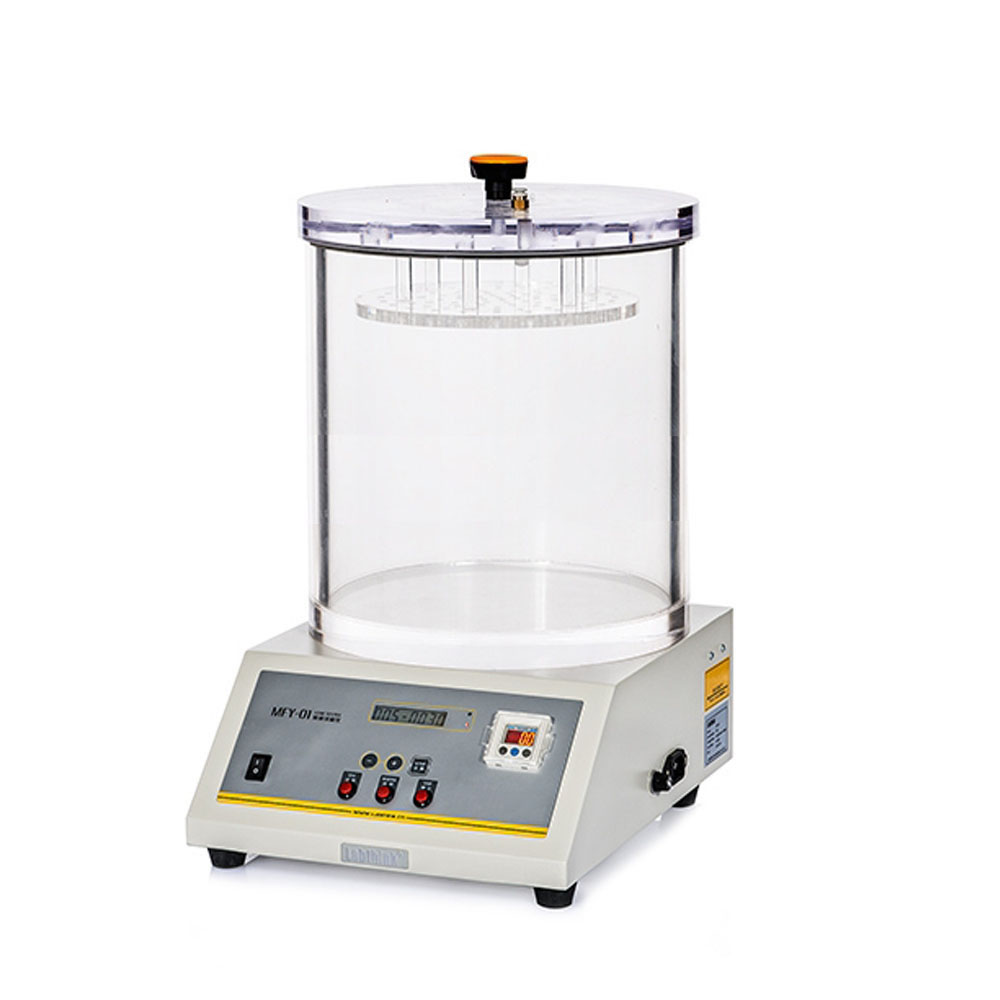

Nade Packaging Leak tester MFY-01 Standard Dia360 mmx 585 mm (H)
MFY-01 Leak Tester is professionally designed for the leakage tests of packages for food, drugs, medical instruments, daily chemical products, cars, electronic components, stationeries and other industrial products. The instrument also can be used to test seal performance of specimens after falling and compression tests.
Technical Specifications:
Specifications | MFY-01 |
Vacuum Degree | 0 ~ -90 KPa |
Accuracy | 1% FS |
Vacuum Chamber Effective Sizes | DIA 270 mm x 210 mm (H) (standard) |
DIA 360 mm x 585 mm (H) (optional) | |
DIA 460 mm x 330 mm (H) (optional) | |
Note: customization is available for other sizes | |
Gas Supply Pressure | 0.7 MPa (outside of supply scope) |
Port Size | DIA 6 mm PU Tubing |
Instrument Dimension | 300 mm (L) x 380 mm (W) x 450 mm (H) |
Power Supply | AC 220V 50Hz |
Net Weight | 12 kg |
Note:
1. The gas supply port of instrument is Dia6 mm PU tubing;
2. Customers will need to prepare for gas supply.
Application:
1. Glass Bottles, Pipes, Cans and Boxes
2. Plastic Bottles, Pipes, Cans and Boxes
3. Metal Bottles, Pipes, Cans and Boxes
4. Paper Plastic Composite Bags and Boxes
5. Electronic Components
6. Medical Instruments
7. Pen Refills
Our Packaging Details:
Our Shipping
Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.
We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
