1 year, 1 Year
0 ~ -90 KPa
Dia270 mmx 210 mm (H) (standard)
Gas Supply Pressure
Dia6 mm PU Tubing

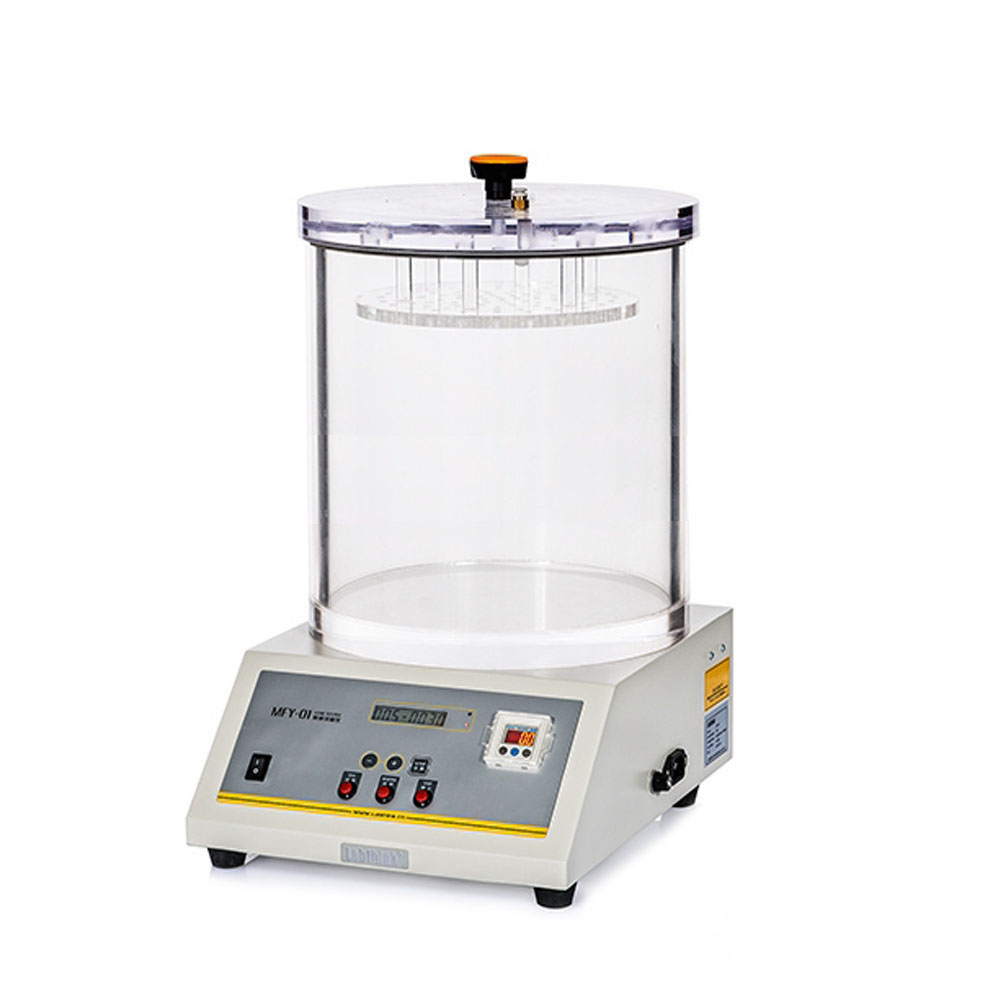

MFY-01 Leak Tester is professionally designed for the leakage tests of packages for food, drugs, medical instruments, daily chemical products, cars, electronic components, stationeries and other industrial products. The instrument also can be used to test seal performance of specimens after falling and compression tests.
Vacuum Degree: 0 ~ -90 KPa
Accuracy: 1% FS
Vacuum Chamber Effective Sizes: Dia 270 mm x 210 mm (H) (standard)
Dia360 mm x 585 mm (H) (optional)
Dia 460 mm x 330 mm (H) (optional)
Note: customization is available for other sizes
Gas Supply Pressure:0.7 MPa (outside of supply scope)
Port Size:Dia 6 mm PU Tubing
Instrument Dimension:300 mm (L) x 380 mm (W) x 450 mm (H)
Power Supply :AC 220V 50Hz
Net Weight :12 kg
Note: 1. The gas supply port of instrument is Dia6 mm PU tubing;
2. Customers will need to prepare for gas supply.
Our Packaging Details:
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
Please send your request details to us by clicking "send" at the bottom!
