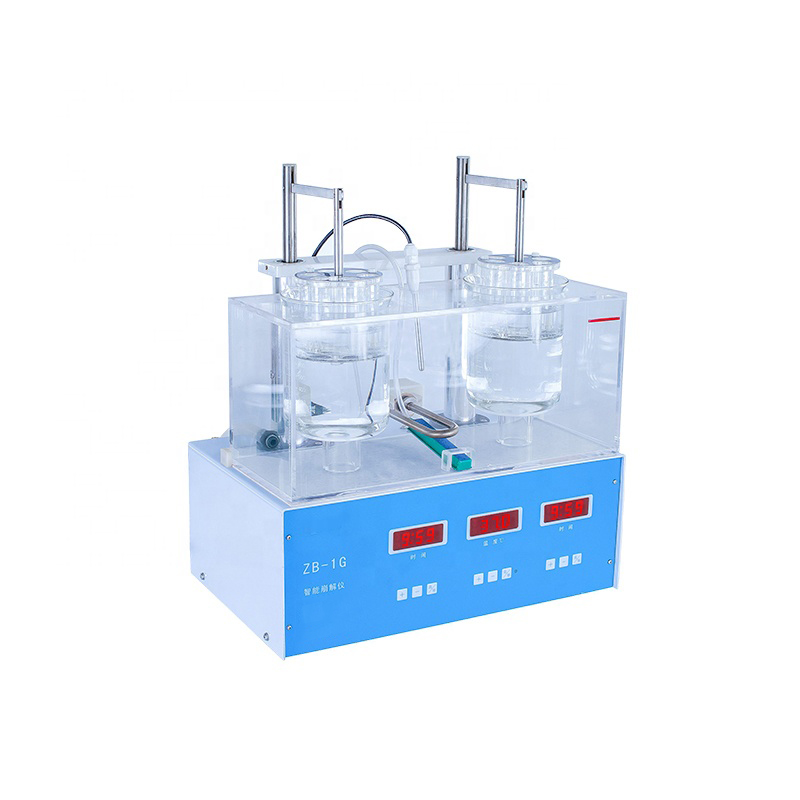

Nade Lab Tablet disintegration test apparatus ZB-1G tablet disintegration machine

Intelligent Disintegration tester is optical-mechanical integration drug testing apparatus which is developed according to the regulation of (Pharmacopoeia of Peoples Republic of China )about oral solid preparation disintegration testing. Its primary function is offering a test circumstance resembling the stomach of human body. The apparatus adopts SCM control system, processes thermostatic control to water bath of temperature by temperature sensor; processes control to two suspended baskets’ elevation and subsidence time by two synchronous machines.

Configuration is simple, operation is convenient.

•Apparatus automatic setting preset temperature is 37.0℃.

•Whether or not at temperature control state; you can reset temperature at any moment.

•The apparatus have left and right two suspended baskets, can separate independently to process the test. Left and right two suspended baskets time display window can separate to display each time to try or preset temperature.

•Testing time can be display added.

•At heating temperature control state apparatus has active protection function and alarm function when appearing status error.

•Timing range: preset random in 10 hours, display resolution is minute

•Temperature preset range: room temperature to 45.0℃ at random, display resolution is 0.1℃.

•Temperature control accuracy: ±0.5℃.

•Elevation and subsidence frequency for suspended basket: 30~32 times per minute

•Elevation and subsidence distance for suspended basket: 55mm±1mm

•Minimum distances from screen mesh to bottom of cup:25mm±2mm

•Mesh aperture width: 2mm (1mm aperture can be chosen)

•Operational Power Supply: AC 220V±10%, 50Hz

•Ambient temperatures: 5℃~35℃ relative humidity:≤80%

•Complete machine power consumption: 550W (include heater power)

•Outline size: 42*26*49cm

•Weight of complete machine: about 12Kg

Conforming to provision of Chinese Pharmacopoeia
