1 - 2 kg/h
54 - 56 mm
0.1 - 0.2 mesh
Medicine Processing, Lab Use
New
Disintegrate, disintegration apparatus
China
11 KG
1 Year
Video technical support, Online support
Competitive Price
No service
Medicine
None
None
Ordinary Product
Provided
Not Available
1 Year
Other
600w
1
30 - 32 time/min
54-56 mm
1-900 minutes
1000ml
Bj-1
110-220V
Product Description
Specifications
Detecting disintegration of solid
There are six tubes in one basket assembly
Automation

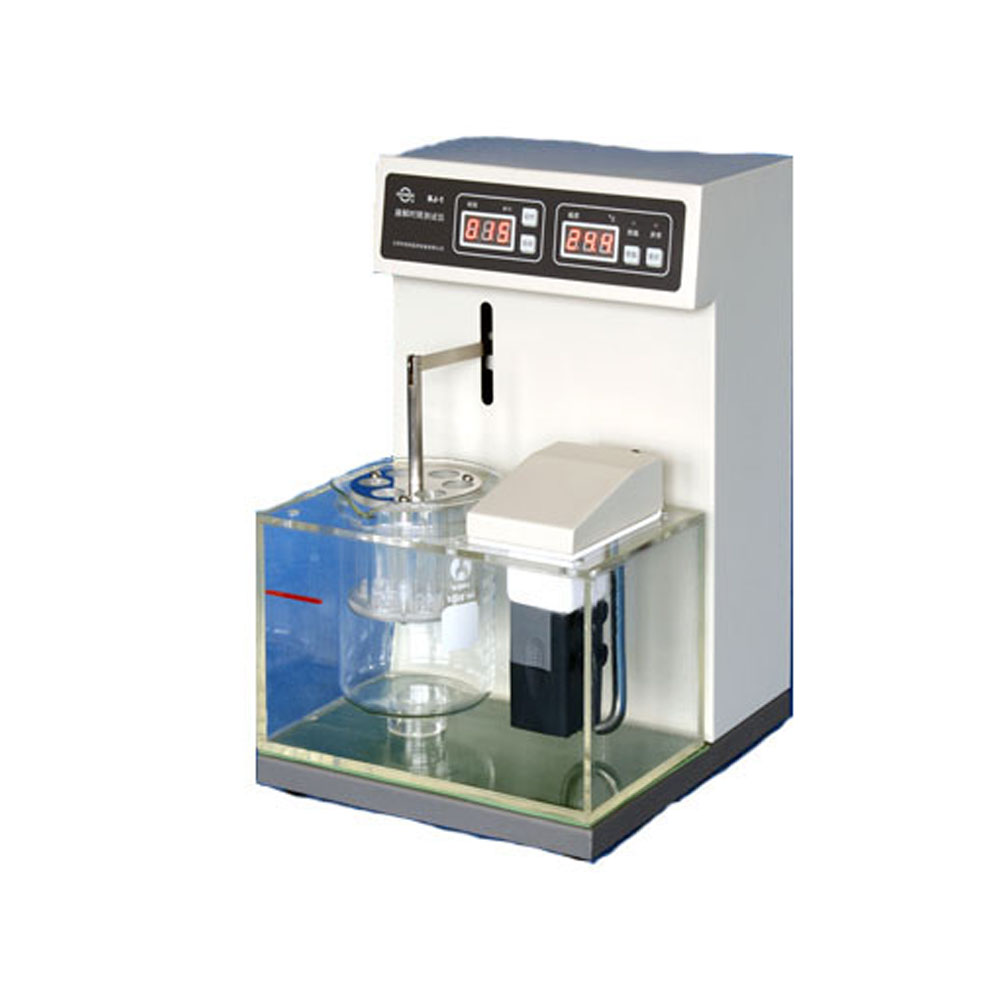

Disintegration tester
Descriptions:
BJ series of instruments are used for detecting disintegration of solid in prescriptive conditions.
Applicable standards:
National standard (Chinese codex)/2005/
Corporate standard (Disintegration tester) Q/12XQ0188-2004
Features:
1. There are six tubes in one basket assembly.
2. Auto stop at timing point.
3. The bath liquid can achieve an even temperature.
4. AMPU is used to automatically control the temperature, time and frequency of nacelle up and
down.
5. Parameters can be preset at anytime. The preset and real data can be displayed alternately in
time.
6. Automation: auto-test, auto-diagnose, auto-alarm.
Technical Parameters:
| Basket assembly | 1 |
| Nacelle up and down frequency | 30 - 32 time/min |
| Nacelle up and down range | 54-56 mm |
| Automatic time range | 1-900 minutes |
| Time accuracy | +/- 0.5 minute |
| The cubage of beaker | 1000 ml |
| The quantity of glass tube | 6 pcs |
| Controlling temperature range | Room temperature to 45 °C |
| Accuracy of controlling temperature | +/- 0.5 °C |
| Power | 600 W |
| Power supply | AC, 220V/50HZ or 110V/60HZ 1 phase |
| Net weight | 11 kg |
| Overall size | 260 x 300 x 420 mm |

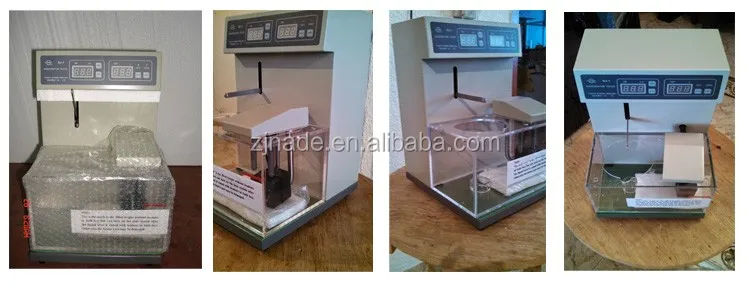

Our Packaging Details:
Our Shipping
Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.
We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.
Hot Selling Products..........
 |  |  |
 |  |  |
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
