Nade Lab Tablet Hardness Tester YPD-500N hardness tester for tablet

  • 1 year
  • hardness tester
  • other
  • Zhejiang, China
  • Nade
  • YPD-500N
  • 10-500N
  • 2-25mm
  • 0.01N
  • ±1.5% ±1digit
  • 0.1mm
  • ±0.1mm
  • DC 12V 3.0A
  • Dimension(L*W*H)
  • 12 kg
  • N/kg (optional)

Product Description

Nade Lab Physical Measuring Instrument Tablet Hardness Tester YPD-500N

Product Description

The Tablet Hardness Tester(YPD-500N) is a special instrument for measuring the hardness of tablet drugs. It adopts international advanced design concept and manufacturing technology. Its shape is smooth and beautiful, compact and stable, and it is highly reliable and easy to operate. Etc. This product is widely used in pharmaceutical factories, medical research, teaching and research and drug inspection departments.

Feature

l The built-in user permission management and data management system.

l The highly precise integrated circuit design ensures the accuracy of all measurements.

l More comprehensive, simpler and more human-centric operating interfaces and methods.

l A much smaller size reduces the occupying surfaces on the working tables in the laboratory.

l The high-definition transparent lens window above the hardness testing chamber enables clear and intuitive observation of each testing process.

l More accurate rotating speed; stable operation; low power consumption and high reliability.

l It contains a self-test and diagnostic function; the test data can be exported and printed via USB

Specification

Model

YPD-500N

Measurement range

Hardness: 10 – 500N,Tablet diameter: 2-25mm

Resolution

0.01N

Precision

±1.5% ±1digit

Diameter measurement range

2.0~25.0mm

Diameter resolution

0.1mm

Diameter measurement precision

±0.1mm

Hardness measurement unit

N/kg (optional)

Measurement method

Automatic single iteration/continuous multiple iterations (up to 1000 times)

Voltage

DC 12V 3.0A

Dimension(L*W*H)

Dimension(L*W*H)

Net weight

≈11.5 kg

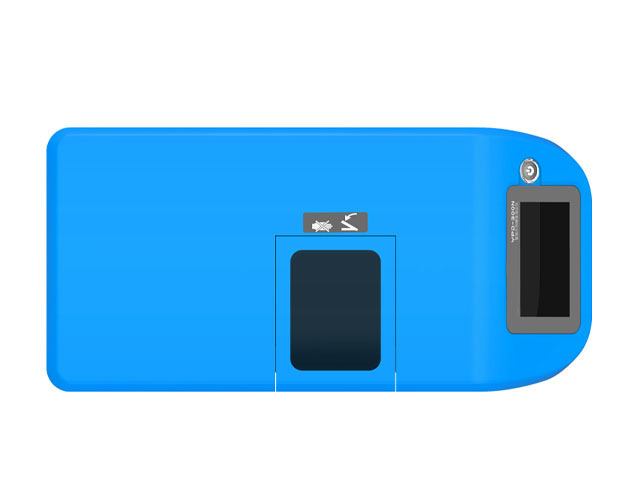

Real photos show

Nade Lab Tablet Hardness Tester YPD-500N hardness tester for tablet Nade Lab Tablet Hardness Tester YPD-500N hardness tester for tablet Nade Lab Tablet Hardness Tester YPD-500N hardness tester for tablet Nade Lab Tablet Hardness Tester YPD-500N hardness tester for tablet

Packaging & Shipping

Our Packaging Details:

Nade Lab Tablet Hardness Tester YPD-500N hardness tester for tablet

Our Shipping

Nade Lab Tablet Hardness Tester YPD-500N hardness tester for tablet

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

Nade Lab Tablet Hardness Tester YPD-500N hardness tester for tablet

Company Information

Nade Lab Tablet Hardness Tester YPD-500N hardness tester for tablet

Nade Lab Tablet Hardness Tester YPD-500N hardness tester for tablet

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
