1 year, 12 Months
other
Zhejiang, China
Nade
YD-1A
Electronic
(2~200) N/ (0.2~20) kg
(±1.5%) F.S. 1N
(3~20)mm
hardness tester
YD-1A
LED
220V/ 50Hz/ 10W or 110V/ 60Hz/ 10W
Yes
Product Description

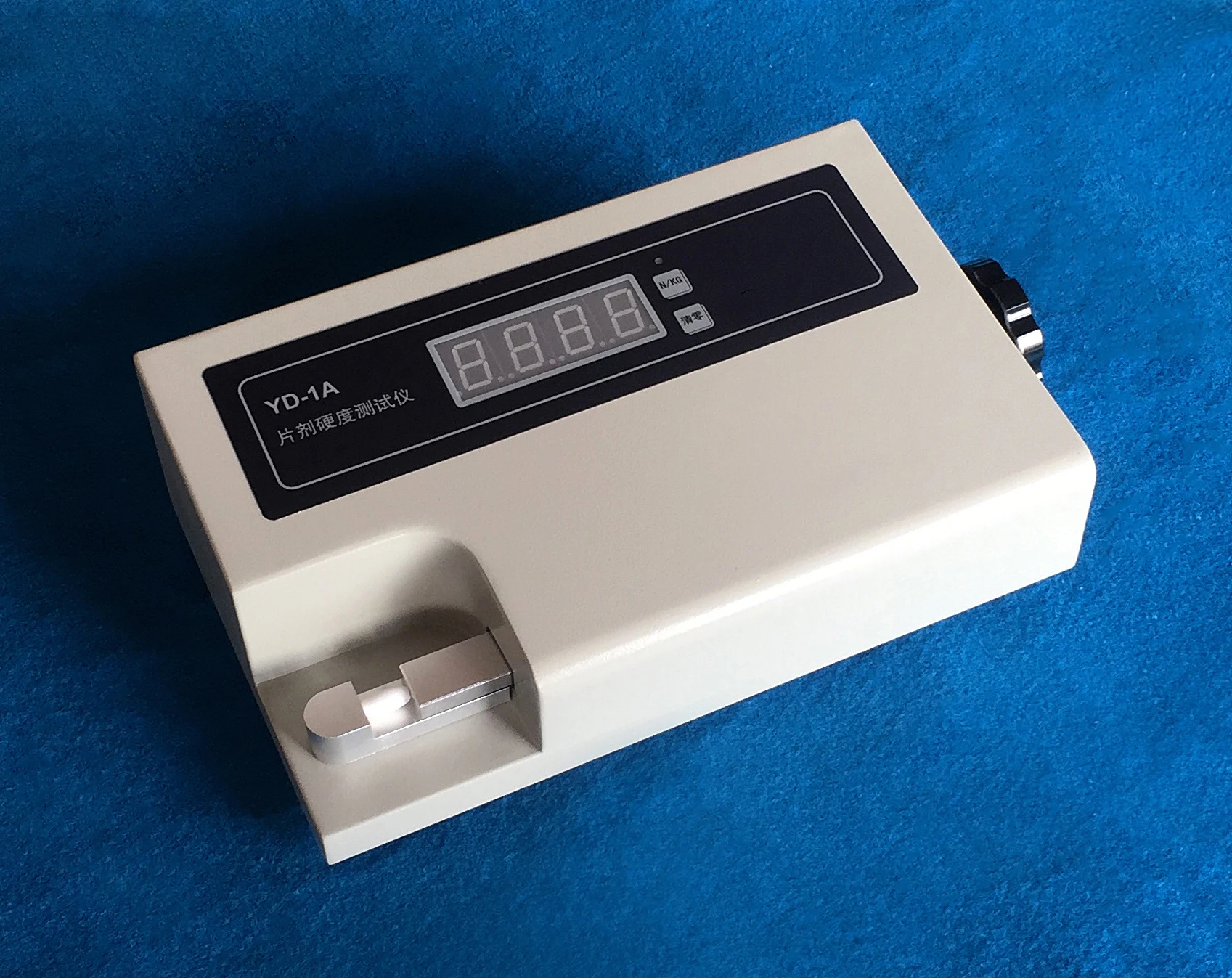

Nade Lab Hardness testing Equipment hardness testing machine Tablet Hardness Tester YD-1A
Tablet hardness testers are instruments for detecting breaking hardness of tablet.
Applicable standards:
Corporate standard(Tablet hardness tester )Q/12XQ0186-2010
Features:
The tablet is loaded and pressed artificially.
There is high accuracy press sensor and AD converter. Hardness data is displayed on LED.
Automatically zero after warming up.
Digital calibration and zero adjustment.
N / KG conversion by one-button.
It tests tablet hardness continuously.
Test data is displayed and locked automatically, so can test be reset and cycled.
Automation: auto-test, auto-diagnose, auto-alarm.
Specifications:
| Model | YD-1A |
| Hardness range | (2~200) N/ (0.2~20) kg |
| Hardness accuracy | (±1.5%) F.S. 1N |
| Diameter of tablet/ Moving distance of probe | 3~20mm |
| Continuous working time | >24 hours |
| Power | 220V/ 50Hz/ 5W, or 110V/ 60Hz/ 5W(optional) |
| Dimension | (400*240*160)mm |
| Net weight | 4.5KG |
| Packing information | 0.021CMB, 6.5kg gross weight |

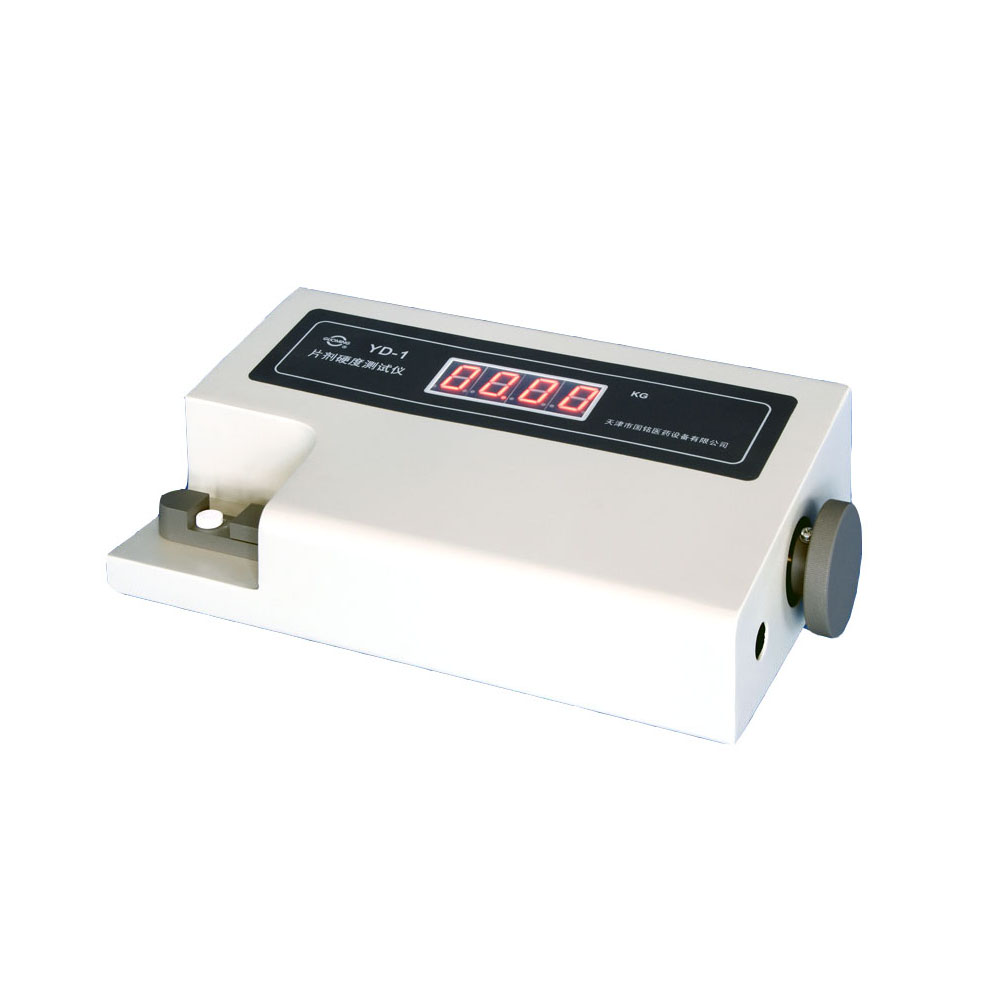

The Old model YD-1 is no more producing.
Our Packaging Details:
Our Shipping
Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.
We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
