Nade Lab Mix Instrument Vortex Mixer V6

  • Other
  • NO
  • OEM
  • Nade
  • V6
  • Zhejiang, China
  • 200-3000rpm/min
  • 1.0kg
  • 4.5mm
  • Circular motion
  • Vortex Mixer
  • V6

Product Description

Nade Lab Mix Instrument Vortex Mixer V6

Product Description

Vortex Mixer V6

The Porsche of the mixer: fast, stable, quiet.

This product is a high speed and small mixer, which is used for the oscillation of tubes, microtubes and micro plate.

Features:

1.It has simple, compact and beautifully design, Low gravity center, good stability when high speed operation.

2.Adopt the frequency induction motor, with long life, low noise and free maintenance.

3.Motor-driven directed and engine powerful. It is less than three seconds when raise to 3000rpm. No use to change the belt.

4.Various fixtures available and easy to fix, all the fixtures are automatic identification and automatic speed limit.

Safety and sample operation.

5.The mode of operation has inching and continuous. It is clear to use the key to switch.

6.The display of speed is simulative and has humanized sound reminders

7.Balance weight design. A good at oscillation and the amplitude can reach to 4.5mm.

8.The body of the instrument is made of metal and special material. It is stable, resistant UV and weather, and good properties for corrosion-proofing.

9.All the fixtures work efficiently between inching and continuous.

10.Instruments can running or stop soon when you set up the speed and then press start or stop.

Technical parameters

Model

V6

Oscillation mode

Circular motion

Circumference diameter

4.5mm

Range of speed

200-3000rpm/min,Stepless speed regulation

Power supply

100~240V

Max. Load

1.0kg

Identification of fixtures

All the fixtures are automatic identification and automatic speed limit. Safety and sample operation.

Timing & display

Non

Speed setting & display

0-3000rpm, Digital display

Drive

Frequency induction motor, direct-drive (not belted transmission)

Input power

20W

Output power

15W

Mode of operation

Continuous / Inching

Dimension(W×D×H)

210×150×69mm

Weight(net)

4kg

Standards of protect(EN 60529)

I P 21

Standard Configuration

Standard gasket V1.11

Optional of shim & fixtures

Standard shims, microplate fixtures (use for tubes, microtubes), flasks fixture

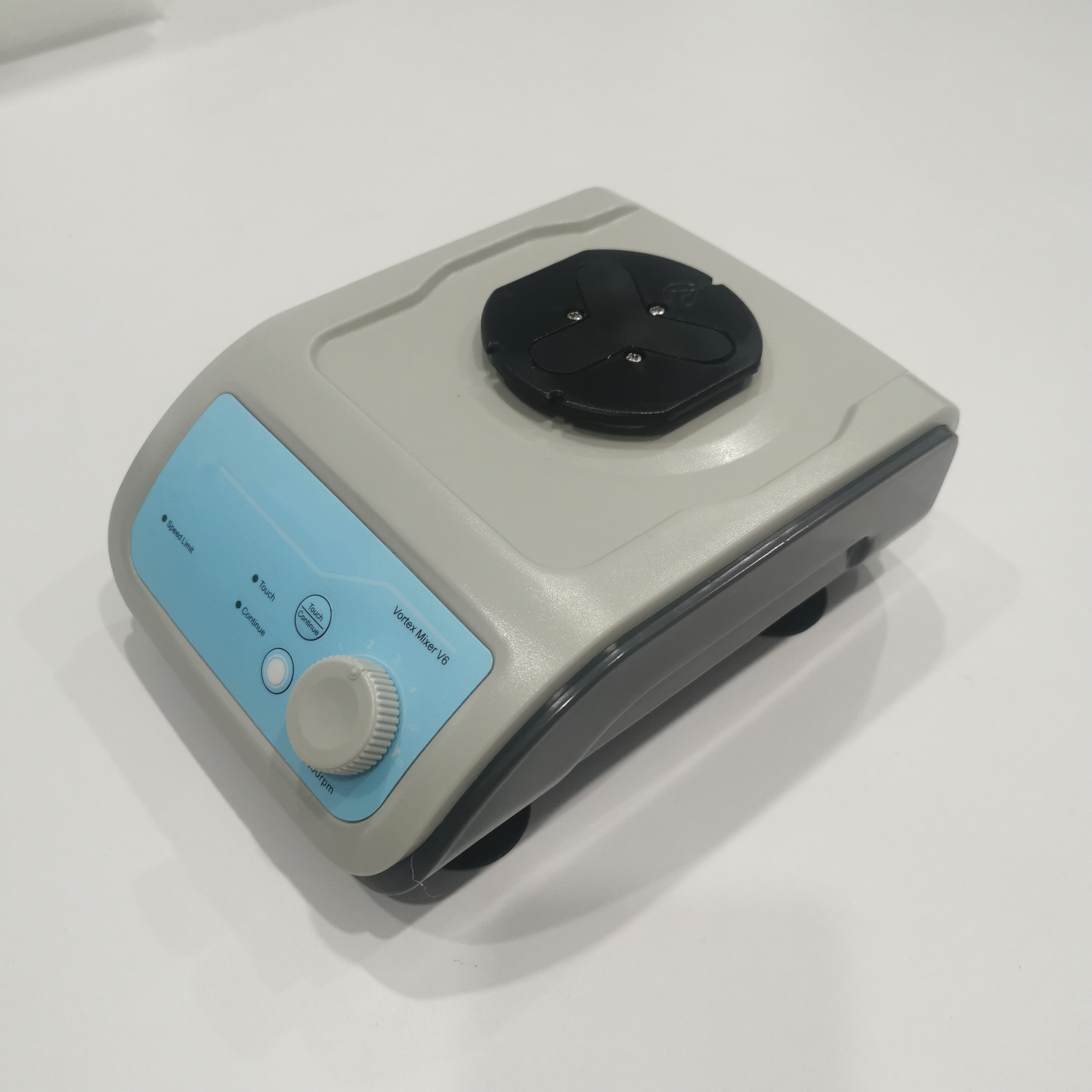

Real photos show

Nade Lab Mix Instrument Vortex Mixer V6

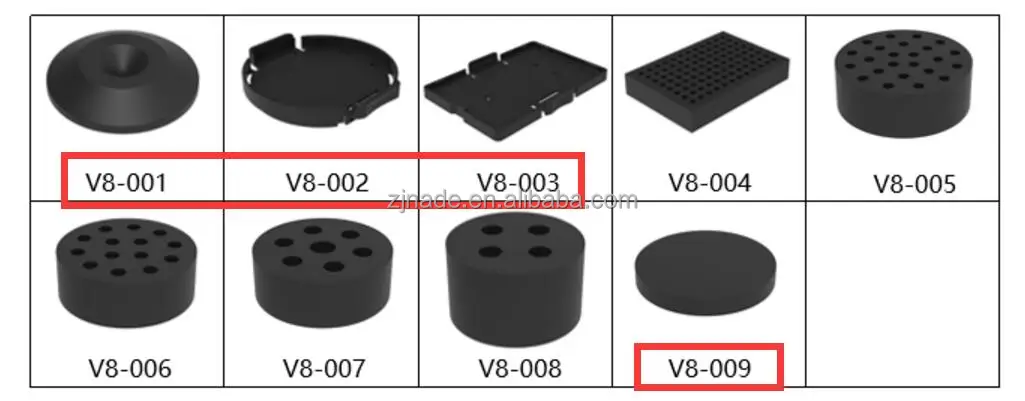

Optional accessories

There are different adapter for different application. Together with machine, we will offer V8-001,002,003,009 for free.

If you need more, pls contact us with adapter model.

Part NO.

Description

Max. Speed range

V8-001

Touch clamp,Suitable for less than φ30mm test tube and small container

3000rpm

V8-002

Flask clamp

V8-003

Microplate clamp

1300rpm

V8-004

Test tube adapter,used with V8-003,used to place 0.2ml PCR test tube, PCR row tube, 96-well PCR plate, pore size φ5.0mm×96

V8-005

Test tube adapter,used with V8-002,used to place 0.5ml test tube, aperture φ6.6mm×24

V8-006

Test tube adapter,used with V8-002,used to place 1.5/2.0ml test tube, aperture φ8.8mm×14

V8-007

Test tube adapter,used with V8-002,used to place 5.0ml test tube, aperture φ12mm×6

V8-008

Test tube adapter,used with V8-002,used to place 10/15ml test tube, aperture φ14mm×4

V8-009

Flask pad,used with V8-002,used to place diameter less than 65mm test tubes and small container

3000rpm

Nade Lab Mix Instrument Vortex Mixer V6
