MX-S Lab Instruments Vortex Mixer

speed range:0-3000rpm
Mixing motion:Orbital
Orbital diameter[mm]:4
Motor rating input[W]:58
Availability:
  • MX-S

  • NADE

  • MX-S

  • 100~120V /200~240V,50/60HZ

  • 1

  • 1 year

  • China

Product Description

Nade Lab Instruments Vortex Mixer MX-S

Vortex mixers are ideal for mixing liquid components in tubes, resuspension of cells, using an eccentric mechanism. They are widely used in clinical labs performing diagnostic tests and in biological & chemical analysis applications. It is perfect for mixing high-viscosity materials, such as waxes and slurries; to mix battery slurries, paints, pharmaceuticals and more.




Features

1. Variable speed of 0to 3000rpm for gentle shaking to rapid mixing of samples
2. Touch or continuous operation mode
3. Includes a standard top head for mixing a single test tube or other small vessel up to 30mm in diameter
4. Electronic speed control maintains constant speed even during changes in load
5. Steel base with specially designed vacuum suction feet provides stability and dampens vibration
6. Robust aluminum-cast construction

Specifications

MX-S

MX-F

Voltage[VAC]

110-120/220-240

110-120/220-240

Frequency[Hz]

50/60

50/60

Power[W]

60

60

Shaking movement

Orbital

Orbital

Orbital diameter[mm]

4

4

Motor rating input[W]

58

58

Motor rating output[W]

10

10

Permissible on time[%]

30

30

Speed range[rpm]

0-2500

2500

Speed display

Analog Scale<

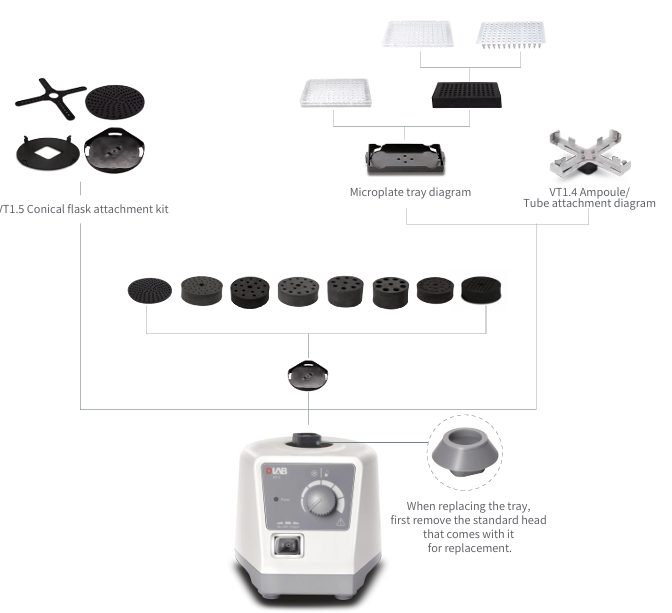

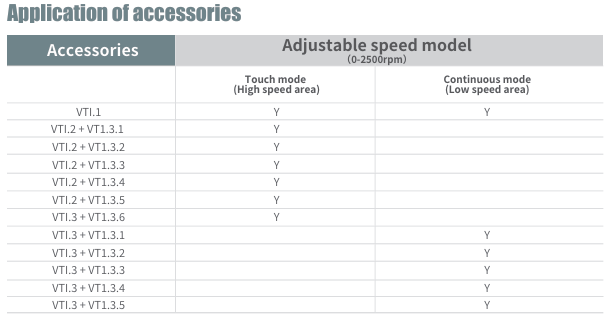

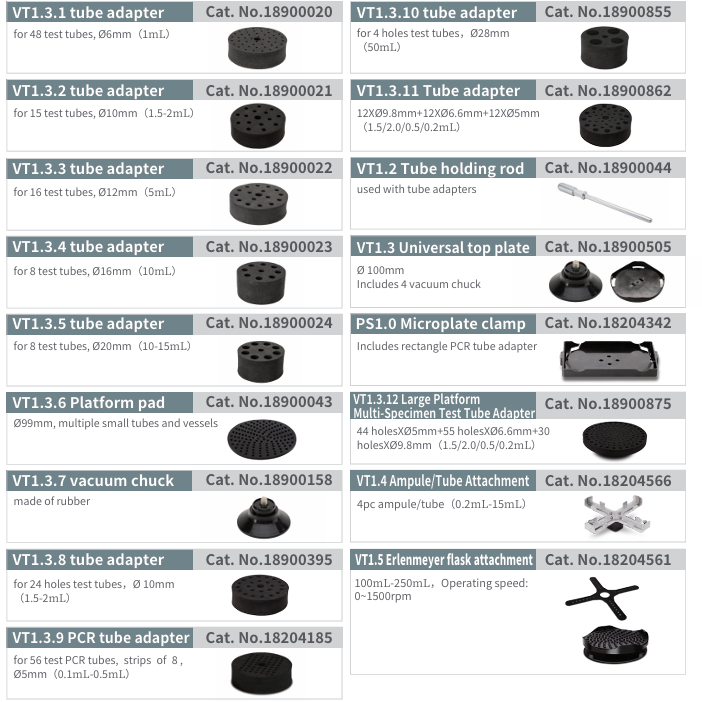

Accessories

屏幕截图 2025-07-28 111920屏幕截图 2025-07-28 111932屏幕截图 2025-07-28 111939
