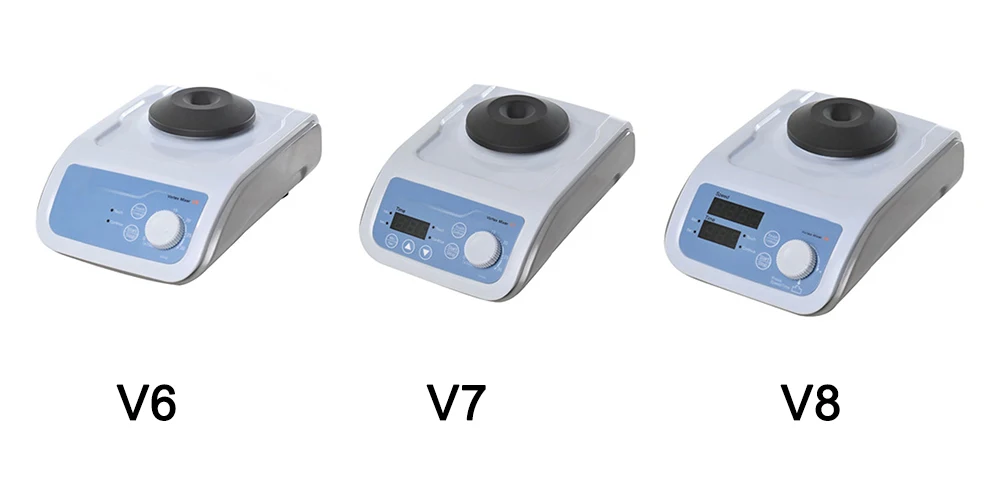

Nade Lab Digital Mixing Machine Vortex Mixer V8

  • Other
  • Nade
  • V8
  • Zhejiang, China
  • 200-3000rpm/min
  • 1.0kg
  • 4.5mm
  • Vortex Mixer
  • V8
  • Continuous / Inching
  • Lab Research
  • Lab Usage
  • 100~240V
  • 1.0kgs

Product Description

Nade Lab Mixing Machine Digital Vortex Mixer V8 Hangzhou Supplier

Product Description

Vortex Mixer V8

The Porsche of the mixer: fast, stable, quiet.

This product is a high speed and small mixer, which is used for the oscillation of tubes, microtubes and micro plate.

Features:

1.It has simple, compact and beautifully design, Low gravity center, good stability when high speed operation.

2.Adopt the frequency induction motor, with long life, low noise and free maintenance.

3.Motor -driven directed and engine powerful. It is less than three seconds when raise to 3000rpm. No use to change the belt.

4.Various fixtures available and easy to fix, all the fixtures are automatic identification and automatic speed limit. Safety and sample operation.

5.The mode of operation has inching and continuous. It is clear to use the key to switch.

6.It has timing and countdown function. The setting value of speed and working speed shows on digital display. It has humanized sound reminders and information display.

7.Balance weight design. A good at oscillation and the amplitude can reach to 4.5mm.

8.The body of the instrument is made of metal and special material. It is stable, resistant UV and weather, and good properties for corrosion-proofing.

9.All the fixtures work efficiently between inching and continuous.

10.Instruments can running or stop soon when you set up the speed and then press start or stop

Technical parameters

Model

V8

Oscillation mode

Circular motion

Circumference diameter

4.5mm

Range of speed

200-3000rpm/min,Stepless speed regulation

Power supply

100~240V

Max. Load

1.0kg

Identification of fixtures

All the fixtures are automatic identification and automatic speed limit. Safety and sample operation.

Timing & display

With timing and countdown function. Digital display:1s-999min

Display of speed

Simulate setting and instruction

Drive

Frequency induction motor, direct-drive (not belted transmission)

Input power

20W

Output power

15W

Mode of operation

Continuous / Inching

Dimension(W×D×H)

210×150×69mm

Weight(net)

4kg

Standards of protect(EN 60529)

I P 21

Standard Configuration

Standard gasket V1.11

Optional of shim & fixtures

Standard shims, microplate fixtures (use for tubes, microtubes), flasks fixtures

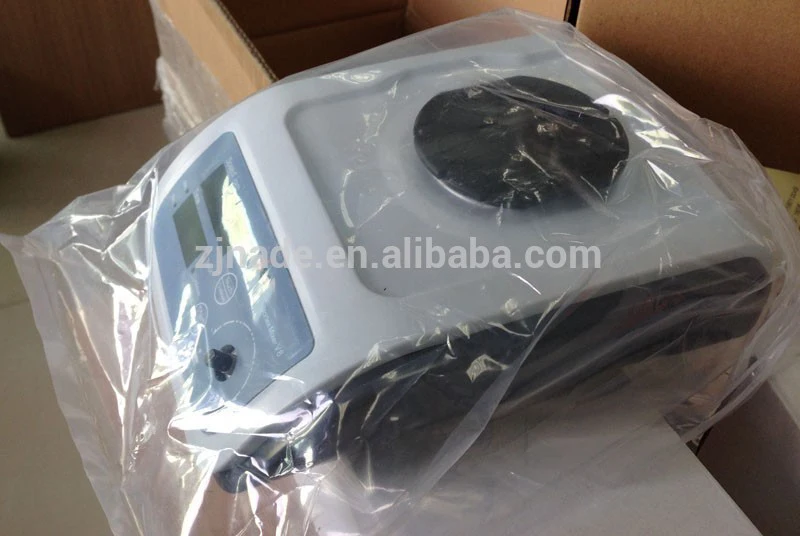

Real photos show

Nade Lab Digital Mixing Machine Vortex Mixer V8

Nade Lab Digital Mixing Machine Vortex Mixer V8 Nade Lab Digital Mixing Machine Vortex Mixer V8 Nade Lab Digital Mixing Machine Vortex Mixer V8 Nade Lab Digital Mixing Machine Vortex Mixer V8

Packaging & Shipping

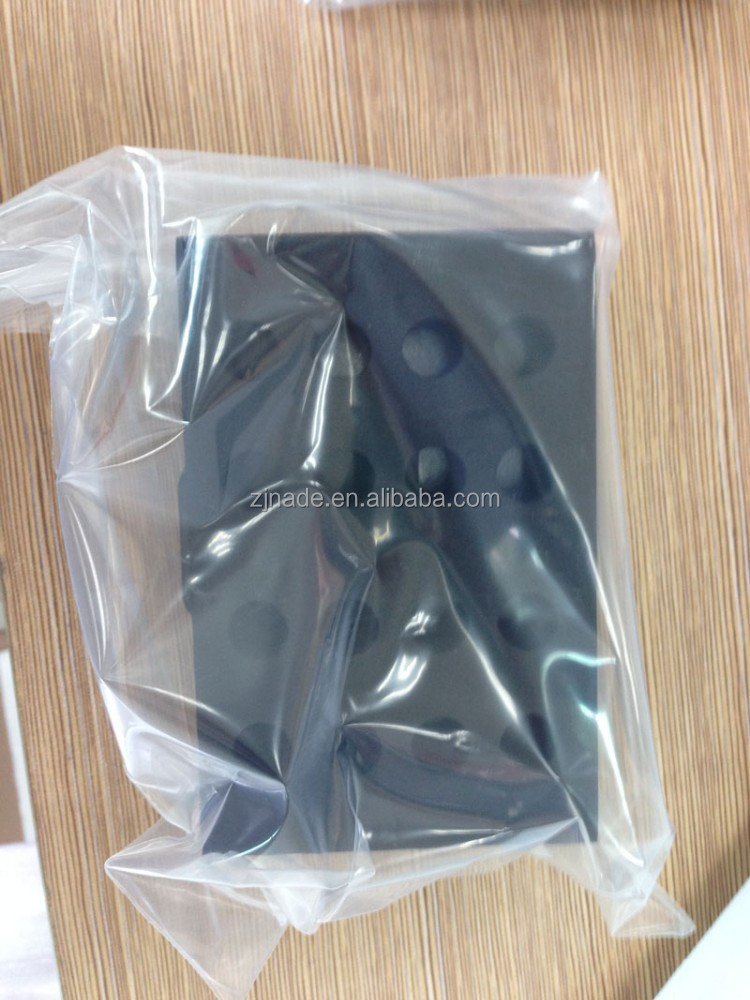

Our Packaging Details:

Nade Lab Digital Mixing Machine Vortex Mixer V8

Our Shipping

Nade Lab Digital Mixing Machine Vortex Mixer V8

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

Nade Lab Digital Mixing Machine Vortex Mixer V8

Company Information

Nade Lab Digital Mixing Machine Vortex Mixer V8

Nade Lab Digital Mixing Machine Vortex Mixer V8

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
