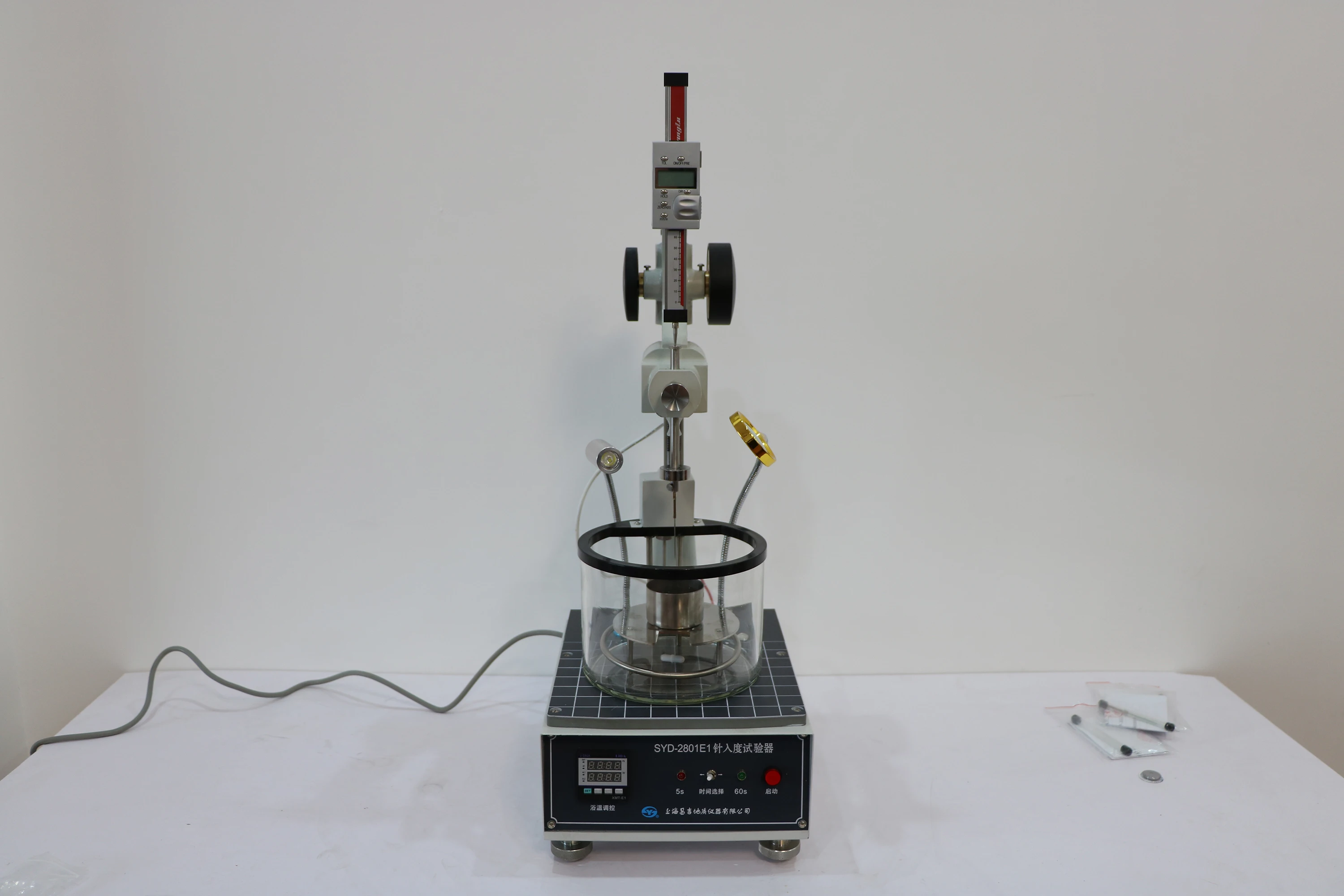

NADE SYD-2801E1 Laboratory Penetrometer(0-600) penetrat for Asphalt/Bitumen,liquid petroleum asphalt,industry,food materials

  • China
  • NADE
  • AC(220±10%)V, 50Hz
  • 0 penetration~600 penetrations
  • 0.1 penetration
  • 5s or 60s, can be setted at will,bias within ±0.1s
  • 200 W
  • 25±0.1 ℃
  • High accuracy digital temperature controller
  • Hard glass bath
  • 2.5g±0.05g
  • 280mm*350mm*700mm(L*W*H)

Product Description

Product Description

This instrument is designed and made as per T0604-2011 Penetration Test for Bituminous Materials in JTG E20-2011 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering and ASTM D5 Standard Test Method for Penetration of Bituminous Materials. It is used to determine the penetration of pavement petroleum asphalt, modified asphalt, liquid petroleum asphalt and emulsified asphalt. It is also suitable to test solid particle, powder, colloid and raw-food materials such as cheese, glycine, butter, cream and leavening. It can be widely used in food industry, highway engineering and other industrial fields.

Feature

1. The needle holder is designed novelly. It can be moved vertically and adjusted roughly and finely without measurable frication.

2. It adopts novel heating design. The heating and temperature measuring appliance is separated from water bath. Easy to operate.

3. Equipped with automatic temperature controller and high accuracy temperature sensor, the temperature can be set conveniently and control precision is high.

4. It adopts newly designed digital meter. The measuring data is stable and reliable.

Specification

Model

SYD-2801E1

Measurement range

(0~600) penetration scale

Resolution

0.01mm

Timing controller

5s or 60s, can be setted at will,bias within ±0.1s

Heating power

200W

Temperature control accuracy

25℃±0.1℃ (Note: The ambient temperature shall not exceed 20℃)

Temperature control mode

High accuracy digital temperature controller

Constant temperature bath

Hard glass bath

Stirring

Automatically stirred by magnetic stirrer

Standard needle

2.5g±0.05g

Needle holder

It can be adjusted roughly and finely without measurable frication to make the tip aim the sample conveniently.

Power supply

AC(220±10%)V, 50Hz

Dimension

280mm×350mm×700mm

Optional accessories

1. Grease masher : It is used in the tests which determine the cone penetration of lubricating grease (or petrolatum)

2. Standard cone: 102.5g±0.05g

3. Other cones:1/2 scale cone,1/4 scale cone

Notes:

1. The reagent and equipments for installing the instrument are supplied by end-users themselves.

2. The Mercury thermometer needs to be purchased by the end user. Parameter:0~50 ℃, scale division is 0.1 ℃).

3. The usage,management and saving of poisonous and harmful reagent,pls operate according to the relative principle.

4. PLS read the operation manual and industry standard before using the instrument.
