HSY-0983A
NADE
1
Product Description

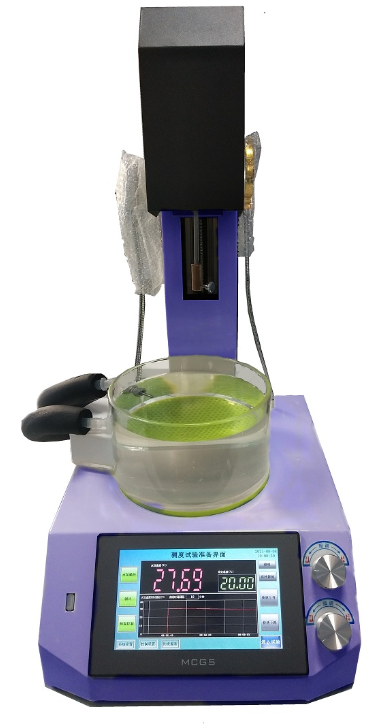

The Fully Automatic Drug Pentrometer is an innovative product with independent intellectual property rights, developed in alignment with the "Made in China 2025" initiative. Designed and manufactured in strict compliance with multiple national standards and industry regulations, this instrument serves multi-sector testing needs for pharmaceuticals, food raw materials, and industrial materials.
✅ Fully automatic measurement with simple operation
✅ High-precision temperature control system (±0.1℃)
✅ Multi-standard compatibility for versatile applications
✅ Independent intellectual property with innovative design
✅ Widely applicable across pharmaceuticals, food, transportation, highway engineering, and other industrial sectors
Principle:

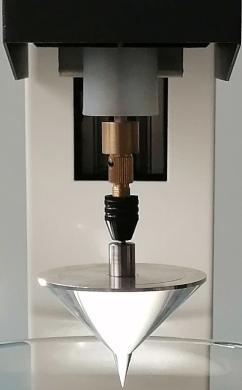

The sample plate containing the specimen is placed in a thermostatic bath at 25℃ ± 0.1℃. A standard cone assembly with a total mass of 150g (or optional 1/2 cone and 1/4 cone) falls vertically without friction. The depth of vertical penetration into the sample within 5 seconds after release is defined as the cone penetration value, which reflects the viscosity of the sample.
Key Parameters:
Temperature Control: 25℃ ± 0.1℃
Cone Total Mass: 150g (standard cone / 1/2 cone / 1/4 cone optional)
Measuring Time: 5 seconds
Measurement Index: Vertical penetration depth (unit: 0.1mm)
Cone Penetration Value | Sample Characteristics |
|---|---|
Higher Value | Lower viscosity, softer texture |
Lower Value | Higher viscosity, harder texture |
Industry Sector | Test Objects |
|---|---|
Pharmaceutical | Ointments, eye ointments, and base materials (vaseline, lanolin, beeswax, etc.) |
Food Industry | Cheese, sugar gum, butter, margarine, cream, fermented products, etc. |
Industrial Materials | Solid fine particles, powders, colloids, frozen bodies, etc. |
Transportation Engineering | Petroleum asphalt, highway engineering asphalt and asphalt mixtures (optional) |
Specifications
Technical parameter | Technical indicators |
Measuring range | Zero~500AwlDegree of entry |
Warm water bath | [Temperature measurement range] 0.00～99.99℃; [Temperature control range] 5.00-50.00℃; [Display resolution]0.01℃; [Temperature control accuracy]≤±0.5℃; |
Time control | [Time Display and Control]0-250Seconds (arbitrary setting); [Display resolution] 0.1 seconds; [Time control accuracy]≤±0.1 S; |
Displacement detection | Adopt high-precision photoelectric sensor and split structure. [Scope of measurement]0-66mm; [Display resolution]0.01Mm (0.1 tapered degree); [Relative displacement accuracy]≤±0.1mm; |
Store data | 200 groups |
Conical components | Full-size cone mass 102.5±0.05g, cone mass 47.5±0.05g; 1/2 standard cone mass: 22.5±0.025g, cone mass: 15±0.025g; 1/4 ratio standard cone and cone rod total mass: 9.38±0.025g; |
External size | 390mm×310mm×575Mm (length × width × height); |
Working power supply | 220±10%VAC/50Hz; |
The power of the whole machine | Up to 350W; |
Net weight of the whole machine | 12.5Kg; |
Configuration
Name | Unit | Quantity | Remarks |
Main unit of taper inability tester | You | 1 | |
Plexiglass sink (hot water bath) | Single | 1 | Built-in water pump, temperature sensor |
Silicone gasket | Put up | 1 | Φ180mm, basin anti-slip and heat insulation |

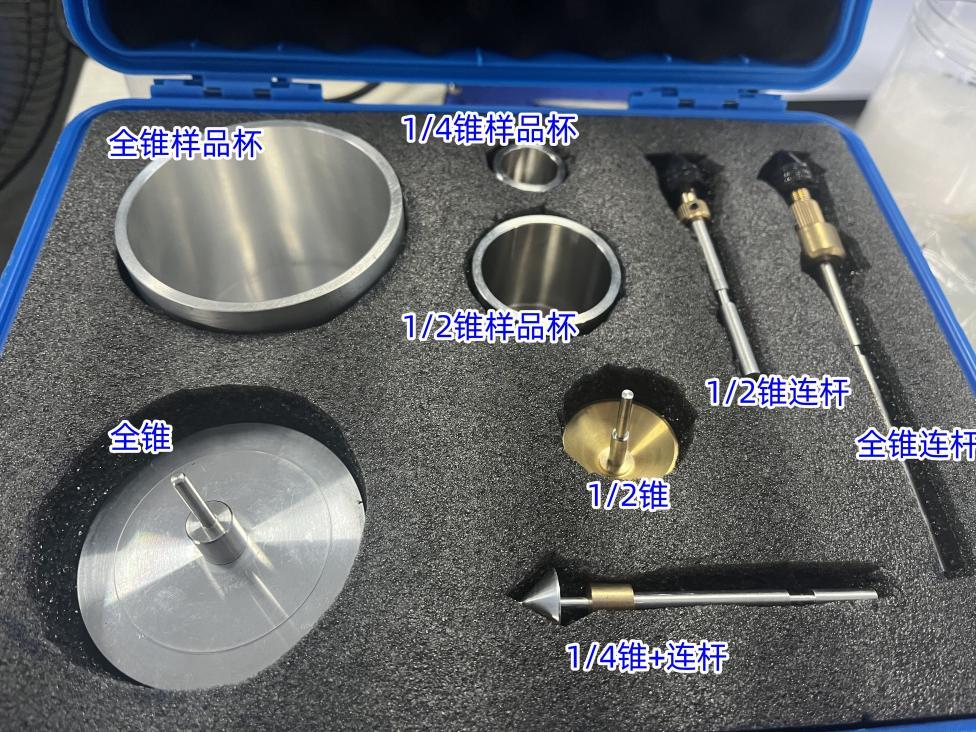

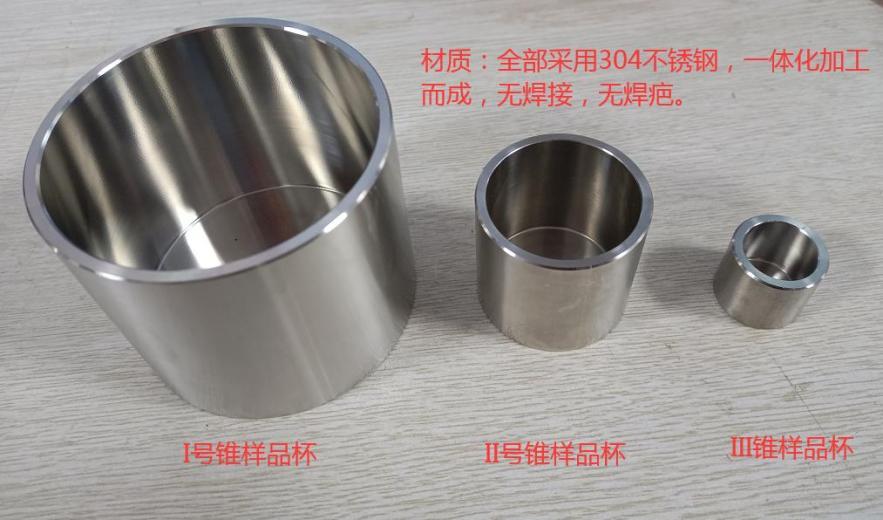

No. I, II , ThreeNumber cone and sample cup | Case | 1 | |
Plexiglass support seat | Single | 1 | |
Insulation pipe | Root | 2 | |
Power cord | Root | 1 | |
Fuse | Single | 2 | |
Instructions | Part | 1 | |
Warranty card | Part | 1 | |
Certificate of qualification | Part | 1 |
