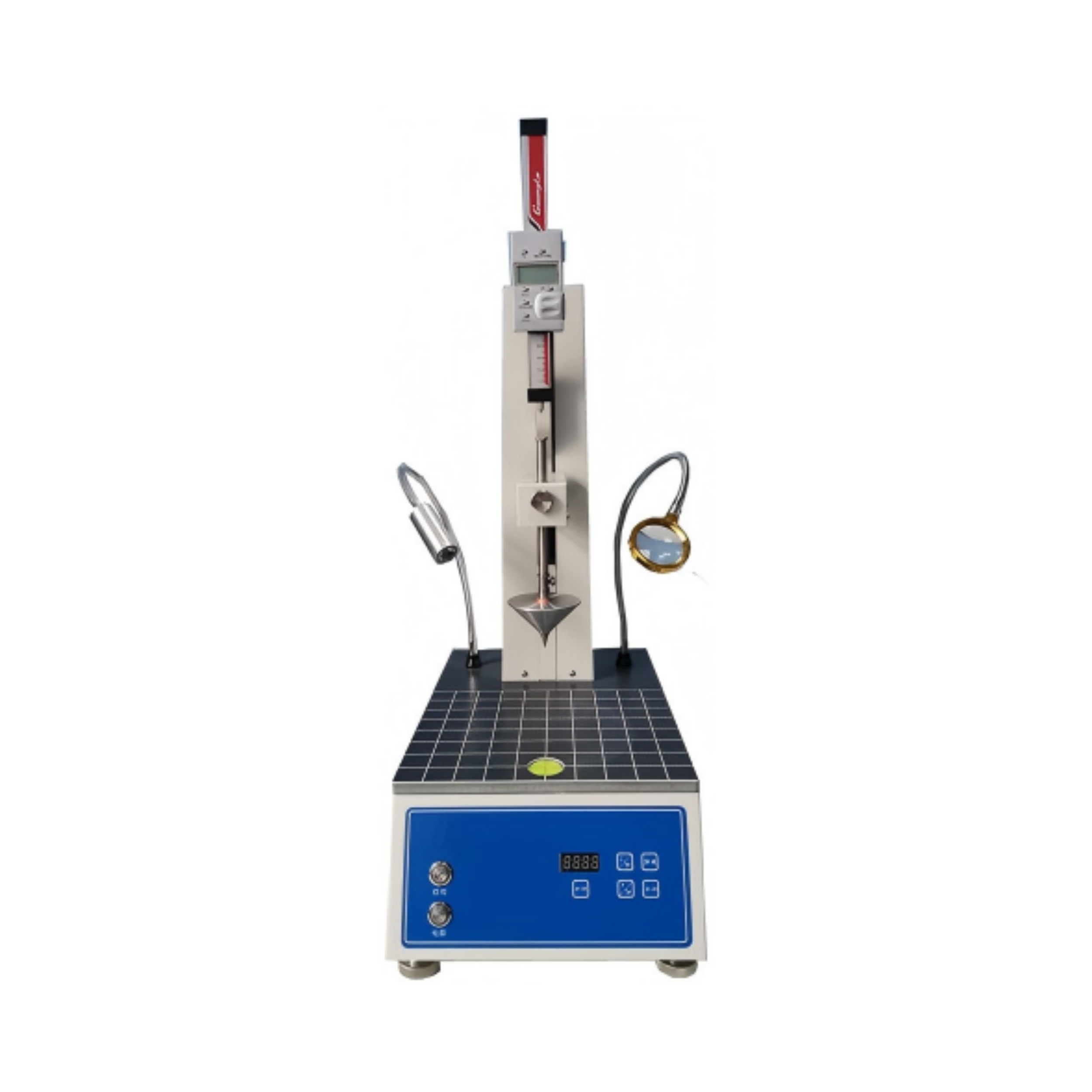

HSY-0983A
NADE
1
Product Description
This instrument is professionally designed and manufactured in strict compliance with the technical requirements and relevant provisions of "0983 Cone Penetration Determination Method" from the Pharmacopoeia of the People's Republic of China (2020 Edition). It is engineered to ensure precise quality control for semi-solid pharmaceutical and industrial materials.
This instrument is professionally designed and manufactured in strict compliance with the technical requirements and relevant provisions of "0983 Cone Penetration Determination Method" from the Pharmacopoeia of the People's Republic of China (2020 Edition). It is engineered to ensure precise quality control for semi-solid pharmaceutical and industrial materials.
Principle:
Drug cone penetration is determined by the free-fall movement of a cone with specified mass released from the cone penetration meter at 25℃. The measurement captures the depth of cone penetration into the test sample within 5 seconds after release.
Key Parameters:
Test Temperature: 25℃
Release Mechanism: Free-fall (frictionless)
Measuring Time: 5 seconds
Measurement Index: Penetration depth
Industry Sector | Test Materials | Purpose |
|---|---|---|
Pharmaceuticals | Ointments, eye ointments | Control soft hardness and viscosity; ensure coating ductility |
Pharmaceutical Bases | Vaseline, lanolin, beeswax | Matrix material quality control |
Industrial Materials | Solid fine particles, powders, colloids, frozen bodies | Physical property inspection (via optional accessories) |
Food Industry | Cheese, sugar, butter, maize, cream, fermented bodies | Food raw material quality control (via optional accessories) |
Transportation & Highway Engineering | Road construction materials | Infrastructure material testing (via optional accessories) |
Specifications
Measurement range | (0~700) tapered degree; |
Resolution | 0.01 mm; |
Coning accuracy | ±1 taping degree; |
Weight of standard No. 1 Cone | The weight of the No. 1 cone (102.5±0.05)g, and the weight of the supporting cone rod is 47.5g±0.05g, which meets the specification requirements of the national standard 2020 edition of the pharmacopoeia; |
Optional cones | NO.2 Cone, cone weight: 22.5±0.05g and supporting cone rod weight is 15±0.025g
NO. 3 Cone, Cone and rod weight: 9.38±0.025g |
Lifting bracket | coarse and fine double lifting adjustment mechanism, which is convenient for the cone tip to aim at the specimen plane; |
Working power supply | AC(220±10%)V, 50Hz, power consumption not more than 300W. Add optional voltage convertor to meet 110V 60HZ |
External size | 280mm×350mm×700mm (length × width × height). |
Others
| Equipped with a cold light source and a magnifying glass, which is convenient to use and operate. |
