Product Description

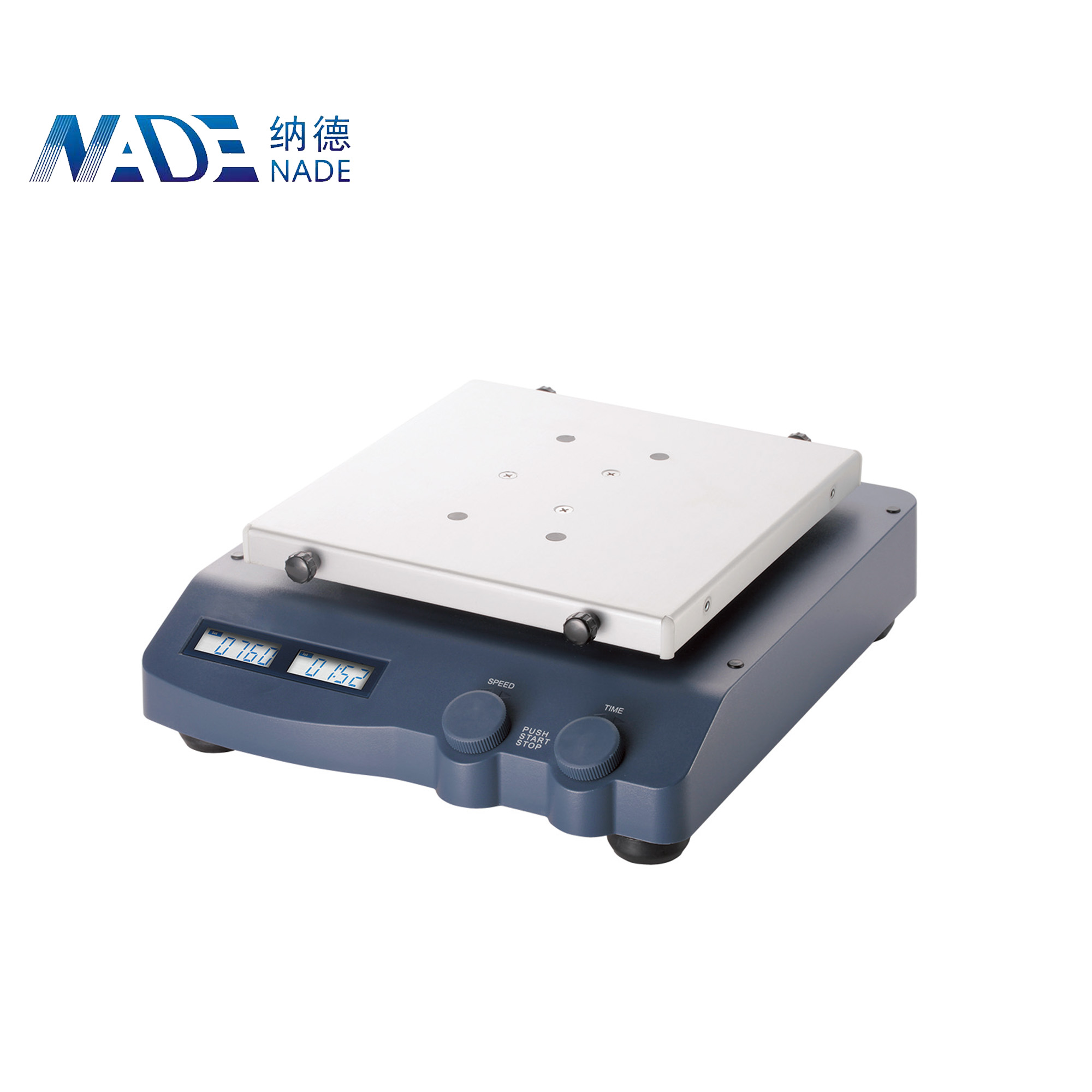

Linear Digital Shakers provide smooth and quiet motions for mixing in culture dishes, flasks and beakers.
1. Compact,Linear shakers with ideal shaking motion, for a maximum shaking weight of 2.5kg
2. LCD displays speed and timer. Speed, timer and operating mode can be viewed simultaneously- Wide range of platforms for use with a variety of vessels
3. Electronic time switching clock controls time or continuous operation mode
4. DC brushless motor, long service life and maintenance free
5. Over speed detection and protection
6. Free software Shaker PC, computer can control and document all operation values via RS232 interface
| Model | SK-L180-Pro | |
| Voltage[VAC] | 100-240 | |
| Frequency[Hz] | 50/60 | |
| Power[W] | 30 | |
| Shaking motion | Linear | |
| Orbital diameter[mm] | 4 | |
| Max. load capacity (with platform) [kg] | 2.5 | |
| Motor type | DC brushless motor | |
| Motor rating input[W] | 28 | |
| Motor rating output[W] | 15 | |
| Speed range[rpm] | 100-350 | |
| Speed display | LCD | |
| Timer | Yes | |
| Timer display | LCD | |
| Time setting range[min] | 1-1199 | |
| Operation type | Continuous / timed operation | |
| Dimensions[W×H×D mm] | 340×300×100 | |
| Weight[kg] | 8.1 | |
| Permissible ambient temperature[℃] | 5-40 | |
| Permissible relative humidity | 80% | |
| Protection class acc. DIN EN60529 | IP21 | |
| RS232 interface | Yes | |
Standard configuration:
l SK-L180-Pro: Linear Digital Shaker, without fixing clamp, including Petri dish holder 18900039
| For model SK-O180-Pro/SK-L180-Pro | ||
| Number | Model | Description |
| 18900025 | SK180.1 | Universal attachment |
| 18900038 | SK180.3 | Length ways roller attachment |
| 18900039 | SK180.4 | Dish platform with non-slip mat |
| 18900026 | SK180.2 | Fixing clip attachment |
| 18900029 | SK180.2.1 | Fixing clip for flask volume 25 ml |
| 18900030 | SK180.2.2 | Fixing clip for flask volume 50 ml |
| 18900031 | SK180.2.3 | Fixing clip for flask volume 100 ml |
| 18900032 | SK180.2.4 | Fixing clip for flask volume 200/250 ml |
| 18900033 | SK180.2.5 | Fixing clip for flask volume 500 ml |
| 18900037 |
| Bar for SK180.1 Universal attachment, black |
Accessory details:
