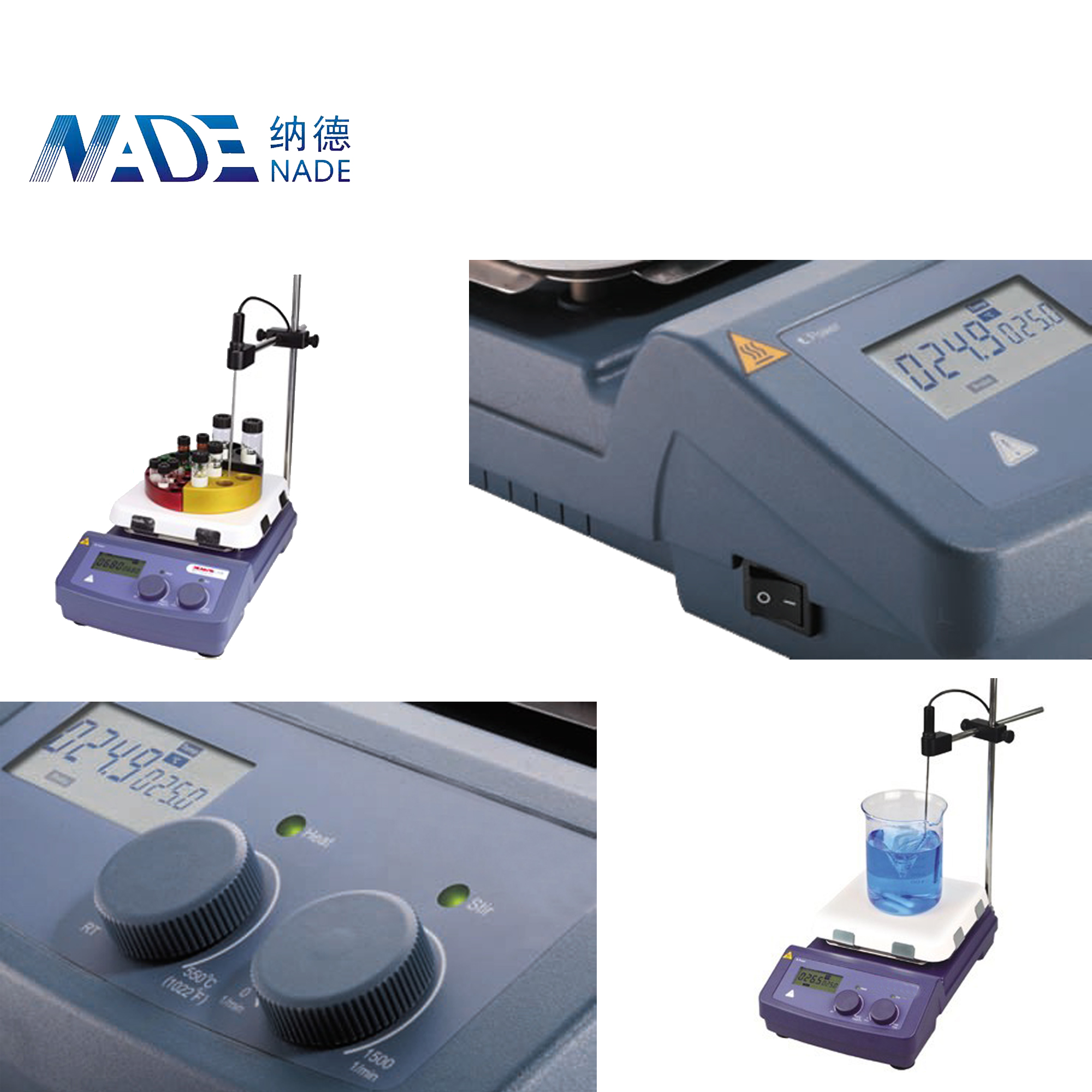

NADE Digital 7'' square (hotplate) Magnetic Stirrer MS7-H550-Pro

  • Screw
  • 20
  • Chemicals, Medicine
  • 20 L
  • 20L
  • 0.5 KG
  • New
  • Cosmetic
  • Liquid with Suspended Solids
  • Other
  • Zhejiang, China
  • NADE
  • 100~240
  • 215*360*112mm
  • ISO
  • 0.02 kW
  • 1 Year
  • Easy to Operate
  • laboratory
  • No service
  • None
  • None
  • Ordinary Product
  • Not Available
  • Not Available
  • 1 Year
  • Other
  • No overseas service provided
  • Glass ceramic, chemical resistance
  • 184*184mm
  • 100~1500rpm
  • DC brushless motor
  • 580℃
  • RT~550℃
  • LCD

Product Description

Features:

  • LCD Real-time display:
    Setting value and actual value can be displayed. Real-time monitoring temperature and speed via LCD display.
  • Extended application:
    PC can control and document all measuring values via RS232 interface. Parameter can be set to carry out safety monitoring.

Features of hotplate model:

  • Accurate temperature and speed control:
    The control technology effectively guarantees the temperature and speed precision.
  • Heating warning:
    The hotplate model has a residual heat warning function. LCD display would show “Hot” when plate temperature over 50oC warning point.
  • Adjustable safety temperature:
    Unique safety temperature control system which has an adjustable temperature range in 100-580 oC. System stops heating once exceed secure temperature.

Specification

MS7-H550-Pro

Dimension of heating plate[mm]

184 x 184

Plate material

Glass ceramic

Motor type

Exterior rotor brushless motor

Motor rating input[W]

18

Motor rating output [W]

10

Max. stirring quantity[H2O], l

20

Max .magnetic bar(L x Ø)[mm]

80 x 10

Speed range[rpm]

100-1500

Speed display

LCD

Speed display resolution [rpm]

1

Heating region[mm]

176 x 176

Heat output [W]

1000

Adjustable safety circuit (heating plate)[°C]

Room temperature to 550

Temperature control accuracy with temperature sensor PT1000[±°C]

1(100°C below)
±1% (100°C above)

Safety temperature[°C]

100-580

Temperature display

LCD

Temperature display accuracy[°C]

0.1

Temperature sensor of extra position

PT1000

Control accuracy of heating temperature with temperature sensor PT1000 [±°C]

0.2

Heating warning

50°C alarm line

Remote control (RS232 interface)

Yes
