Laboratory Centrifuge
NADE
DM0412P
China
300-4500 rpm
2490xg, increment: 10g
±10rpm
8x15ml,12x10mL/7mL/5mL
Brushless DC motor
LCD
PRP:3480rpm, 5mins, PRF:2690rpm, 7mins, CGF: Step1 2700rpm 2mins
9 programs (6 steps for each program)
≤56dB
Speed/RCF switch; sound-alert function
Product Description

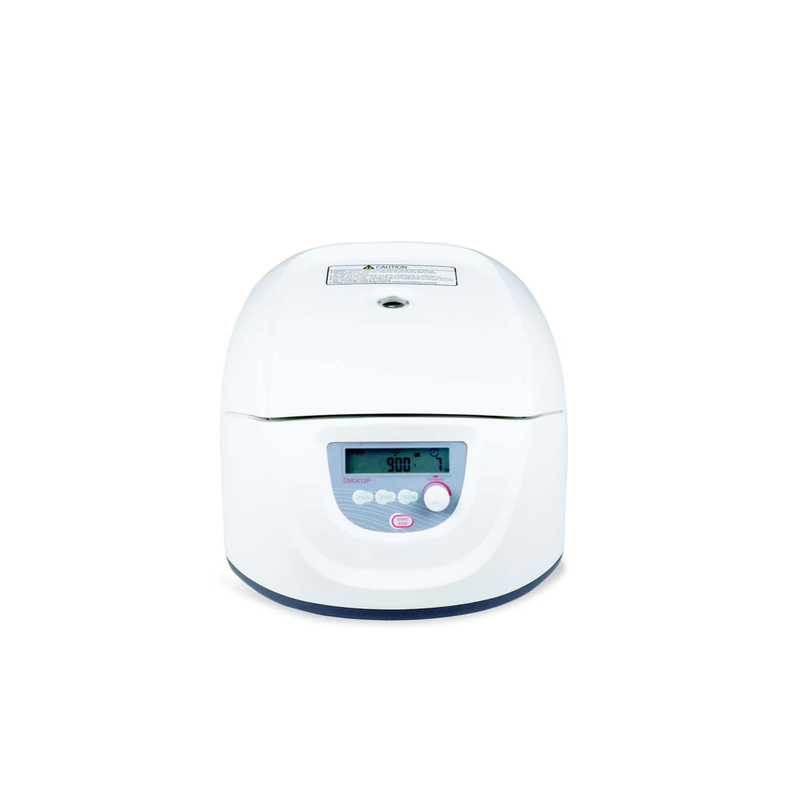

DM0412P centrifuge is supplied with an angle rotor that can hold up to 15mL×8 or 10mL/7mL/5mL×12 (A12-10P )vacuum tubes. It is ideal for sample preparation in constimetology and dental field, like orthopedic, aesthetic surgery,oral surgery, etc.
Application:
• Max. speed 4500rpm;
• Rotor speed can be set in RPM/RCF;
• 3 preloaded programs for fast operation of PRP/PRF/CGF application;
• 9 programs for customization can be stored in memory;
• Powerful CPU for easy operation of speed, time and all other parameters;
• Easy-to-read processing display and sound alert;
• Automatic lid-lock release after running;
• Conforms to international safety standards and regulations marked with CE, cTUVus and FCC, and passed the explosion-proof test / MCA test according to IEC/EN61010-2-20;
• Passed EN61010-2-101: 2 0 0 2 particular requirements for In-Vitro diagnostic (IVD) medical equipment;
• Maintenance-free brushless DC motor.
| Model | DM0412P |
| Speed Range | 300-4500rpm, increment:10rpm |
| Max. RCF | 2490xg, increment: 10g |
| Speed accuracy | ±10rpm |
| Rotor capacity | 8x15ml,12x10mL/7mL/5mL |
| Run Time | 30sec-99min |
| Motor | Brushless DC motor |
| Display | LCD |
| Preloaded Program | PRP:3480rpm, 5mins, PRF:2690rpm, 7mins, CGF: Step1 2700rpm 2mins, Step2 2400rpm 4mins Step3 2700rpm 4mins, Step4 3000rpm 3mins |
| Custom Programs Memory | 9 programs (6 steps for each program) |
| Safety Devices | Door interlock, Overspeed detector, Automatic internal diagnosis |
| Noise | ≤56dB |
| Power | Single-phase, 100V-240V,50Hz/60Hz, 3A,70W |
| Dimension[WxDxH] | 301X354X217mm |
| Weight | 6kg |
| Advanced features | Speed/RCF switch; sound-alert function |
