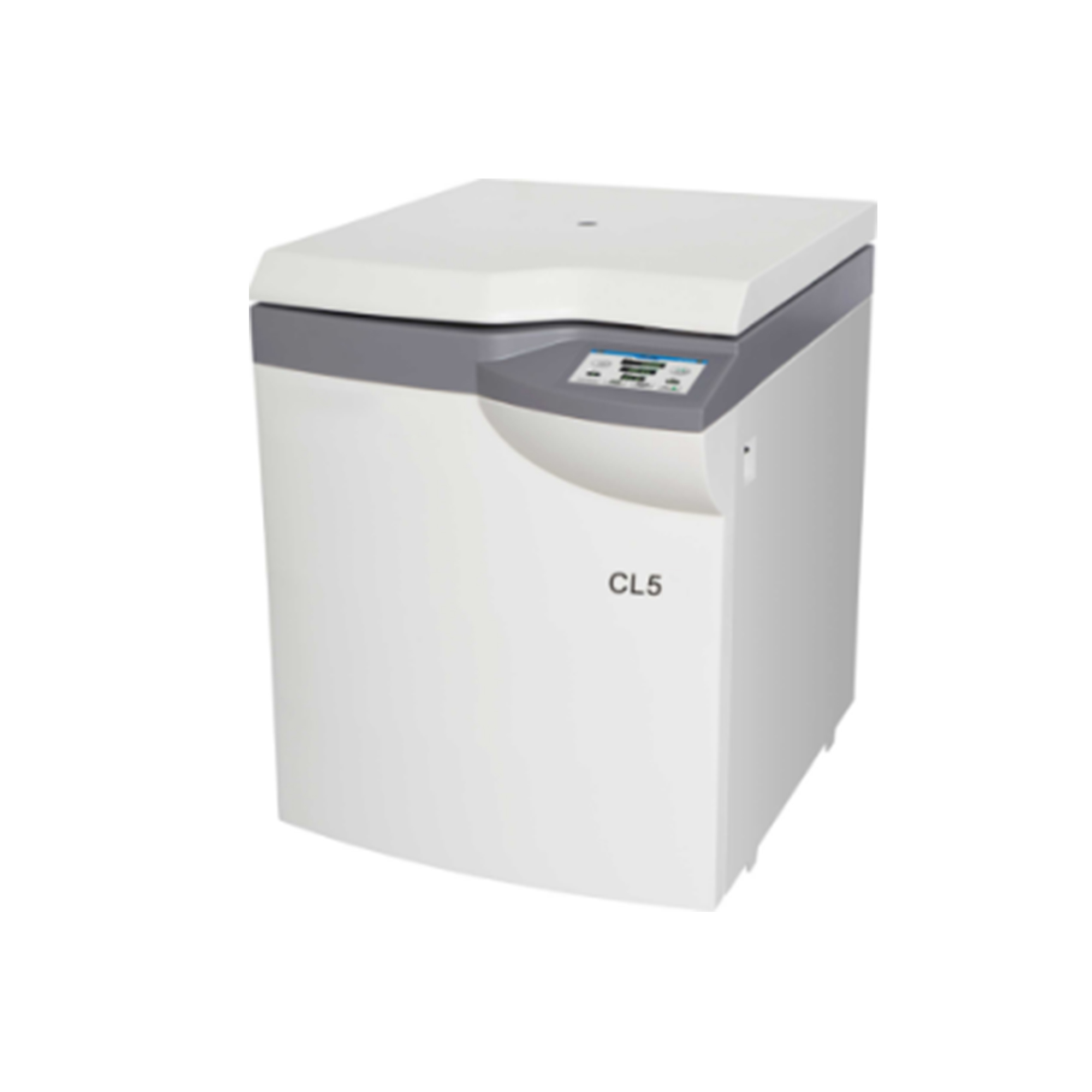

CL5 Low Speed Centrifuge

Max.speed: 5000rpm
Max.RCF: 6037xg
Max.Capacity: 4 x 1000ml
Large Capacity Non-Refrigerated
Availability:
  • CL5

  • NADE

  • AC220V±22V 50Hz 15A

  • 1

  • 1 year

  • China

Product Description

CL5 P2

Introduction:

CL5 Large Capacity Non-Refrigerated, with its large capacity of 6x500ml and 4x1000ml swing rotor, are with elegant arc appearance and high efficient centrifugation. Non-CFC refrigeration system, UI designs and great performance. It is the first choice of the blood banks and hospitals for large centrifugation.


Feature:

Quick or large centrifugation for blood bank
◆Swing rotor of 4x1000ml for CL5R, it is the first choice for the blood bank.
◆Swing rotor of 6x500ml, 168pcs vacuum tubes can be centrifuged one time to meet large centrifugation request.
7inches touch screen
Touch screen control, setup value and running value are displayed.
Safe and Reliable
Three tiers containment and rotor self-identified with other protective functions of imbalance, oversepeed,overtemperature and electronic interlock to ensure the safety of people and instrument.
Easy use
◆99 programs cane stored, regular programs can be accessed easily..
◆Operation data and error code can be copied by USB for easy record.
◆RCF and speed can be shifted, and running parameter and setup parameter are displayed on the screen.


Specification

Model

CL5

Max.speed

5000rpm

Max.RCF

6037xg

Max.Capacity

4x1000ml

Speed accuracy

±50rpm

Time setting range

1min to 99h59min

Noise

≤65dB(A)

Power Supply

AC220V±22V 50Hz 16A

Wattage

3000W

Dimension (WxDxH)

700x880x930(mm)

Package Dimension (WxDxH)

820x1000x1080(mm)

Weight

260Kg


Rotor options

CL5 转子
