NADE Clinical Centrifuge DM0412 CE certificated

  • Laboratory Centrifuge
  • NADE
  • DM0412
  • China
  • 300-4500 rpm
  • 15ml*8 and 12*10ml/7ml/5ml(with adapter)
  • Brushless DC motor

Product Description

Introductions

Our clinical centrifuge is ideal for the separation of serum, plasma, urea, blood samples and other routine applications in hospital and research laboratories.

classify: mini centrifuge, small centrifuge, clinica centrifuge, low speed centrifuge, medical centrifuge, Pharmaceutical centrifuge, special centrifuge.

Features:
  • Speed range of 300-4500rpm
  • Max rotor capability 15ml×8
  • Precise control speed and time with efficient separation
  • For 15ml cell culture tubes and full line of collection tubes, ideal for a clinical lab
  • Quiet and stable operation with noise level ≤56

Advantages

Conforms to international safety standards and regulations

- Clinical centrifuges have passed the explosion-proof test and marked with CE, cTUVus and FCC. MCA test according to IEC/EN61010-2-20 including explosion-proof and bio-safe tests.

- Passed EN61010-2-101:2002 particular requirements for in vitro diagnostic (IVD) medical equipment

- High strength plastic rotor and excellent balance technology to guarantee a quiet and stable operation

- Dual protection casing provides safe and reliable running

- Brushless motor drive quickly and effortlessly accelerates the rotor to set speed

Precise control

- CPU controls all operating parameters including speed and time

- High accuracy of speed, excellent performance

- Operation can be timed from 30 seconds to 99 minutes or continuous running

- Timer commences once the set speed is reached, so the separation time is more accurate

- Gentle braking at low speeds with efficient separation

Ergonomic design

- User-friendly large LCD display show all information

- RPM or G-force can be set and displayed

- Parameters can be modified after the set speed is reached

- Quick spins are possible by pressing and holding PULSE key. The centrifuge speed can be accelerated and held at the target speed.

- Automatic release the lid when operation has stopped to save processing time

- Easy-to-read processing display and sound alert

Specification:

Max. Speed [rpm]

300-4500, increment: 100

Max. RCF [×g]

2490×g, increment: 100×g

Speed Accuracy [rpm]

±20

Rotor Capacity

12×10ml/7ml/5ml;

8×15ml

Run Time

30sec-99min-HOLD (Continuous operation)

Driving Motor

Brushless DC motor

Safety Devices

Door interlock, Over-speed detector; Over-temperature detector; Automatic internal diagnosis

Power

Single-phase,

110V-240V, 50Hz/60Hz, 3A

Noise level [dB]

≤56

Acceleration
/Braking time [Sec]

20s↑20s↓

Dimensions [mm]

(L)255 ×(W)245×(H)140

Weight

6 kg

Additional Features

Speed/Acceleration switch; Short-time run function; sound-alert function

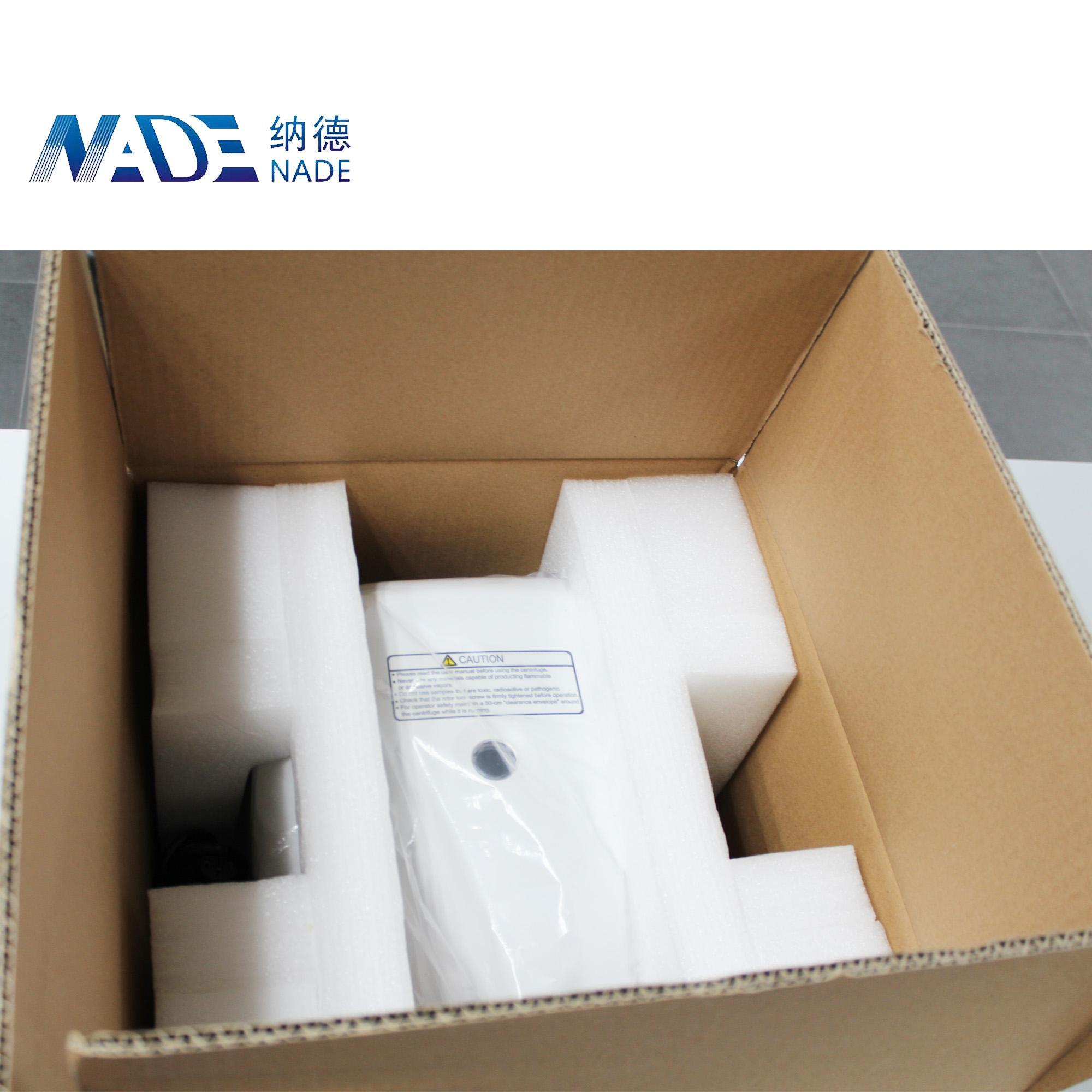

Packaging & Shipping
