DM0412
NADE
DM0412
100~120V /200~240V,50/60HZ
1
1 year
China
Product Description
Our clinical centrifuge is ideal for the separation of serum, plasma, urea, blood samples and other routine applications in hospital and research laboratories.
classify: mini centrifuge, small centrifuge, clinica centrifuge, low speed centrifuge, medical centrifuge, Pharmaceutical centrifuge, special centrifuge
Application:
DM0412 is ideal for separation of whole blood components, such as serum, plasma, buffy coat, red blood cells, as well as other bodily fluids.
Advantages
Conforms to international safety standards and regulations
- Clinical centrifuges have passed the explosion-proof test and marked with CE, cTUVus and FCC. MCA test according to IEC/EN61010-2-20 including explosion-proof and bio-safe tests.
- Passed EN61010-2-101:2002 particular requirements for in vitro diagnostic (IVD) medical equipment
- High strength plastic rotor and excellent balance technology to guarantee a quiet and stable operation
- Dual protection casing provides safe and reliable running
- Brushless motor drive quickly and effortlessly accelerates the rotor to set speed
Precise control
- CPU controls all operating parameters including speed and time
- High accuracy of speed, excellent performance
- Operation can be timed from 30 seconds to 99 minutes or continuous running
- Timer commences once the set speed is reached, so the separation time is more accurate
- Gentle braking at low speeds with efficient separation
Ergonomic design
- User-friendly large LCD display show all information
- RPM or G-force can be set and displayed
- Parameters can be modified after the set speed is reached
- Quick spins are possible by pressing and holding PULSE key. The centrifuge speed can be accelerated and held at the target speed.
- Automatic release the lid when operation has stopped to save processing time
- Easy-to-read processing display and sound alert
Features
1.Easy operation with intuitive menu and easy-to-read display
Specifications
Max. Speed [rpm] | 300-4500, increment: 100 |
Max. RCF [×g] | 2490×g, increment: 100×g |
Speed Accuracy [rpm] | ±20 |
Rotor Capacity | 12×10ml/7ml/5ml; 8×15ml |
Run Time | 30sec-99min-HOLD (Continuous operation) |
Driving Motor | Brushless DC motor |
Safety Devices | Door interlock, Over-speed detector; Over-temperature detector; Automatic internal diagnosis |
Power | Single-phase, 110V-240V, 50Hz/60Hz, 3A |
Noise level [dB] | ≤56 |
Acceleration | 20s↑20s↓ |
Dimensions [mm] | (L)255 ×(W)245×(H)140 |
Weight | 6 kg |
Additional Features | Speed/Acceleration switch; Short-time run function; sound-alert function |
Accessories
| Available rotors |
| |
| A12-10P (round bottom) | Cat.No.19400068 | |
| for DM0412 & DM0424 & DM0480 Max. speed: 4500rpm Max. RCF: 2490×g Rotor capacity: 8x15mL,12x10mL Rotor material: High strength plastic | ||
| A6-50P (round bottom) | Cat.No.19100197 |  |
| for DM0412(A6-50P) Max. speed: 4000rpm Max. RCF: 1800×g Rotor capacity: 50mLx6 or 15mLx6 Rotor material: High strength plastic | ||
A12-10P and A6-50P are not interchangeable

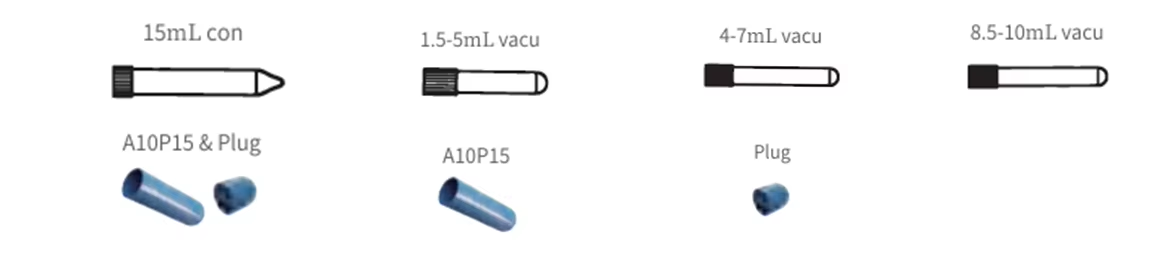

| Available tubes | Tube quantity | Dimension (ØLxmm) | Adapters | Maximum speed(rpm) | Radius (cm) | Maximum RCF(×g) |
| 15mL con | 8 | 17x120 | - | 4500 | 11 | 2490 |
| 1.5-5mL vacu | 12 | 13x75 | A10P15 & Plug | 4500 | 9.8 | 2218 |
4-7mL vacu | 12 | 13x100 | A10P15 | 4500 | 11 | 2490 |
| 16x75 | Plug | 9.8 | 2218 | |||
| 8.5-10mL vacu | 12 | 16x107 | - | 4500 | 11 | 2490 |
