NADE 4 sensor Food Smart Water activity meter with PC software

  • China
  • NADE
  • 0~1.000aw
  • -10℃~50℃
  • aw ±0.012aw(@23℃±5℃) Temp ±0.5℃
  • aW: 0.001 aw, Temp:0.1℃
  • USB to excel/ micro printer/ screen display
  • Foods, drug, etc, pls inquire us
  • 280mm*300mm*110mm
  • 4/3/2/1
  • free

Product Description

Detailed Images
Introduction

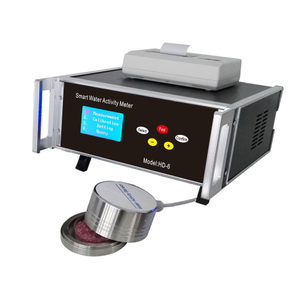

The price we posted is for HD-6 Smart water activity meter with 4 sensors. If you prefer other qty(1/2/3), please inquire us.


Water activity or aw , indicates the free water content when food is stable, measures the possibility of microbial proliferation.
Food formulators use water activity to predict how much moisture migration will affect their product.

So that to choose suitable formula, package and storage method to reduce the usage of antiseptics.

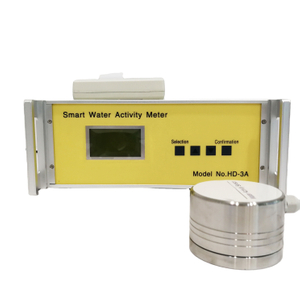

Our classical model HD-3A Smart food water activity meter has sold to many countries for years, won good feedback from clients, hope the updated model HD-6 will meet your need better.

Features

1.High stability.
2.Long using life in good performance without fault.
3.Better data processing program leads to more accuracy testing result.
4.Chemical resistant. The testing result keeps reliable when testing many different kinds of volatility material.
5.Imported chip inside sensor is with good stability and high accuracy. Avoid passivation.
6.It can save real-time testing value or final testing result. User can also set time to save data. All data can be transmitted to PC and saved as file/sheet.
7.It can reserve 5000 sets of testing results, and results can be saved to PC.
8.No need to calibrate every time.
9.It has RS232 port and USB port, can be connected to mini-printer.
10.It is suitable to test different kinds of material, such as solid, liquid, powder are all OK.
11.Optional stylus printer, can print data for long time storage.
12.The shortest measuring time is 4-5 minutes only.
13.Buzzing when measurement finishes or calibration finished.

Specification
Model
HD-6
Working environment
Temp: -10℃~50℃, Humidity: 0~95%RH
Display
Big LCD screen, 128×64 DOTS
Measuring range
aW: 0~1.000aw, Temp: -10℃~50℃
Accuracy
aW: ±0.012aw(@23℃±5℃), Temp: ±0.5℃
Resolution
aW: 0.001 aw, Temp:0.1℃
aW repeatability
≦0.008aw
Measuring point
1~4 sensor, optional
Measuring time
1) timing: 5~40mins 2)Auto measurement
Average time free from system fault
18000 hours
Print function
Measurement finishes, or Real-time print
Power supply
AC 100~230V±10%, 50Hz/60Hz
Power
<10W/each ( energy saving)
Dimension
280mm×110mm×300mm
Packing
Portable aluminum boxes for the meter (strong and safe)
Data processing
(1) It can save real-time testing value or final testing result to PC software. User can also set time to save data. All data can be transmitted to PC and saved as file/sheet.
(2) PC software can display data and curve, save data, and set equipment
(3) save 5000 group of data maximum
Calibration
Several point calibrated together or single point calibration
Interface
RS232, USB
