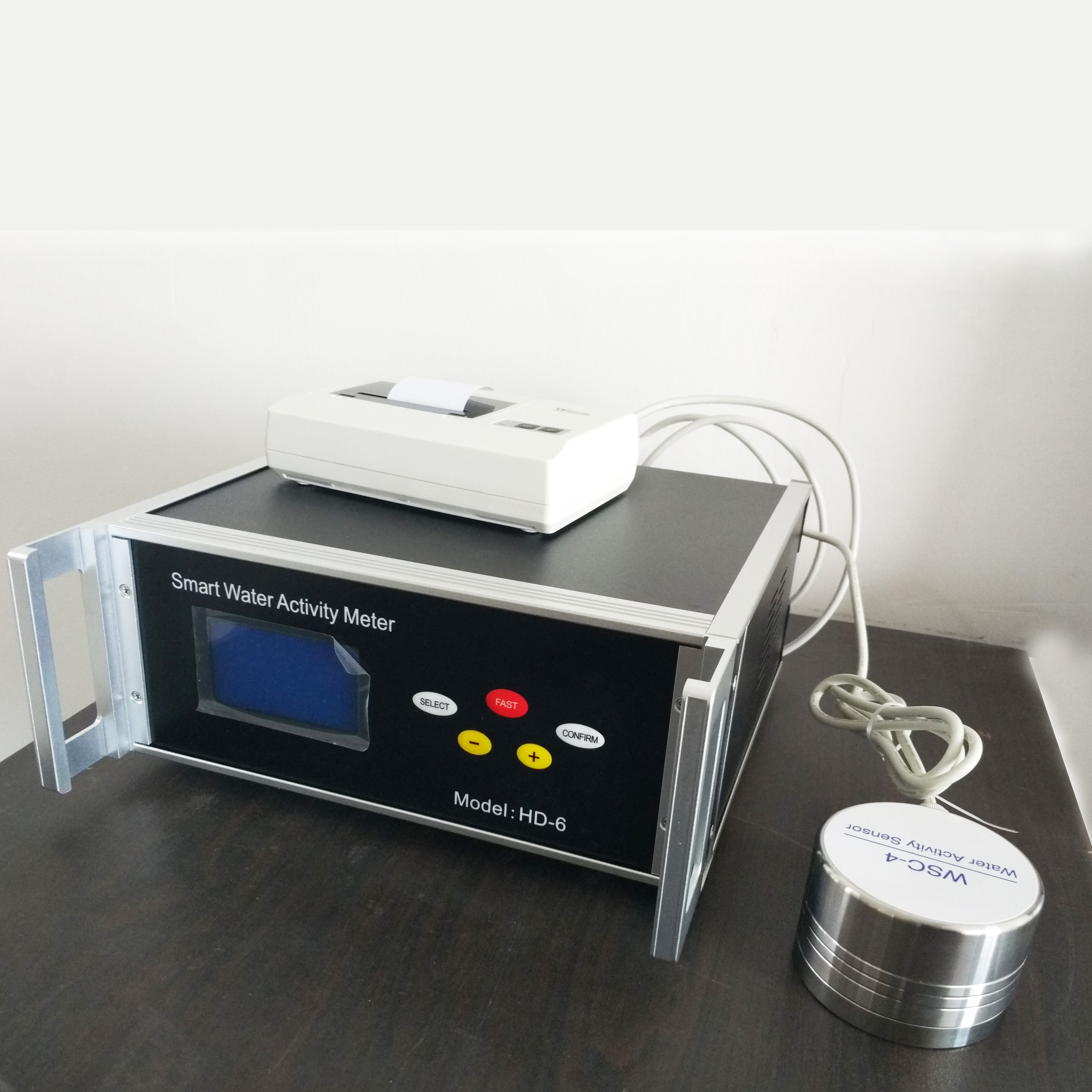

HD-6 Smart water activity meter

Measuring range: aW: 0~1.000aw, Temp: -10~50℃
Measuring accuracy: aW: ±0.012aw, Temp: ±0.5℃
Measuring sensor number: 1/2/3/4, optional
Data output: USB to PC software or print
Availability:
  • HD-6
  • NADE
  • 100~230VAC, 50Hz/60Hz
  • 1
  • 1 year
  • China

Product Description

Introduction:

*One machine can be equipped with 1 or more sensor(4 at most)

*Wider measuring range 0~1.000aW

*Available to measure at low temperature from  -10℃

*Computer software for control and data storage

HD-6 细节图
Features:

1.High stability.
2.Long using life in good performance without fault.
3.Better data processing program leads to more accuracy testing result.
4.Chemical resistant. The testing result keeps reliable when testing many different kinds of volatility material.
5.Imported chip inside sensor is with good stability and high accuracy. Avoid passivation.
6.It can save real-time testing value or final testing result. User can also set time to save data. All data can be transmitted to PC and saved as file/sheet.
7.It can reserve 5000 sets of testing results, and results can be saved to PC.
8.No need to calibrate every time.
9.It has RS232 port and USB port, can be connected to mini-printer.
10.It is suitable to test different kinds of material, such as solid, liquid, powder are all OK.
11.Optional stylus printer, can print data for long time storage.
12.The shortest measuring time is 4-5 minutes only.
13.Buzzing when measurement finishes or calibration finished.



Specification

Model

HD-6

Measuring range

aW: 0~1.000aw, Temp: -10℃~50℃

Accuracy

aW: ±0.012aw(@23℃±5℃), Temp: ±0.5℃

Resolution

aW: 0.001 aw, Temp:0.1℃

aW repeatability

≦0.008aw

Working environment

Temp: -10℃~50℃, Humidity: 0~95%RH

Display

Big LCD screen, 128×64 DOTS

Measuring point

1~4 sensor, optional as requirement

Measuring time

①timing: 5~40mins ②Auto measurement

Average time free from system fault

18000 hours

Print function

Measurement finishes, or Real-time print

Power supply

AC 100~230V±10%, 50Hz/60Hz

Power

<10W/each ( energy saving)

Data processing

①It can save real-time testing value or final testing result to PC software. User can also set time to save data. All data can be transmitted to PC and saved as file/sheet.
②PC software can display data and curve, save data, and set equipment
③save 5000 group of data maximum

Calibration

Several point calibrated together or single point calibration

Interface

RS232, USB

Dimension

280mm×300mm×110mm

Packing

Portable aluminum boxes for the meter


Packing List

NO.

Item

Amount

1

Water activity meter machine

1

2

Water activity sensor

1/2/3/4, optional

3

Micro printer

optional

4

Software in USB disk

1

5

Sample container, dish (6cm)

5

6

Power line

1

7

USB line

1

8

RS232 line

2

9

Operating manual

1

10

Quality guarantee

1

11

Portable Aluminum box

1
