Product Description
Standard confuguration for RE100-S:
Glassware: including Vertical condenser+receiving bottle+connectors, see below picture:
More optional accessories:

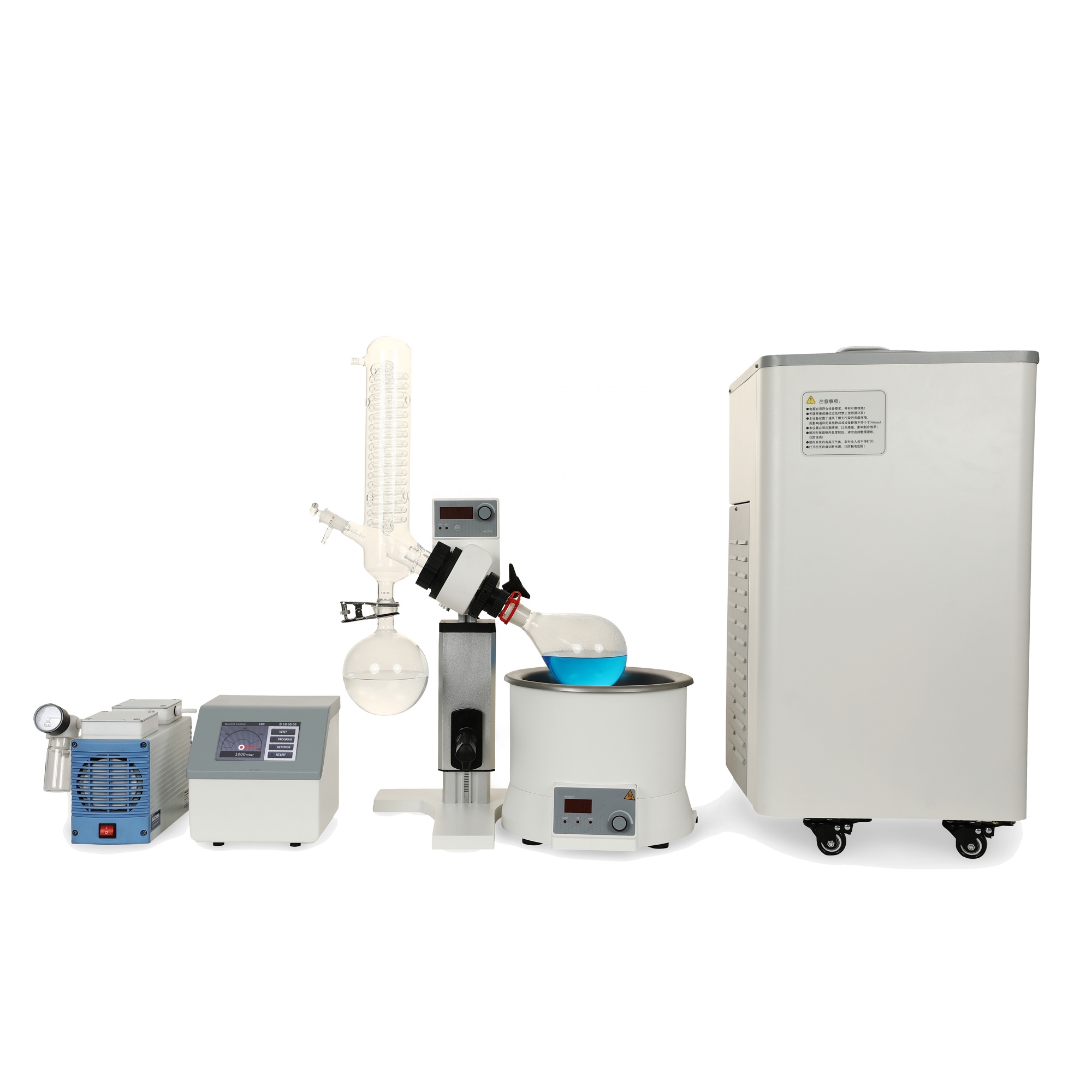

if you also need other accessory, such as vacuum pump, vacuum controller, cold water circulator, please inquire us.

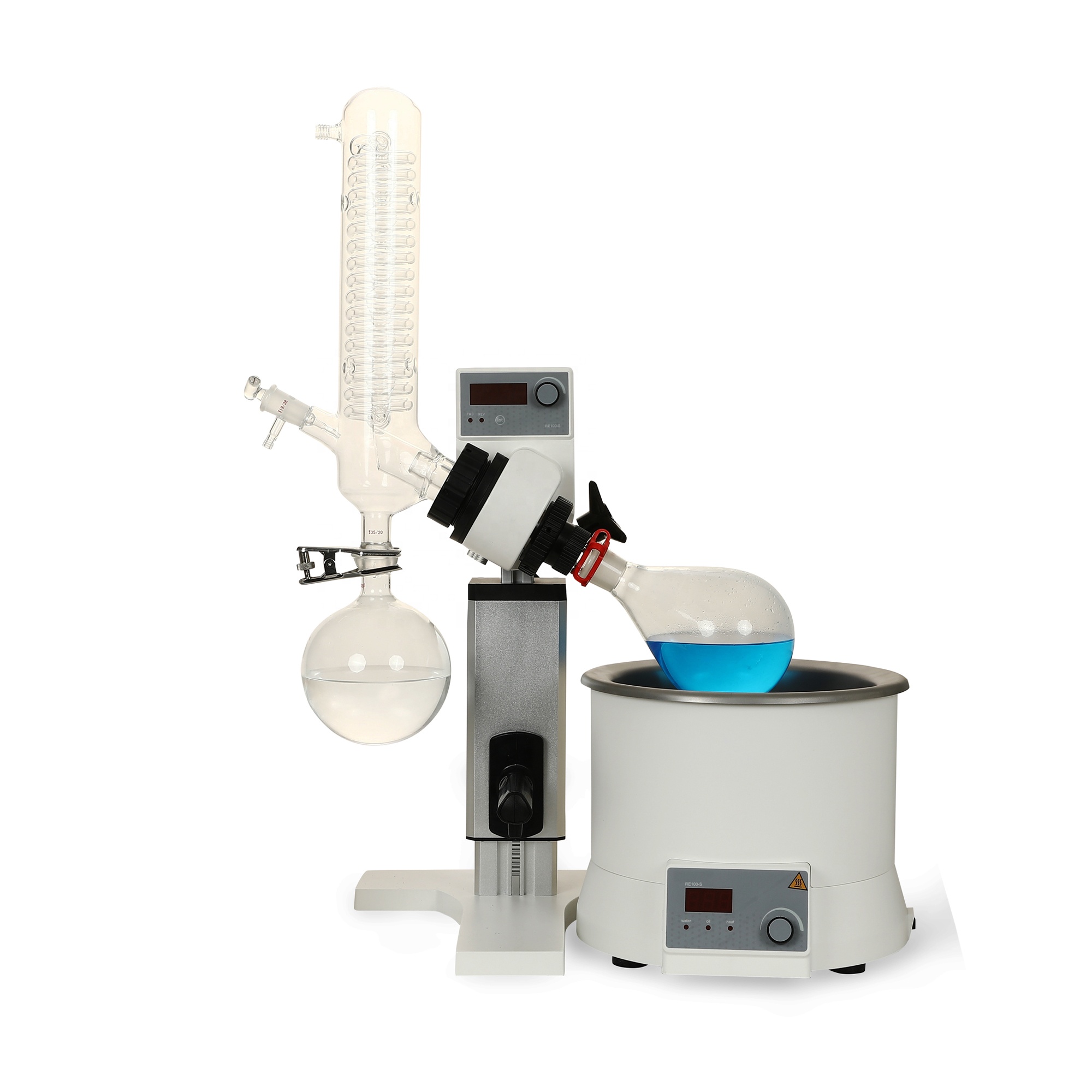

LED Digital Rotary Evaporator is an essential instrument in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It can be combined with vacuum pump, vacuum controller and circulating chiller to provide excellent distilling solutions in a
wide range of applications.
1. 5L heating bath with a wide temperature range(room temp.to180°C), independent temperature control, make it can be used separately. Water/oil heating mode can be changed only through a switch.
2. Manual lift combined with auxiliary lift for precise positioning of the glassware.
3. PID control ensures high temperature accuracy at±1oC (water).
4. Overheating protection temperature at 220°C
5. Boil-dry protection, automatically power off if heating without water/oil in the heating bath.
6. Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process.

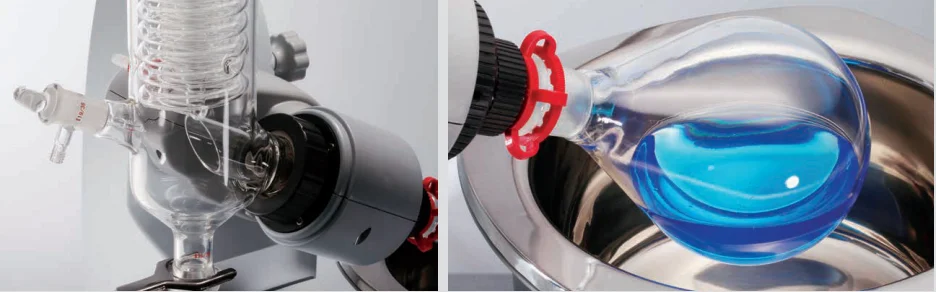

7. Patented condenser (cooling surface 1200/1700cm2 for selection), double helix condensing tube + center circular arc design to speed up the flow rate of liquid with excellent cooling effect.
8. Ejection mechanism ensures easy exchange of evaporating flask
9. Adjustable immersion angle
10. Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance
11. Remote function provides PC control and data transmission.
12. Compatible with the entire range of RE100-Pro glassware
| Specifications | RE100-S |
| Motor Type | Brushless DC motor |
| Speed Range | 20-200rpm |
| Display LED | (speed, temperature, time) |
| Clockwise and Anti-clockwise | Yes |
| Heating Temperature Range | Room temp. to 180℃ |
| Control Accuracy | water:±1℃ oil: ±3℃ |
| Heating Power | 1010 W |
| Stroke Displacement | Manual 110mm + auxiliary100mm |
| Interval Time Setting Range | 1~999s |
| Dimension [D×W×H] | Main Unit: 440×320×450mm |
| Heating Bath: 300x300x240mm | |
| Weight | Main Unit: 7kg Heating Bath: 3kg |
| Permissible Ambient Temperature | 5~40oC |
| Permissible Relative Humidity | 80%RH |
| Protection Class | IP20 |
| USB Interface | Yes |
| Voltage/Frequency | 100~120/200~240V 50/60 Hz |
| Power | 1100 W |

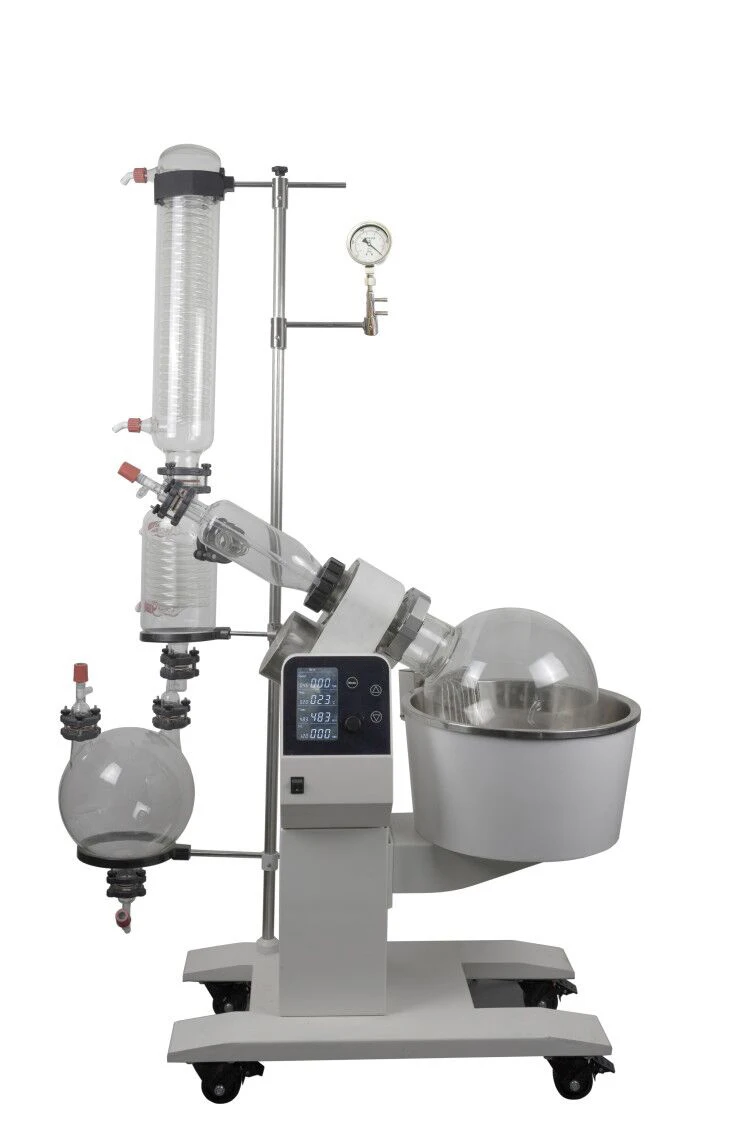

| Other models: | ||
| Picture | |
|
| Model | ||
| Evaporating Flask Volume | 50-2000ml | 20L |
| Evaporation capacity (H2O) | 1.56L/h | 4.0L/h |
| Automatic lifting | YES | YES |
| Display | LCD | LCD |
