1 year
Laboratory Thermostatic Devices
other
NADE
mir 2000
Zhejiang, China
0.8kg only
150*150*12mm( smaller than an ipad)
-10℃ to 100℃(heating and cooling)
aluminum and silicon
25℃ to 65℃ 2.5min
Steady state accuracy ±0.3℃
1 minute to 24 hours
DC12V, 5A (with adapter, 100V~240V AC suitable)
Product Description

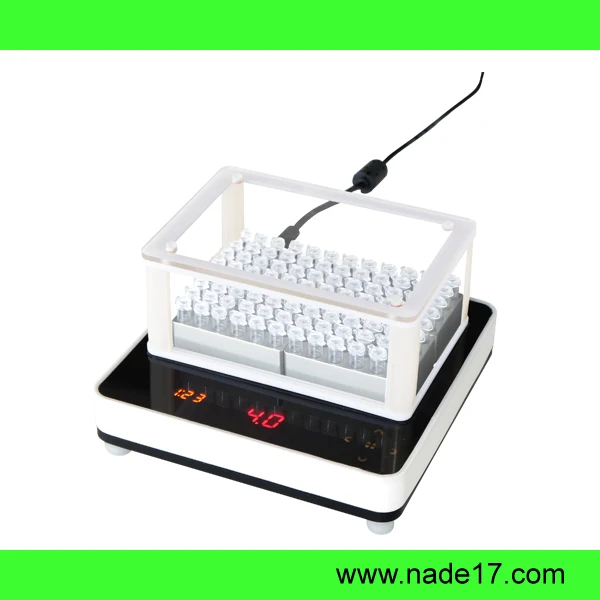

Mini Dry Bath Incubator (heating and cooling)
mir 2000
l Compact appearance, great performance
l Energy efficiency: low Power consumption, at 25℃ ambient, maintaining 42℃ requires only 5W.
l Double glazing cover: Clear, light, superb insulation. Improves temperature evenness, minimizeds water condesation in tubes.
l Silicone warp block: light & delight, fast response. Prevents burn injury.(customized size and material available.)
l Model mir 2000 has cooling function.
l Easy to operation.
l Light and slim. Save space.
l SBS compatible.
l Full range programable
l Individually calibrated for accuracy.
l Aluminium blocks and Silicone warp block for option.
| Model | mir 1000 | mir 2000 |
| Size | 150*150*12mm | 150*150*25mm |
| Weight | 0.3kg | 0.8kg |
| Working surface | Suitable for 96 well PCR plate, SBS format compatible | |
| Temperature control range | Ambient+3℃ to 100℃ | -10℃ to 100℃ |
| Heating time | 25℃ to 65℃ 5.5min, with 0.2ml blocks 9min, with 2.0ml blocks | 25℃ to 65℃ 2.5min, no load 7min, with 0.2ml blocks 7min, with 96-well plate |
| Cooling time | No cooling function | 25℃ to 5℃ 2min, no load 10.5min, with 0.2ml blocks 7min, with 96-well plate |
| Accurcacy | Steady state accuracy ±0.2℃, fluctuation ±0.1℃ | Steady state accuracy ±0.3℃, fluctuation ±0.2℃ |
| Timer range | 1 minute to 24 hours | 1 minute to 24 hours |
| Power source | DC12V, 5A (with adapter, 100V~240V AC suitable) | |
If you need mini heating block with only heating function, pls choose model mir 1000.
Pls choose suitable block as blw:

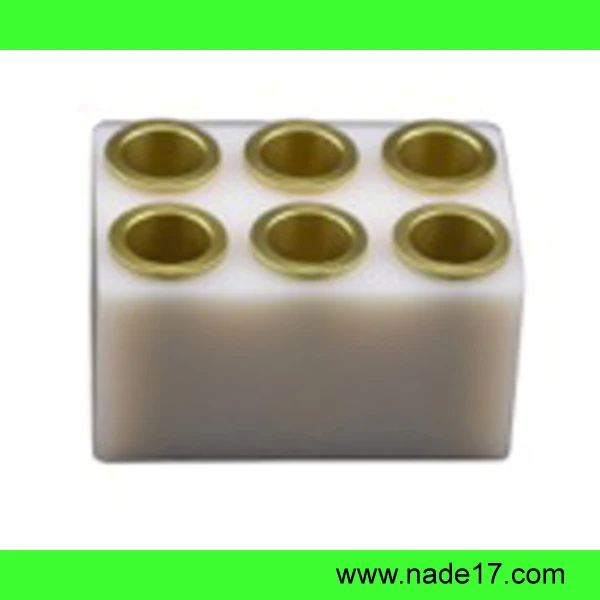

Optional block:
| Model | Description |
| SB-1.5 | Silicon block, 6 holes 1.5ml |
| SB-2.0 | Silicon block, 6 holes 2.0ml |
| SB-0.2 | Silicon block, 12 holes 0.2ml |
| SB-0.5 | Silicon block, 6 holes 0.5ml |
| AB-1.5 | Aluminum block, 6 holes 1.5ml |
| AB-2.0 | Aluminum block, 6 holes 2.0ml |
| AB-0.2 | Aluminum block, 24 holes 0.2ml |
| AB-0.5 | Aluminum block, 12 holes 0.5ml |
