Product Description
Introduction:
NA150 digital dry bath is controlled by microcomputer, widely used in preservation and reaction of the samples, DNA amplification and pre-denaturation of electrophoresis, serum coagulation, etc.
Features:
² LED display with timer
² Automatic fault detection with buzzer alarm
² Temperature calibration function
² Various blocks, easy to clean and disinfect
² Built-in over-high temperature protection
Specification
Model | NA150-1 | NA150-2 | NA150-4 |
Temp Control Range | RT+5℃ ~150℃ | ||
Heating Up Rate | ≤ 10M (20℃ to 100℃) | ||
≤ 30M (20℃ to 150℃) | |||
Temp Stability @40℃ | ±0.3℃ | ||
Temp Stability @100℃ | ±0.5℃ | ||
Temp Stability @120℃ | ±1℃ | ||
Display accuracy | 0.1℃ | ||
Timer | 0~99h59m | ||
Max.Temp | 150℃ | ||
Power | 200W | 400W | 600W |
Dimension （W×D×H） | 220*260*100(mm) | 220*360*100 (mm) | |

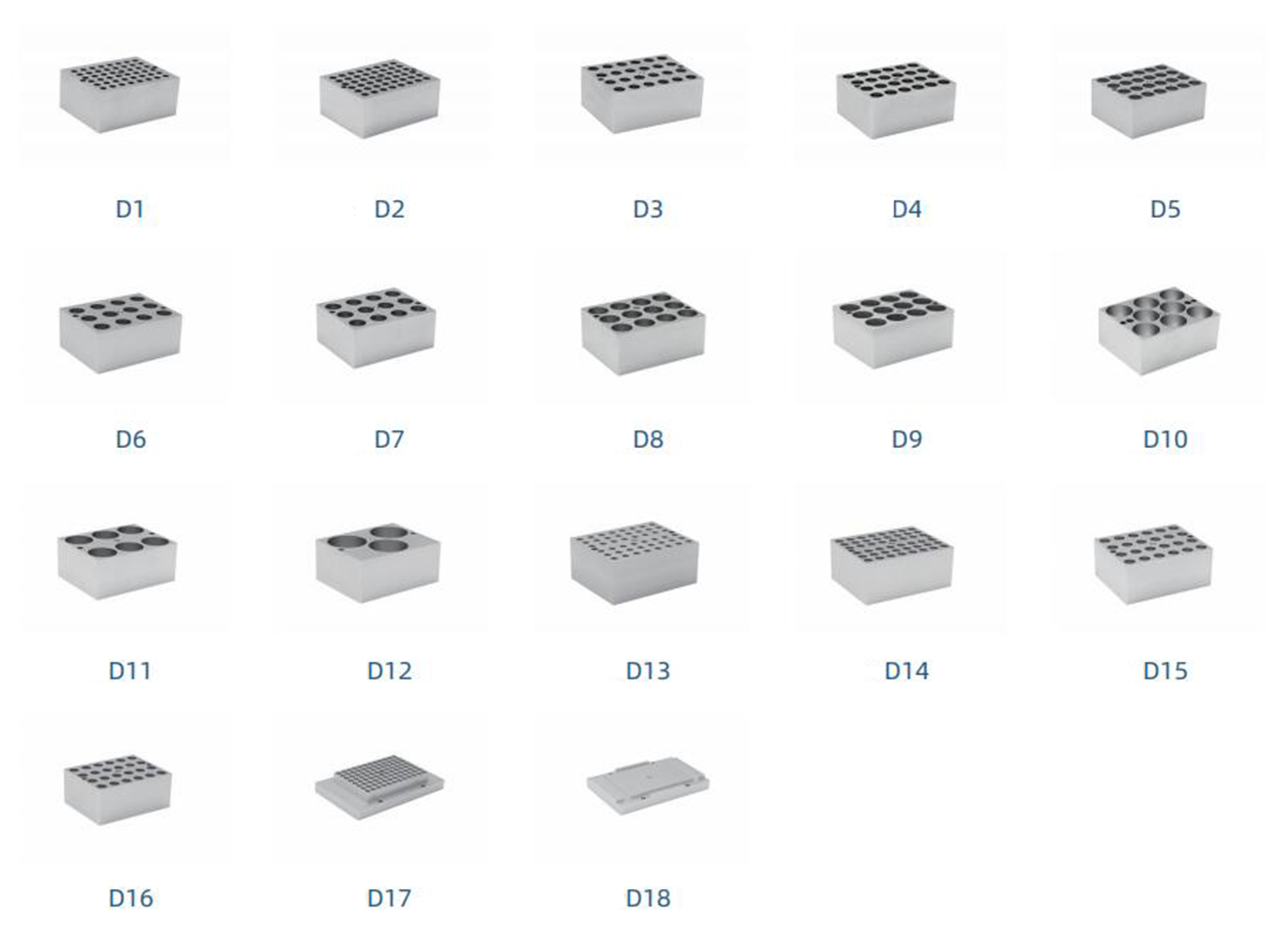

Accessories
Important Notes: D17/D18 are used in NA150-1A
Optional Blocks | ||||
Type | Tube diameter | Capacity | Size (W×D×H) | Weight |
D1 | 6mm | 48 | 96.5*76.5*50(mm) | 635g |
D2 | 7mm | 48 | 96.5*76.5*50(mm) | 726g |
D3 | 10mm | 24 | 96.5*76.5*50(mm) | 741g |
D4 | 12mm | 24 | 96.5*76.5*50(mm) | 632g |
D5 | 13mm | 24 | 96.5*76.5*50(mm) | 635g |
D6 | 15mm | 12 | 96.5*76.5*50(mm) | 719g |
D7 | 16mm | 12 | 96.5*76.5*50(mm) | 668g |
D8 | 19mm | 12 | 96.5*76.5*50(mm) | 522g |
D9 | 20mm | 12 | 96.5*76.5*50(mm) | 484g |
D10 | 26mm | 8 | 96.5*76.5*50(mm) | 416g |
D11 | 28mm | 6 | 96.5*76.5*50(mm) | 500g |
D12 | 38mm | 3 | 96.5*76.5*50(mm) | 551g |
D13 | 0.2ml tubes | 48 | 96.5*76.5*50(mm) | 941g |
D14 | 0.5ml tubes | 48 | 96.5*76.5*50(mm) | 881g |
D15 | 1.5ml tubes | 24 | 96.5*76.5*50(mm) | 852g |
D16 | 2ml tubes | 24 | 96.5*76.5*50(mm) | 817g |
D17 | 0.2ml | 96 | 96.5*153*33.5(mm) | 952g |
D18 | Flat | 96 Elisa | 96.5*153*33.5(mm) | 931g |
