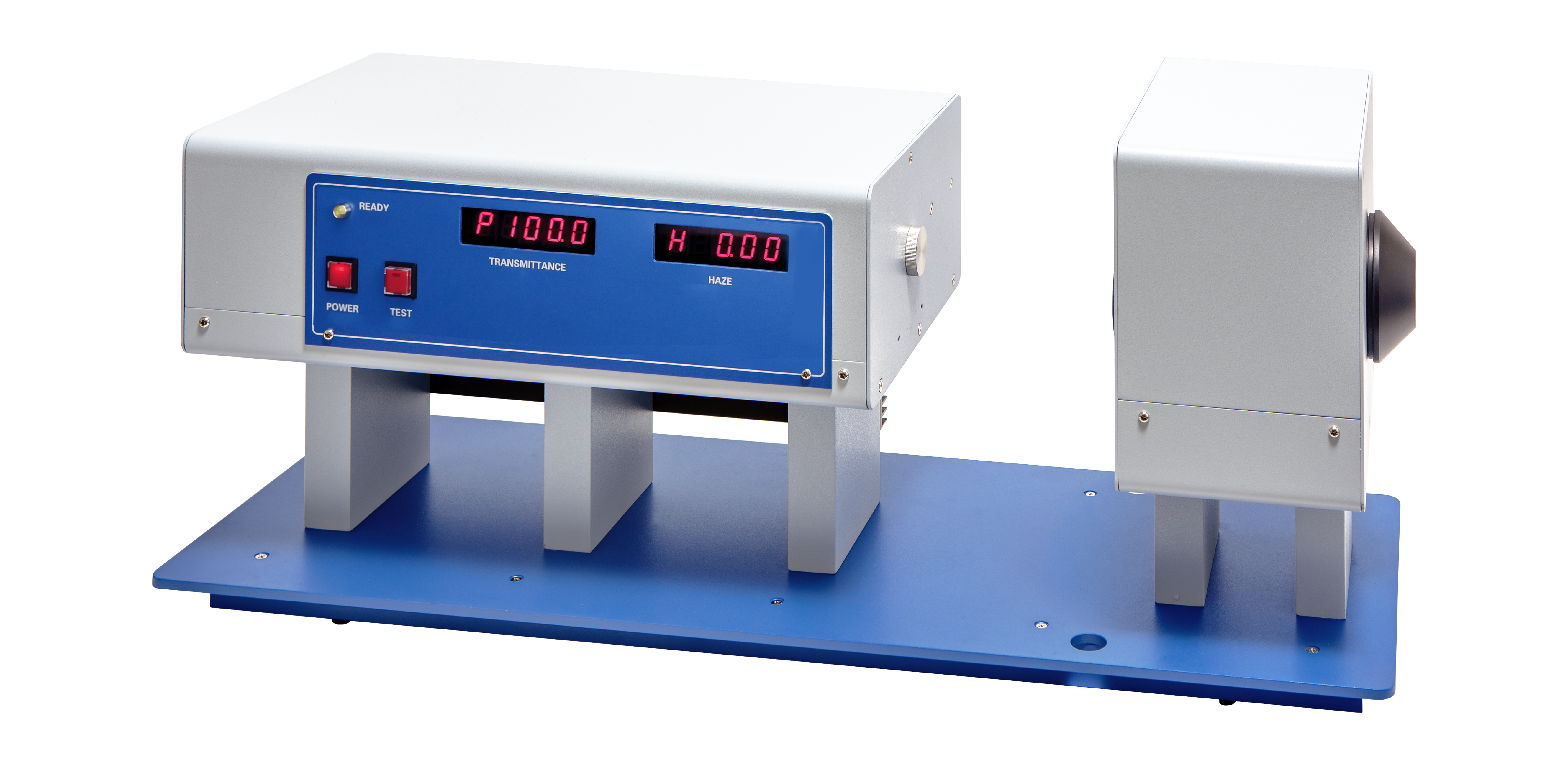

WGT-S
NADE
1
CHINA
Product Description
• Measurement of transmittance and haze of the parallel plane sample of all transparent and translucent (plastic board or sheet).
• Suitable for turbidity of liquid sample measurement (water and beverage).
• In conformity with the standard of GB/T 2410-80, ASTM D 1033-61(1977), JISK7105-81.
• Microcomputer control and easy to operate.
• Display of transmittance and haze at the same time.
Applications
The hazemeter is a precision instrument used to evaluate the optical properties of materials by measuring their light transmittance and scattering characteristics.
- Display manufacturing industry: It is used to measure the transmittance and haze of screen panels, optimizing screen brightness and anti-reflection performance.
- Packaging industry: It is used to detect the transmittance of packaging materials to ensure that they meet the requirements for storage and display.
- Glass quality inspection: It is used to measure the transmittance of glass windows and the haze of lampshades to ensure that they meet the required standards for use.
Specifications
Parameters/Model | WGT-S |
Illuminant | C light（6774k） |
Light source | Tungsten halogen lamp |
Measuring range | Transmittance: 0-100 % Haze: 0-30% (absolute), 30.1-99% (relative) |
Resolution | 0.1%(transmittance); 0.01%(haze) |
Accuracy | Transmittance: ≤±1 %(Standard neutral density filter); ≤±2 %(Standard Haze slice) Haze: ≤±5 % |
Repeatability | Transmittance: ≤0.5% Haze: ≤0.2 |
Sample window size | 25mm(incident window) 21mm(exit window) |
Display | Nixie tube |
Interface | USB |
Power supply | 220V±22V，50Hz±1Hz，100w |
Overall dimensions | 910mm×410mm ×480mm |
Weight (Gross) | 23kg |
