SGW-806
NADE
1
CHINA
Product Description
• Meet ASTM D1003-61(2007).
• Parallel illumination, scattering hemisphere and integrating sphere optical receiving mode.
• Use silicon photovoltaic cells as signal receiver.
• Computer operating system, automatic data processing system, no- knob operation and
very easy to use.

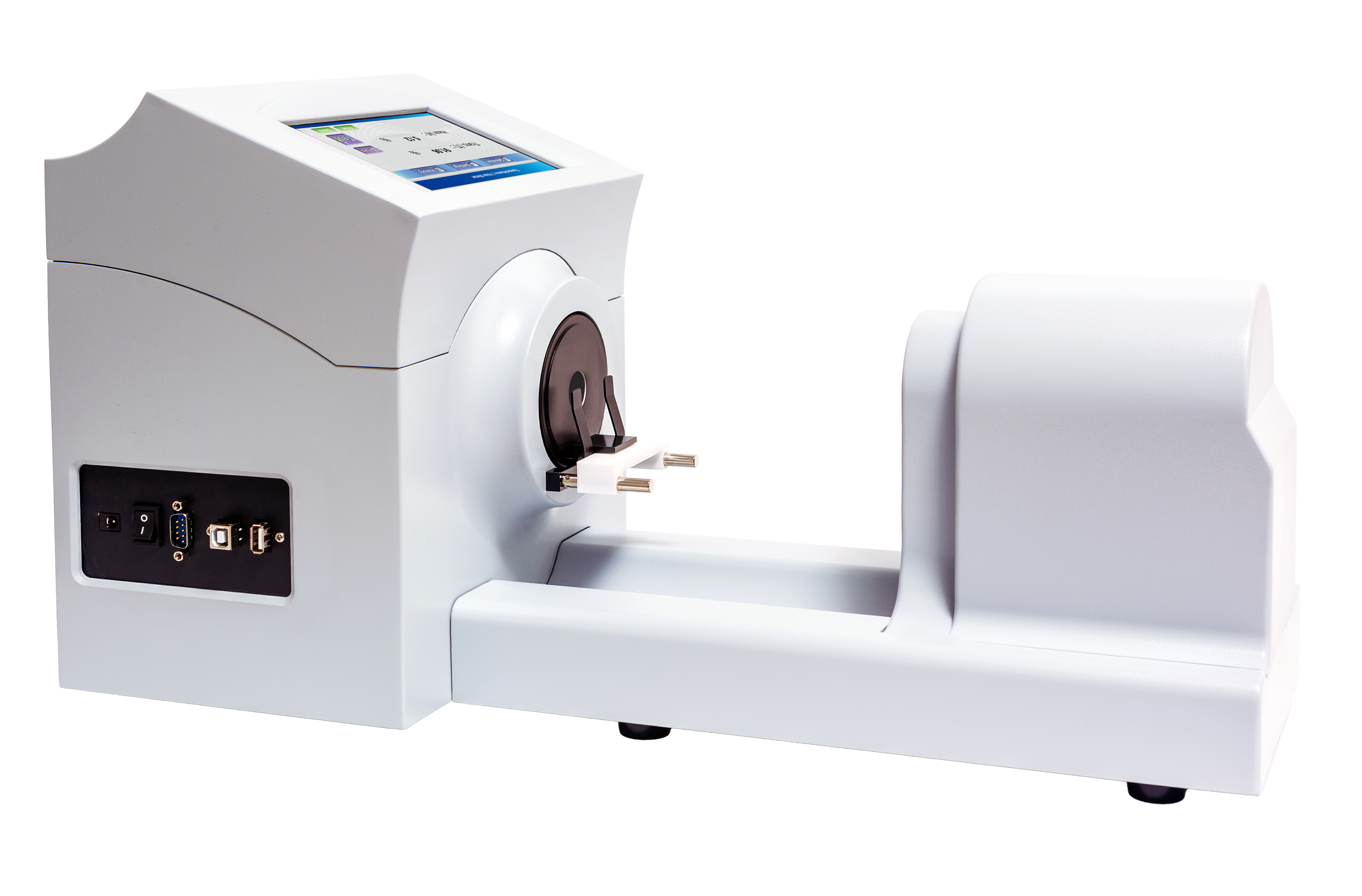

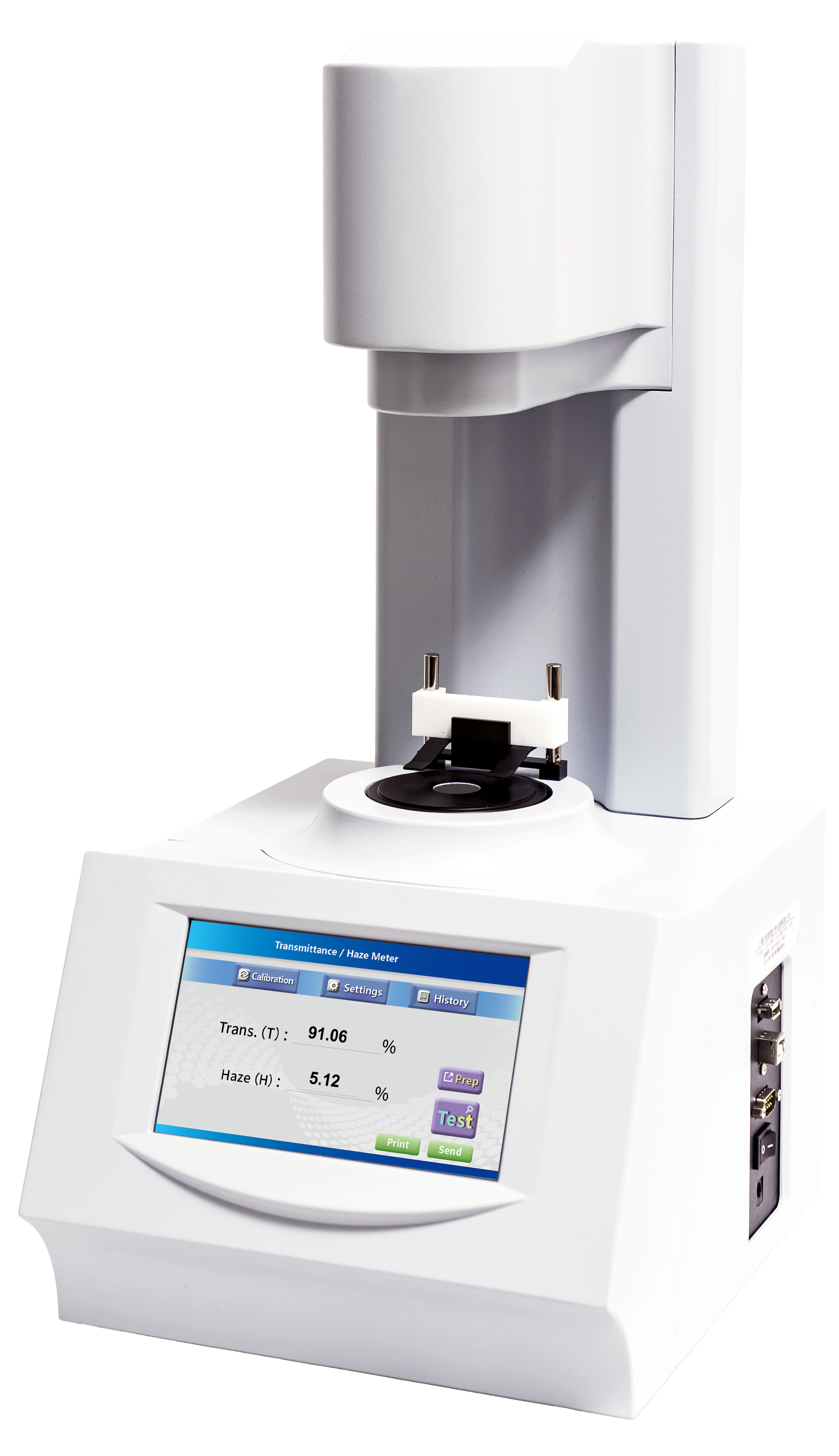

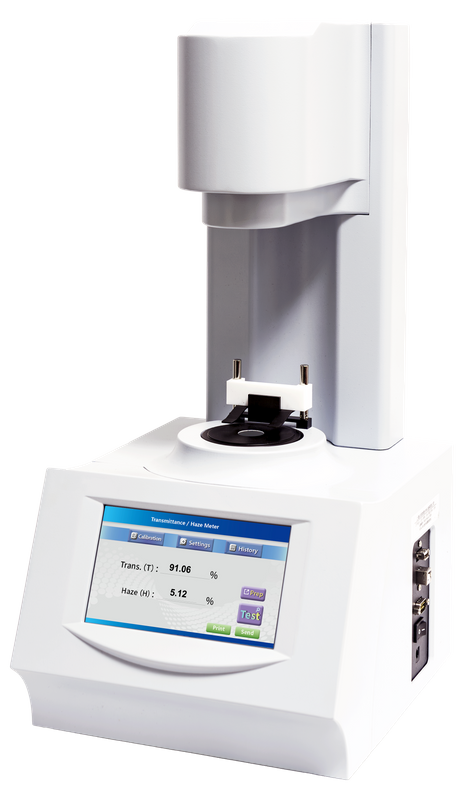

• Smart design with horizontal or vertical set-up.
• Reliable and precise transmittance and haze data.
• The LED light source assures long-term stable results for many years.
Applications
The hazemeter is a precision instrument used to evaluate the optical properties of materials by measuring their light transmittance and scattering characteristics.
- Display manufacturing industry: It is used to measure the transmittance and haze of screen panels, optimizing screen brightness and anti-reflection performance.
- Packaging industry: It is used to detect the transmittance of packaging materials to ensure that they meet the requirements for storage and display.
- Glass quality inspection: It is used to measure the transmittance of glass windows and the haze of lampshades to ensure that they meet the required standards for use.
Specifications
Parameters/Model | SGW-806 |
Illuminant | A light（2856K）、C light（6774k）、D65 light（6500K) |
Light source | LED |
Measuring range | Transmittance: 0-100 % Haze: 0-100% |
Resolution | 0.01%(transmittance); 0.01%(haze) |
Accuracy | Transmittance: ≤±1 %(Standard neutral density filter); Haze: ≤±5 % |
Repeatability | Transmittance: ≤0.1% Haze: ≤0.1 |
Sample window size | 25mm(incident window) 21mm(exit window) |
Display | Large LCD touch screen |
Interface | USB，U disk |
Power supply | 220V±22V，50Hz±1Hz，100w |
Overall dimensions | 641mm×356mm ×436mm |
Weight (Gross) | 10kg |
