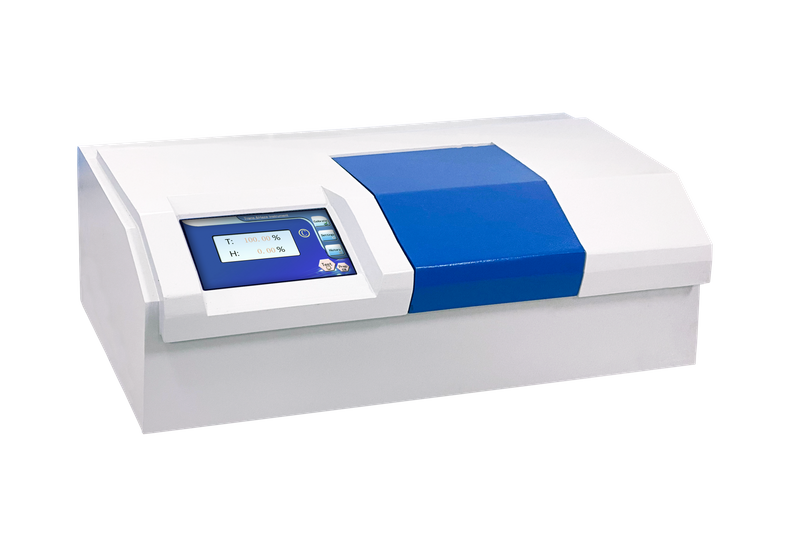

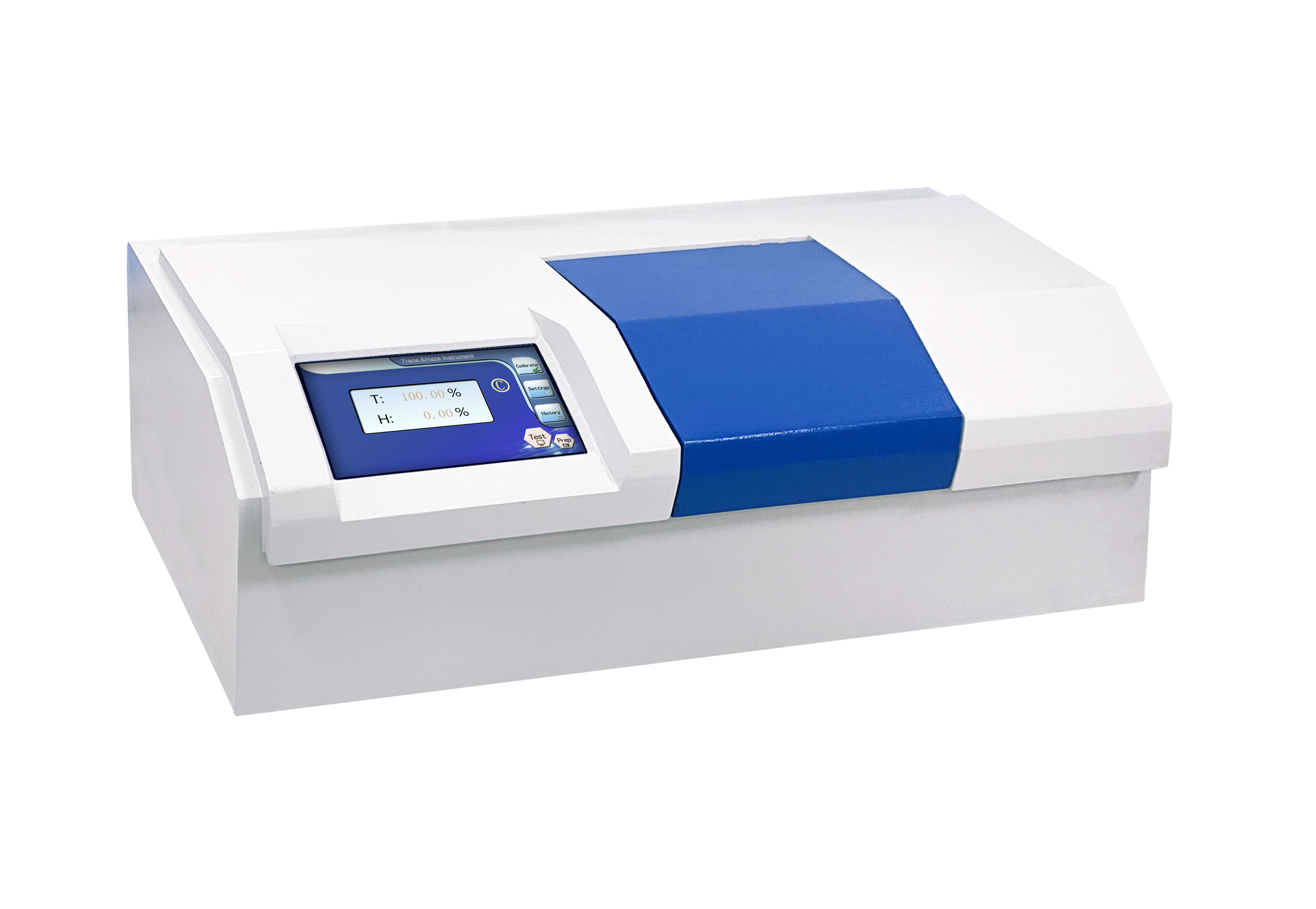

SGW-800 / SGW-800L
NADE
1
CHINA
Product Description
• Meet GB/T2410-2008, ASTM D1003-2007, JIS K7105-81.
• Measurement of optical characteristics of the transparent and translucent planes materials and
plastic membranes.
• Closed measurement compartment is suitable for small samples, reducing the impact of light.
• Standardized operating procedures guides the measurement.
• Color touch screen simplifies operation and improves detection speed.
Applications
The hazemeter is a precision instrument used to evaluate the optical properties of materials by measuring their light transmittance and scattering characteristics.
- Display manufacturing industry: It is used to measure the transmittance and haze of screen panels, optimizing screen brightness and anti-reflection performance.
- Packaging industry: It is used to detect the transmittance of packaging materials to ensure that they meet the requirements for storage and display.
- Glass quality inspection: It is used to measure the transmittance of glass windows and the haze of lampshades to ensure that they meet the required standards for use.
Specifications
Parameters/Model | SGW-810 | SGW-810L |
Illuminant | C light（6774k） | |
Light source | Tungsten halogen lamp | LED |
Measuring range | Transmittance: 0 – 100.00% Haze: 0 – 100.00% | |
Resolution | 0.01%(transmittance); 0.01%(haze) | |
Accuracy | Transmittance:≤±1%(Standard neutral density filter); ≤±2%(Standard Haze slice) Haze: ≤±0.5% | |
Repeatability | Transmittance: ≤0.5% Haze: ≤0.2 | |
Sample window size | Solid standard sample size: 50mm×50mm Tank dimensions: 50mm×50mm×10mm Film sample size: 50mm×50mm | |
Display | 7 inch LCD touch screen | |
Interface | USB，U disk | |
Data storage | 1000 sets | |
Power supply | 220V±22V，50Hz±1 Hz，100w | |
Overall dimensions | 800mm×380mm×490mm | |
Weight (Gross) | 27kg | |
