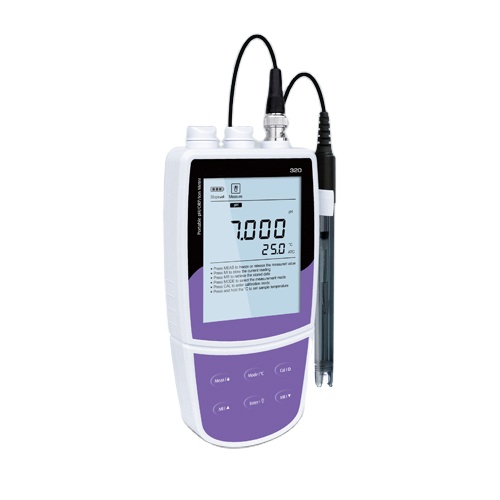

Bante320 Portable pH/Ion Meter

PH Range:-2.000 to 20.000pH
pH Resolution:Resolution 0.001, 0.01, 0.1pH, selectable
pH Accuracy:±0.002pH
ORP Range:±1999.9mV
Availability:
  • Bante320
  • NADE
  • 1
  • 1 year
  • China

Product Description

Multiparameter portable ion meter, 2 to 5 points calibration, selectable ion concentration units. The meter is suitable for measuring the pH, mV and ion concentration, accuracy: 0.5% F.S.

Ion Mode:

• Multiparameter portable ion meter is equipped with a backlit LCD display.
• 2 to 5 points calibration, including the 8 concentration points can be selected.
• Direct ion concentration readout simplifies the measurement process.
• Automatic electrode diagnosis shows the calibration points and slopes.
• Selectable concentration units (ppm, mg/L, mol/L) and ionic valency.


pH Mode:

• 1 to 5 points calibration with automatic recognition for USA, NIST and DIN buffers.
• Automatic electrode diagnosis shows the pH slope and offset.
ORP Mode:
• 1 point offset calibration allows adjusting the displayed value to a known standard.
• Relative and absolute millivolt modes ensure the reliable ORP measurements.



Feature

• Automatic temperature compensation ensures accurate readings over the entire range.
• Auto-Read function senses and locks the measurement endpoint.
• Calibration due alarm prompts user to calibrate the meter regularly.
• Auto-Power Off effectively conserves battery life.
•Setup menu allows setting the number of calibration points, stability criteria, temperature unit, date and time, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Expanded memory stores or recalls up to 500 data sets.
• USB communication interface is easy to transfer data to PC.
• Multi-mode power scheme (batteries, power adapter and USB port) ensures that using the meter smoothly.

Specification

Model

Bante320

  pH


  Range

-2.000 to 20.000pH

  Resolution

0.001, 0.01, 0.1pH, selectable

  Accuracy

±0.002pH

  Calibration Points

1 to 5 points

  pH Buffer Options

USA, NIST, DIN, 2 custom buffers

  ORP


  Range

±1999.9mV

  Resolution

0.1, 1mV, selectable

  Accuracy

±0.2mV

  Calibration Points

1 point

  Measurement Modes

Relative or absolute mV

  Ion Concentration


  Range

0.001 to 19999 (deponding on the range of ISE)

  Resolution

0.001, 0.01, 0.1, 1

  Accuracy

±0.5% F.S. (monovalent), ±1% F.S. (divalent)

  Calibration Points

2 to 5 points

  Calibration Solutions

0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000

  Measurement Units

ppm, mg/L, mol/L, mmol/L

  Temperature


  Range

0 to 105°C/32 to 221°F

  Resolution

0.1°C/0.1°F

  Accuracy

±0.5°C/±0.9°F

  Offset Calibration

1 point

  Calibration Range

Reading ±10°C

  General Specifications


  Temperature Compensation

0 to 100°C/32 to 212°F, manual or automatic

  Stability Criteria

Low or high

  Calibration Due Alarm

1 to 31 days or off

  Auto-Power Off

10, 20 or 30 minutes after last key pressed

  Memory

Stores up to 500 data sets

  Output

USB communication interface

  Connector

BNC, 3.5mm jack socket

  Display

Custom LCD (80×60mm)

  Power

3×1.5V AA batteries or DC5V power adapter

  Battery Life

Approximately 150 hours (turn off the backlight)

  Dimensions

170(L)×85(W)×30(H)mm

  Weight

300g

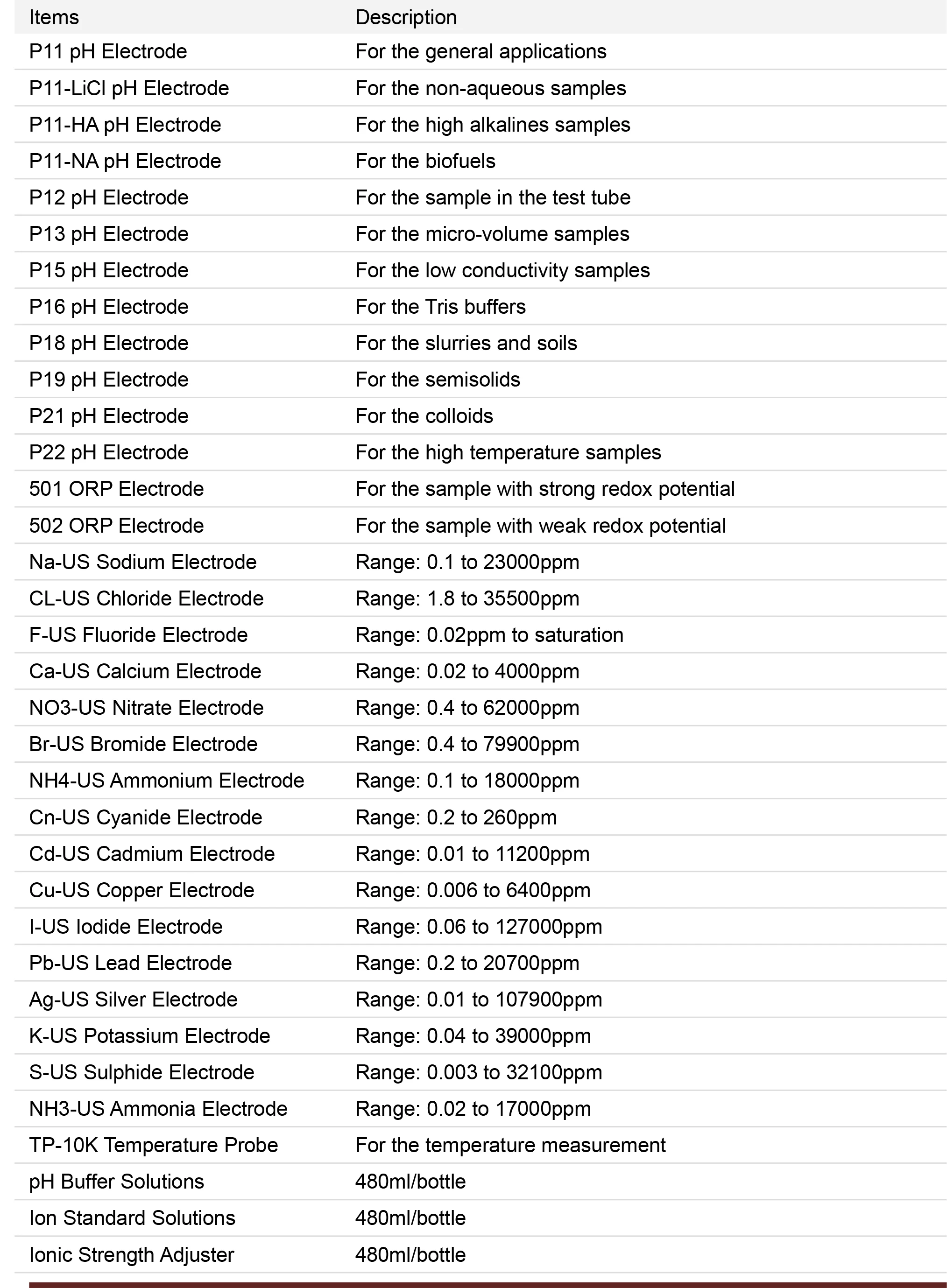

Optional Accessories
