BM-96-BAN Automatic Whole Box Capper/Decapper

Capping/decapping motor speed: 40R/min
Positioning sensor: high-precision resistive sensor
Positioning error: ±0.05mm positioning adjustment
Display accuracy: 0.025mm

Availability:
  • BM-96-BAN

  • AC220V, 50Hz

  • 1

  • 1 year

  • China

Product Description

pro-openerAllpro-openerAll_1

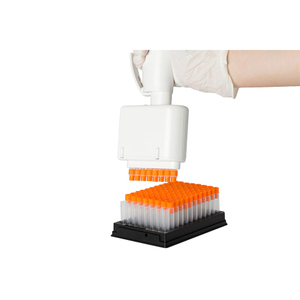

* Cap/Decap the whole box of cryopreservation tubes efficiently and quickly. The whole process (including the loading process) takes only 30 seconds (more than 2 minutes for semi-automatic handheld devices), which is convenient for liquid transfer of the whole box of biological samples and reduces the sample temperature rise and air exposure time caused by opening and closing the cap.
* Ensure that any single tube cap can be completely locked (closed) or left from the tube body (opened).
* Automatically detect the state of tube cap to avoid misoperation and capping / decapping action.
* It is applicable to the whole series of cryopreservation tube boxed products, and can be customized according to the needs of users to adapt to the cryopreservation tubes of other brand.
* The standard RS232 communication interface can be integrated into the automatic line as a workstation for remote automatic/manual control.
* Ergonomic design, simple operation, high ease of use, one key switch, the whole box of frozen storage tube.
* A variety of lighting design is convenient to monitor the working state of the equipment and the state of the cryopreservation tube.
* Perfect substitute for other similar products, high cost performance.

Parameters

Model

BM-96-BAN

Power

whole machine

250W


cover opening

execution system

150W


lifting system

40W

Capping/decapping motor speed

40R / min

Positioning sensor

high-precision resistive sensor

Display accuracy

0.025mm

Positioning error

± 0.05mm positioning adjustment

Emergency stop switch

Equipped,  can stop in case of emergency

RS232 communication interface

Equipped, can communicate with third-party control equipment to realize joint control.

Overall dimension

200mm*330mm*380mm

Power supply voltage

AC220V, 50Hz

Ambient temperature

room temperature

Relative humidity

< 85% H


Specification

Cat.No.

Name

Spec

BM-96-BAN

Automatic Capper/Decapper

(96-well)

Desktop batch automatic equipment,

can open or cover the 96-well

cryopreservation tube cap simultaneously

BM-48-BAN

Automatic Capper/Decapper

(48-well)

Desktop batch automatic equipment,

can open or cover the 48-well

cryopreservation tube cap simultaneously

BM-24-BAN

Automatic Capper/Decapper

(24-well)

Desktop batch automatic equipment,

can open or cover the 24-well

cryopreservation tube cap simultaneously
