Important notice:
this is only a replace working head for our homogenizer, it can not be used seperately. If you need the whole machine to handle sample, pls inquire us for homogenizer machine.

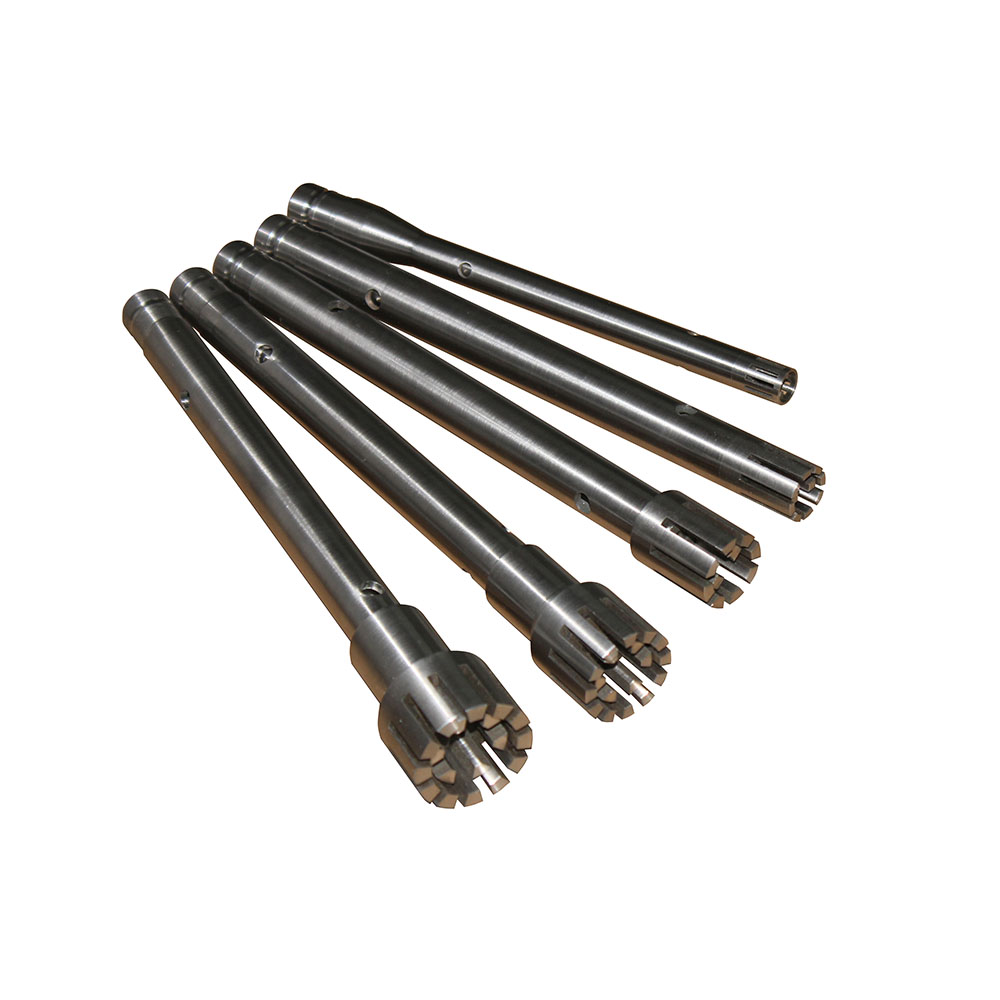

Nade 12G work stator for Homogenizer AD500S-H
Working head | 12G | 18G | 24G | 30G | 36G |
Mixing capacity (H2O, ml) | 30~800 | 50~1500 | 80~5000 | 100~8000 | 150~13000 |
Max viscosity(mPa.s) | 1000 | 2000 | 5000 | 6000 | 7000 |
Max. rotation speed(m/s) | 11 | 15 | 18 | 22 | 26 |
Min./max.immersion depth(mm) | 35/150 | 45/160 | 50/165 | 60/170 | 65/175 |
Size of stator(mm) | Ø12 | Ø18 | Ø24 | Ø30 | Ø36 |
Legth(mm) | 215 | 222 | 225 | 235 | 238 |
Max temperature(℃) | 120 | 120 | 120 | 120 | 120 |
Working head material | SS316L | SS316L | SS316L | SS316L | SS316L |
