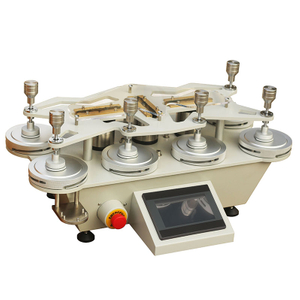

YG401-9 Martindale Abrasion Tester

Product name: Martindale Abrasion Tester
The frictional head number: 9 position
The sample holder diameter: Dia 38mm and 90mm
Diameter of grinding table: Dia 120mm
Availability:
  • YG401-9

  • NADE

  • 220V+5%, 50Hz

  • 1

  • 1 year

  • China

Product Description

YG401-9

Brief introduction

The apparatus for the determination of woven and Knitted Fabrics Abrasion resistant performance, and can also be suitable for no woven fabric. Not suitable for long pile fabric. It can also be used to determine the pilling performance of wool fabrics under slight pressure. Not suitable for wool fabrics thicker than 3mm.

Standard: GB / T4802.2, GB / T21196.1 ~ 4, GB8690, ASTMD4966, ASTMD4970, ISO12945.2


Working principle

1, the circular sample is placed on a grinding head, under specified pressure, and fixed to the grinding table standard wool fabric abrasive planar contact, according to Li Sharu ( LISSAJOUS ) trajectories ( two mutually perpendicular harmonic motion synthesis track ) for multiple directions of translational friction, until the sample grinding to the specified number, apparatus automatically stop running

2, the movement trajectories were characterized by a specimen can be multi directional translational motion, so that specimen subjected to uniform friction.

3, the apparatus can also be used for reciprocating friction testing

■When the intermediate guide post arranged on the eccentric wheel 3, the other two guide posts arranged on the eccentric wheel 1, as the fabric warp pilling test;

■When the intermediate guide post arranged on the eccentric wheel 1, the other two guide posts arranged on the eccentric wheel 3, as fabric weft pilling test.


Structure characteristics of the machine

1, the machine is composed of the main body of the instrument and electrical two parts, is a desktop structure. Metal component is the main body of the apparatus, it through the electronic control system for experimental work. Its action is driven by a motor, and the grinding head is driven by a reducer, a guide plate, etc., and the trajectory of the grinding head movement is similar to the actual wear process of the fabric.

2, when the preset number is complete, apparatus for automatic shutdown.

3, man-machine interface, simple and convenient operation, direct display


Specification

Model

YG401-6/YG401-9

The frictional head number

6 position/9 position

The sample holder diameter

Φ 38mm and Φ90mm

Diameter of grinding table

Φ120mm

Diameter 38mm sample holder and a guide rod, a total weight

( 198 + 2) g

Diameter 90mm sample holder and a guide rod, a total weight

( 198 + 2) g

Diameter 90mm sample holder and Load block, a total weight

( 415 + 2) g

Counter weight

395g + 2g, 594g + 2g

Load block and sample clamp assembly for total quality:

Large ( 795 + 7) g is applied to the specimen nominal pressure of 12 kPa

Small ( 595 + 7) g is applied to the specimen nominal pressure of 9 kPa

Counting range

preset count 1 ~ 990000 times

Pilot speed (speed of grinding head )

47.5 + 2.5r.p.m

Power supply

220V + 5%, 50Hz

Motor power

120W

Size

850mm * 600mm * 400mm

Weight

120kg 22kg instrument accessories box
