TN420 Basic Portable Turbidity Meter

Light Source: Tungsten filament lamp, 400 - 600 nm
Accuracy: ± 2% of reading plus stray light
Range: 0 – 1000 NTU (FNU), auto. ranging
Data Storage: N/A
Availability:
Inquire

  • TN420

  • NADE

  • 3.7V rechargeable lithium battery

  • 1

  • 1 year

  • China

Product Description

tn420_2

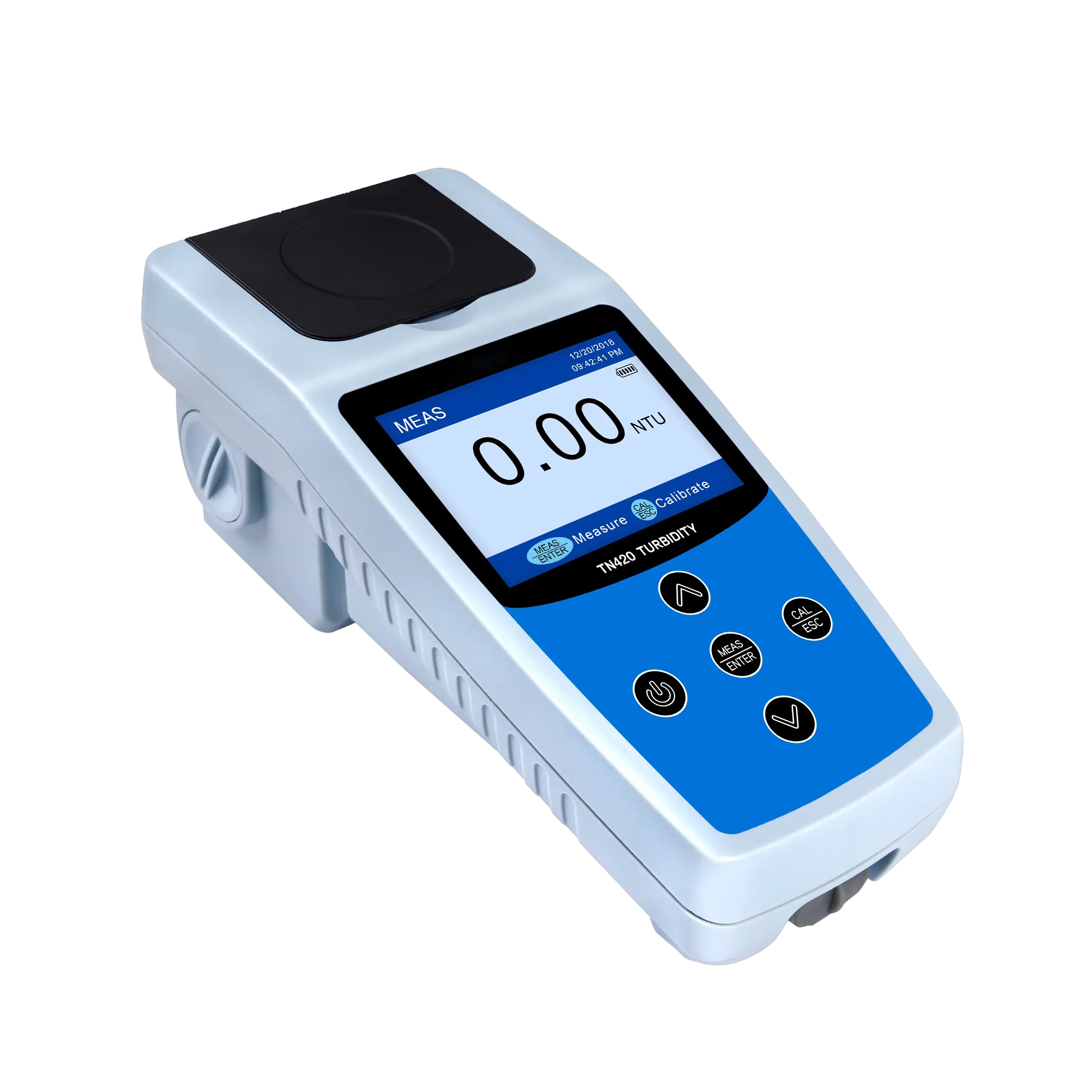

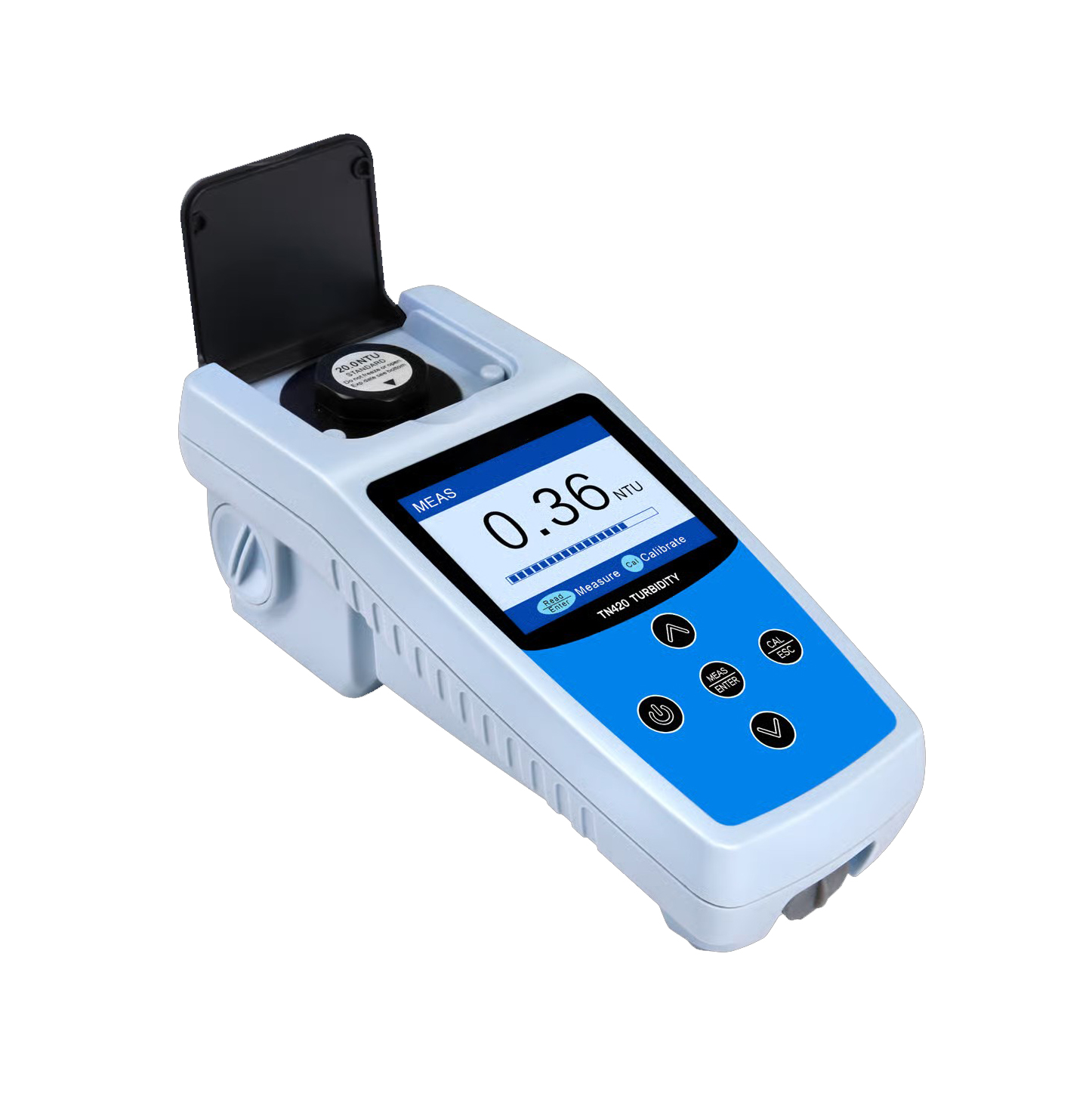

TN420 Portable White Light Turbidity Meter
TN420 is built with a tungsten filament lamp as the light source and uses the 90° scattering method, which is compliant with the
U.S EPA 180.1 method for the determination of turbidity in drinking, ground, surface, and saline waters, domestic and industrial
wastes. The instrument is designed for water quality professionals, offering long-term reliability in high-accuracy turbidity
measurement with an intuitive operating system and simple calibration.



Features

* Premium-quality tungsten filament lamp as the light source, especially ideal for testing low-range water (<10 NTU). The lamp is replaceable.

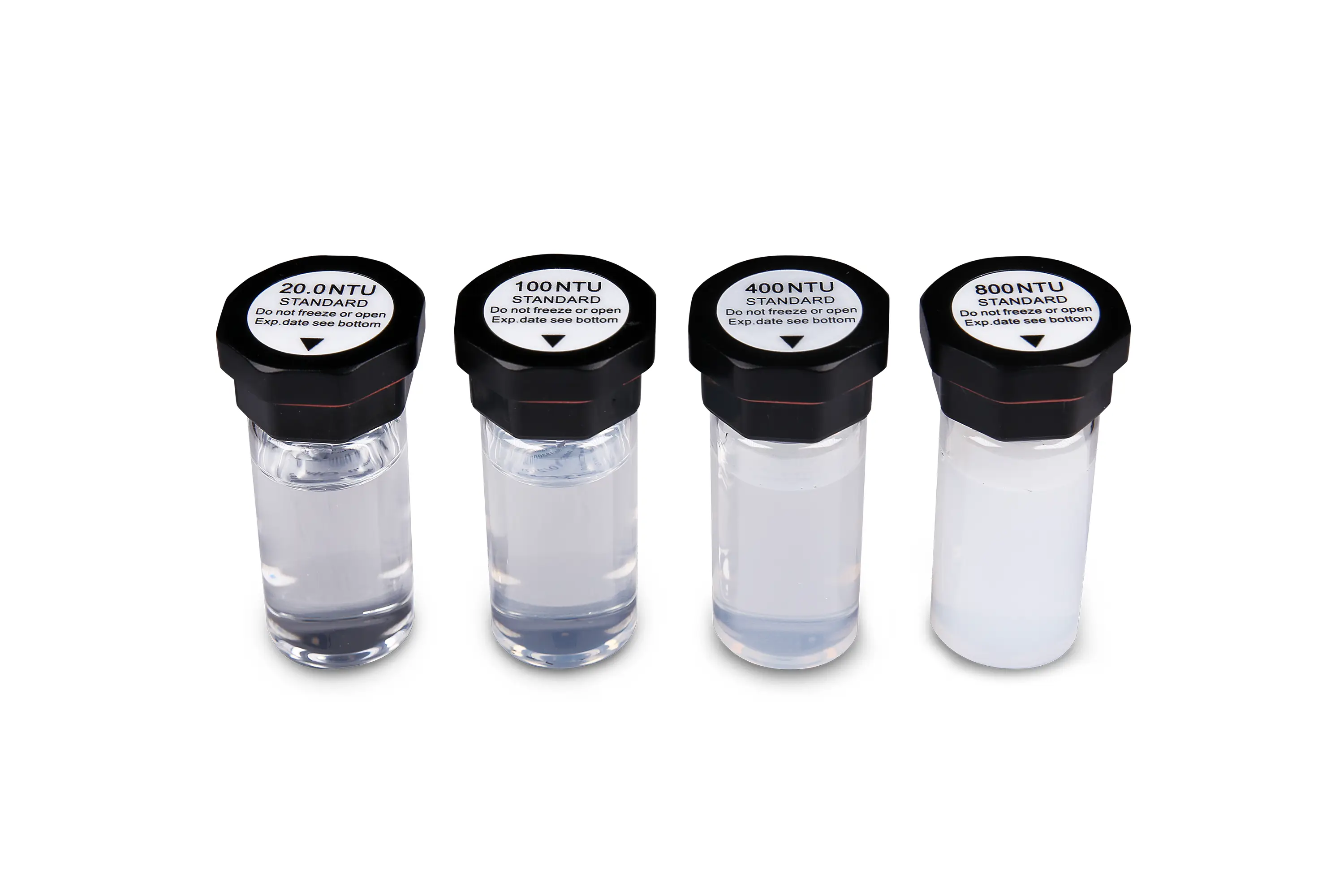

* The kit comes with AMCO high-molecular polymer turbidity standard solutions (0, 20, 100, 400, 800 NTU), which are EPA approved primary standards that are safe, disposable, and have a guaranteed one-year shelf life. It is NIST traceable to particle size/distribution and optical density, and its inherent stability means it does not settle from suspension. Store the standards at room temperature. They must not be frozen.
* The average measurement mode automatically takes multiple consecutive readings and calculates their average value.
* Large TFT color screen with simple operation guide, supporting English, Spanish, and Chinese.
* 3.7V rechargeable lithium battery can supply power for up to 20 hours of continuous measurement. The battery life is 5 times longer compared with other products in the market.

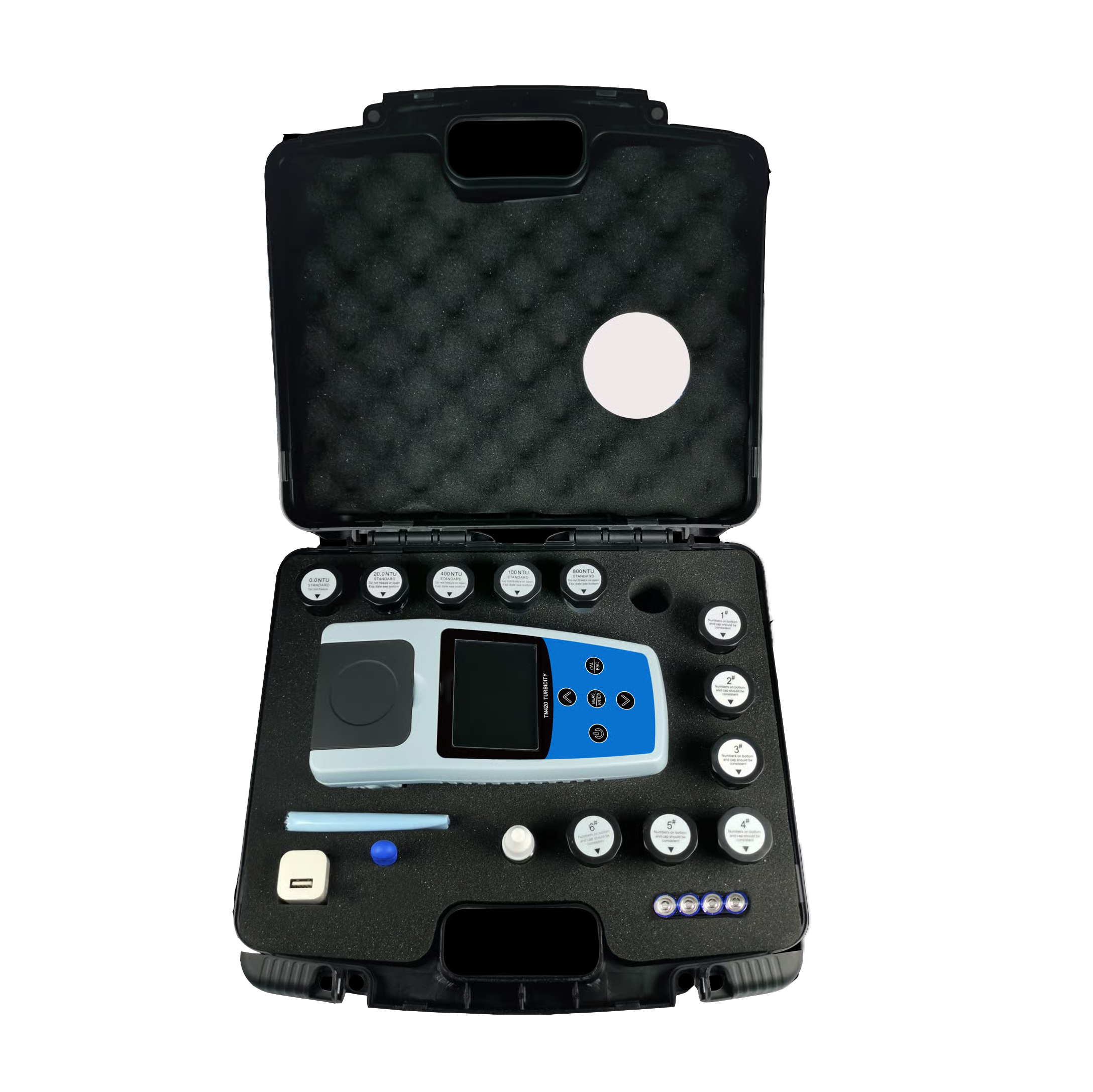

* Everything comes in a rugged carrying case, including AMCO calibration solutions (0, 20, 100, 400, 800 NTU), 6 pieces of sample vials, silicone oil, a microfiber wipe, and a user manual.

Specification

Model

TN500 Premium

TN420 Basic

TN480 Premium

TN400 Basic

Light Source

Tungsten filament lamp, 400 - 600 nm

Infrared LED, 860±30 nm

Regulatory

U.S EPA 180.1 Method

ISO7027 and DIN EN 27027 Method

Certification

CE, RoHS

Range

0 – 1000 NTU (FNU), auto. ranging

Resolution

0.01 NTU (0 – 19.99) / 0.1 NTU (20.0 – 99.9) / 1 NTU (100 – 1000)

Accuracy

± 2% of reading plus stray light

Repeatability

±1% of reading or 0.02 NTU, whichever is greater

Calibration Standards

T500 - 1 AMCO solution kit / Formazin standard solution 0/20/100/400/800 NTU

T200 - 1 AMCO solution kit / Formazin standard solution 0/20/100/400/800 NTU

Detector

Silicon photovoltaic

Measurement Mode

Normal (push to read), TruRead™

Normal (push to read), Average

Normal (push to read), TruRead™

Normal (push to read), Average

0 NTU error range

Yes

N/A

Yes

N/A

Data storage

200 sets

N/A

200 sets

N/A

Data export

USB to PC

N/A

USB to PC

N/A

Calibration record

Date and time

N/A

Date and time

N/A

System language

English/Spanish/Chinese

English

English/Spanish/Chinese

English

Screen

TFT Color Screen

Sample cuvette

φ25×60 mm, 18 mL, high borosilicate glass with lid

Power supply

3.7V rechargeable lithium battery

AA Alkaline battery ×4

Working condition

Temperature: 0-50 ℃; Humidity: 0-90%

Storage condition

Instrument: -40-60 ℃; Calibration solutions: 5-30℃

Enclosure rating

IP67

Dimension & Weight

Instrument: (90×203×60) mm / 385g; Kit: (310×295×110) mm / 1.5 kg

Includes

Meter, calibration solution kit, sample cuvette ×2, microfiber cloth, software, USB cable, power adapter, carrying case, manual

Meter, calibration solution kit, sample cuvette ×2, microfiber cloth, power adapter, carrying case, manual

Meter, calibration solution kit, sample cuvette ×2, microfiber cloth, software, USB cable, power adapter, carrying case, manual

Meter, calibration solution kit, sample cuvette ×2, microfiber cloth, carrying
