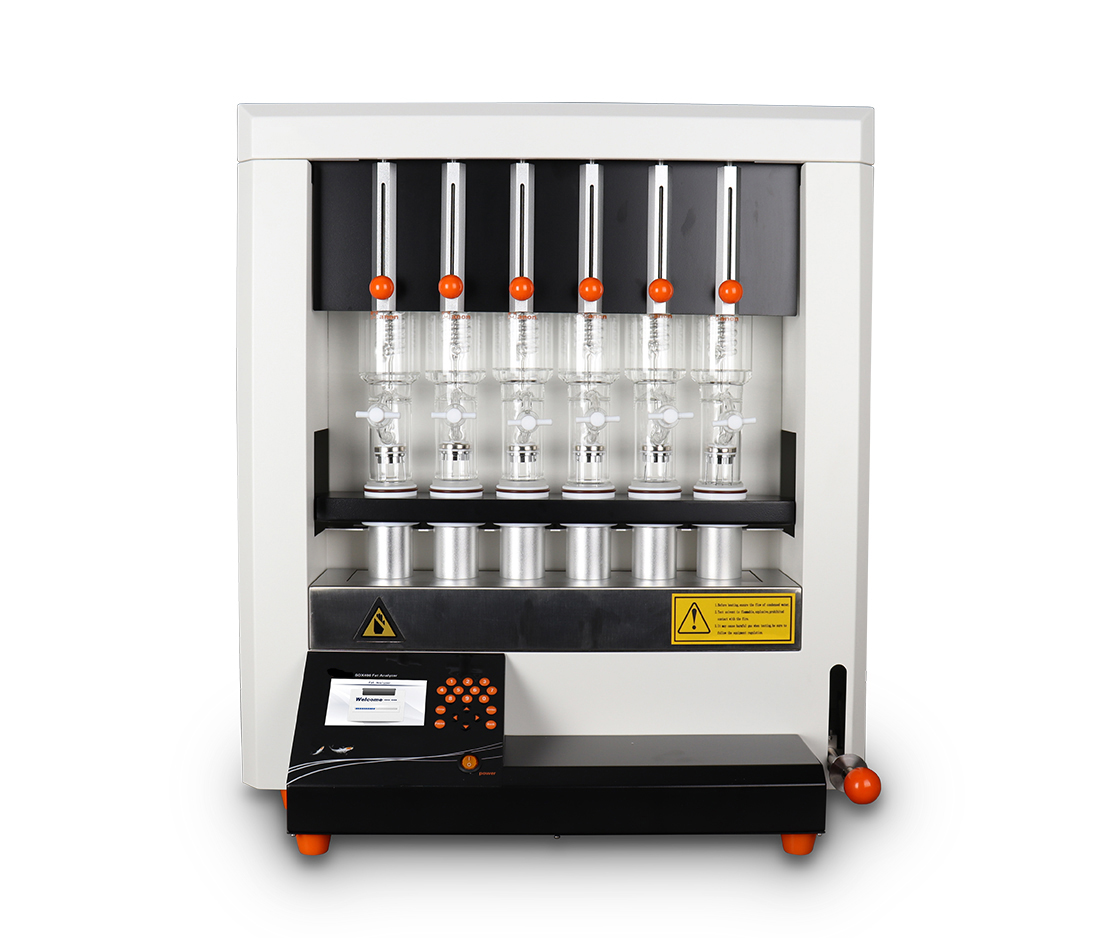

SOX406 Fat Analyzer

Temp range: Room temp +5℃~280℃
Measuring range: 0~100%
Temperature accuracy: ±1℃
Solvent cup volume: 80mL
  • SOX406

  • NADE

  • 220VAC±10%, 50Hz

  • 1

  • 1 year

  • China

Product Description


SOX406 Fat Analyzer is based on the Soxhlet extraction principle and integrates such functions as soaking, extraction, leaching, heating, condensation, and solvent recovery. It features sealed metal bath heating with automatic temperature control, ensuring uniform heating and safe operation; six samples can be tested at the same time, and optimal temperature can be selected according to the difference between reagent boiling point and ambient temperature to achieve quick analysis; reagents can also be recycled to reduce test cost; and soaking, extraction and solvent recovery can be done in one step. Therefore, this device is characterized by reasonable design, stable performance, good reproducibility, high accuracy, easy operation, saving time and effort, and so on.

Main functions&features

1. Integral metal heating, while the scope and high precision of temperature control

2. The electric circuit is isolated from the extraction space, ensuring devices security

3. Over-temperature alarming and timer reminding functions are available

4. The timer circuit is isolated from the extraction space, ensuring device security

5. Triple alarms i.e. sound, light, LCD screen word prompts are available

6. Abundant interface contents give simultaneous display of given temperature, actual temperature, given time, and heating time

7. The lifting connection of linear bearing conduction technique gives smooth and comfortable lifting operation

8. Intelligent man-machine dialogue control system

9. Exclusive air insulation technique leaves the case in room temperature, has thermal insulation and temperature maintenance two functions

       10. 4.3" LCD screen and microcomputer control system are adopted.

- 360 degree all-round safety design

The instrument adopts the design of complete isolation between the circuit and the extraction space, and the air insulation technology effectively improves the thermal insulation characteristics of the machine, to keep the equipment shell at room temperature. Built-in multiple warning function, in case of over-temperature, timeout, etc., it can give an alarm by means of sound, light signal and screen display.

- Integral metal heating

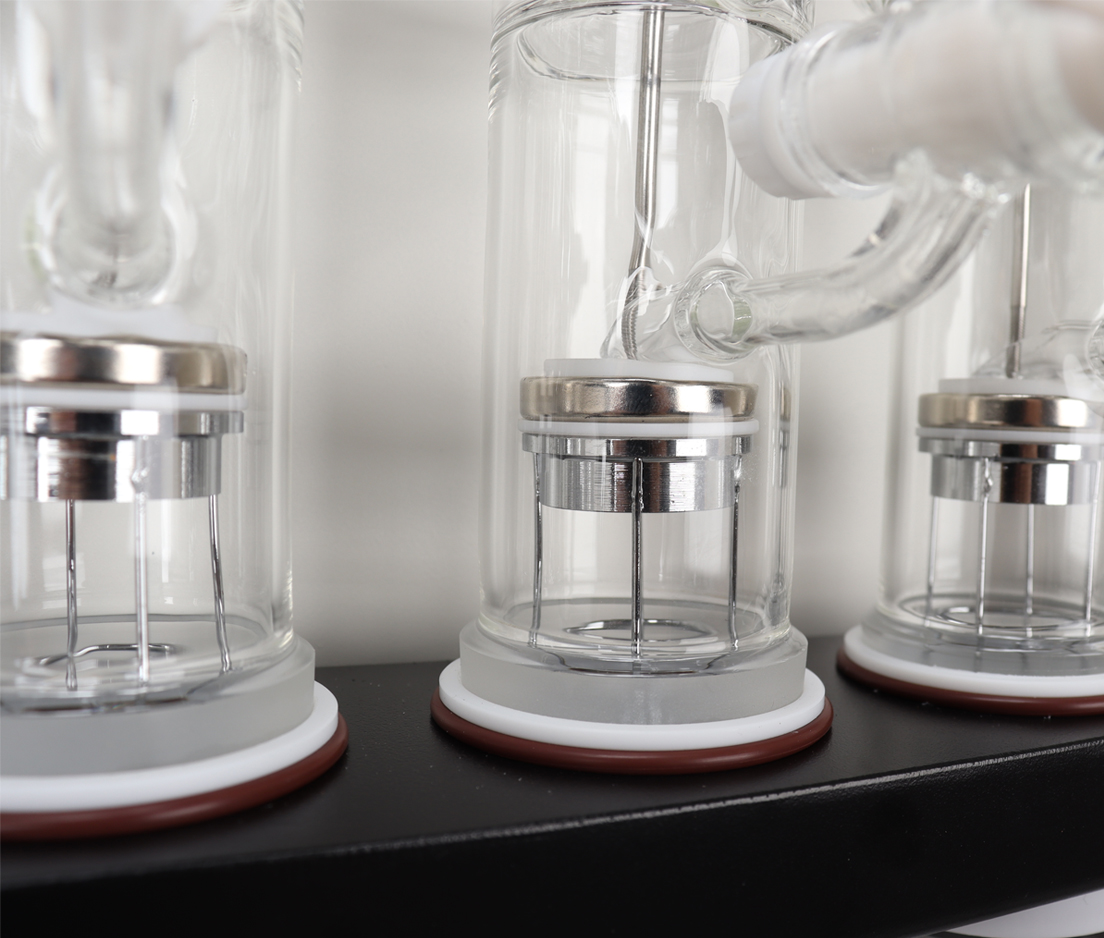

The instrument adopts automatic temperature control and fully sealed metal bath heating method, and can test 6 samples at the same time. The intelligent man-machine dialogue control system can display the set temperature, actual temperature, set time and heating time synchronously through rich interface content. The optimal temperature can be selected according to the difference of the boiling point of the reagent and the natural temperature, so as to achieve the purpose of rapid determination.

- Durable design concept

SOX406 Soxhlet extractor has precise timing reminder function. The specially equipped alarm system will remind users through multiple alarm systems such as voice and LCD text prompts when over temperature occurs. The whole machine adopts unique anti-corrosion technology to effectively avoid the influence of the environment on the machine. The integrated metal bath heating module makes the temperature control range wider and effectively prolongs the life of the heating plate. The built-in professional PID temperature control system can make the temperature control accuracy less than 1℃.

Scope of application

SOX406 Fat Analyzer can quickly separate one substance from solid or semi-solid mixtures, can determine the soluble organic compounds contained in foods, feeds, medicines, soil, sludge, polymers, fiber products, petrochemical products, detergents, rubber, plastics, and other materials.



Temperature range

Room temperature +5℃~280℃

Measuring range


Temperature accuracy



Relative error 1%

Sample weight

0.5~15g (generally 2~5g,depending on sample)

Capacity per batch


Solvent cup volume


Solvent recovery


Shortened extraction time

20% ~80%

Power supply

220VAC±10%, 50Hz

Rated Power




Net Weight
