1 year
Laboratory Thermostatic Devices
other
Nade
HNY-2102C
China
175L
850W
5℃-25℃
two
4°Cto 60°C( refrigeration)
HNY-2102C
0-9999h/min(Any time,continuous duty)
convolution
P.I.D microprocessor chip
forced convection
Product Description

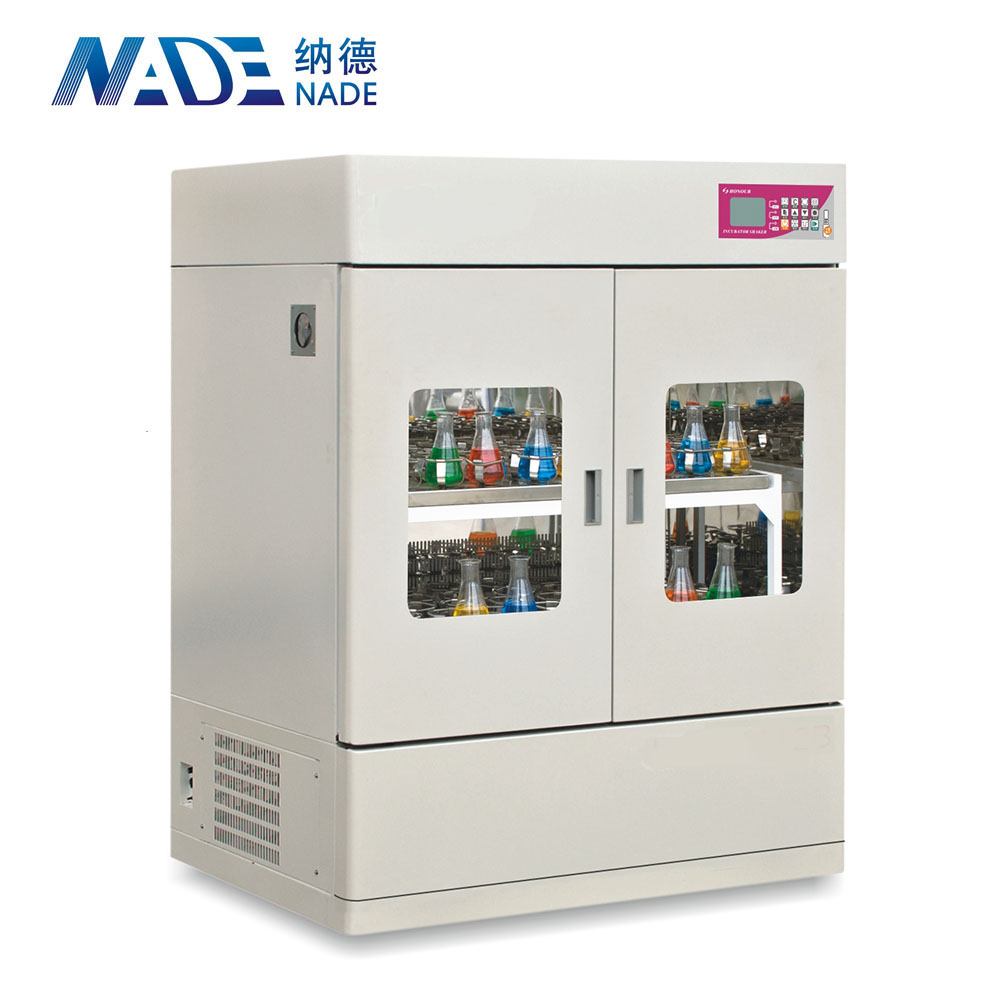

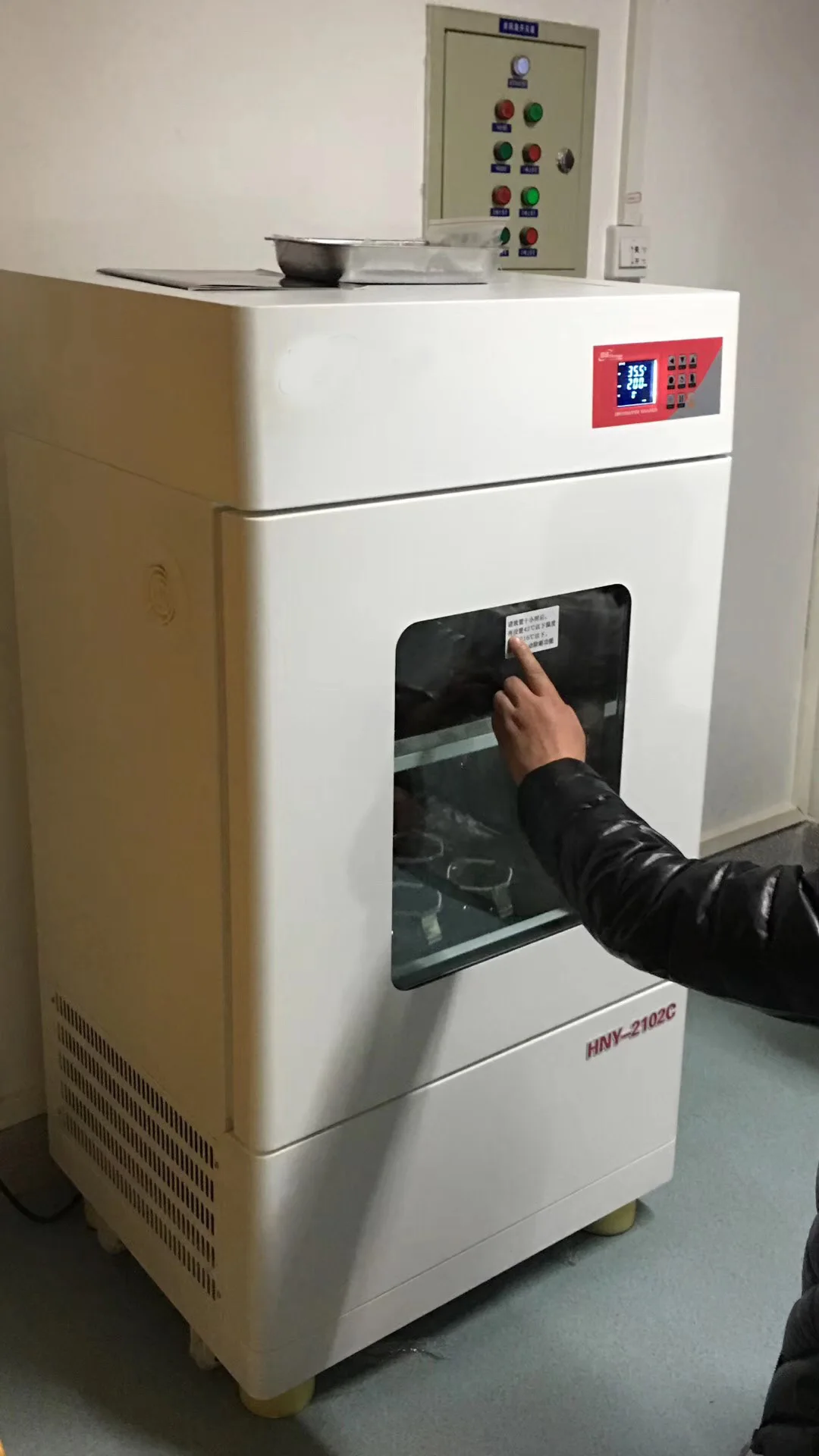

Nade Vertical Constant Temperature Shaker in Laboratory HNY-2102C
1,Advanced USB data automatic record, download and processing system. As well as it has large storage, and automatic recording & saving in the full test processing,
2,The data could be directly downloaded by USB in a minute or automatically downloaded by wireless, without the hassle of moving computers and replacing printing papers.
3, Automatic analyzing, listing table, charting and printing on downloaded dates. Easy replay the data by clicking the mouse; it can trace back to the whole process of experiment in order to optimize the reaction conditions and choose the test method to confirm the experiment process.
4, high-precision speed control: PID feedback control, the motor speed is stable and accurate, the accuracy of ± 1RPM
5, The ultra low speed starts, startup speed is adjustable. If the speed out of control, it will be locked automatically.
6,Adjustable closed cycle heating & cooling systems are controlled electronically. Both consistent temperature and temperature evenness are ensured by the mute fan, forced convection and the duct design.
7, The mode of cooling is automatic which can automatically switch opening or closing of the refrigeration system according to the changes of environment temperature. It is without manual operation.
8,The technology of smart refrigeration frost-free operation can make the equipment stably operate in low temperature for a long time and; and it has automatic defrost function.
Note: stackable incubator shaker would be optional high temperature incubator shaker (temperature up to 80 ℃); Light incubator shaker; Humidifying incubator shaker .
| model | HNY-2102C |
| specifications | |
| control model | P.I.D microprocessor chip |
| convection model | forced convection |
| shake model | convolution |
| display | LCD liquid-crystal display |
| Drive mode | Multidimensional drive |
| system of USB data download and analysis | yes |
| control system | 30segments temperature, speed, time, control system |
| cyclotron frequency range(rpm/min) | 0;20-300(To do static culture) |
| cyclotron frequency sensitivity(rpm) | ±1 |
| Orbit Diameter(mm) | Φ26 |
| maximum capacity | 100ML×60 OR 250ML×38 OR 500ML×22 OR 1000ML×16 |
| standard capacity | 250ml×24 |
| size of platform(mm) | 500×360 |
| timing range(h) | 0-9999h/min(Any time,continuous duty) |
| temperature range(℃) | 4°Cto 60°C(refrigeration) |
| temperature sensitivity(℃) | ±0.1 |
| temperature uniformity(℃) | ≤0.3(37℃) |
| temperature uniformity(℃) | ≤0.1(37℃) |
| number of platform | two |
| outside dimension(W*D*H)(mm) | 700×580×1280 |
| capacity(L) | 175 |
| power(W) | 850 |
| power supply | AC220±10%50-60HZ |
| outside temperature(℃) | 5-25 |
| Net weight(kg) | 180 |
| Gross weight(kg) | 210 |
| other functions | ultra-low speed start, adjustable start speed, overspeed auto-prtection, watch dog timer, parameters Storage, encryption parameters, electricity incoming recovery, refrigeration unit overload protection, sound and light alarm when upper and lower overtemperature, automatically stop when opening the door (optional), function of lighting and UV disinfection (optional) |
